CIDAN FUTURA 30
Have one to sell?
ConditionUsed
1 available

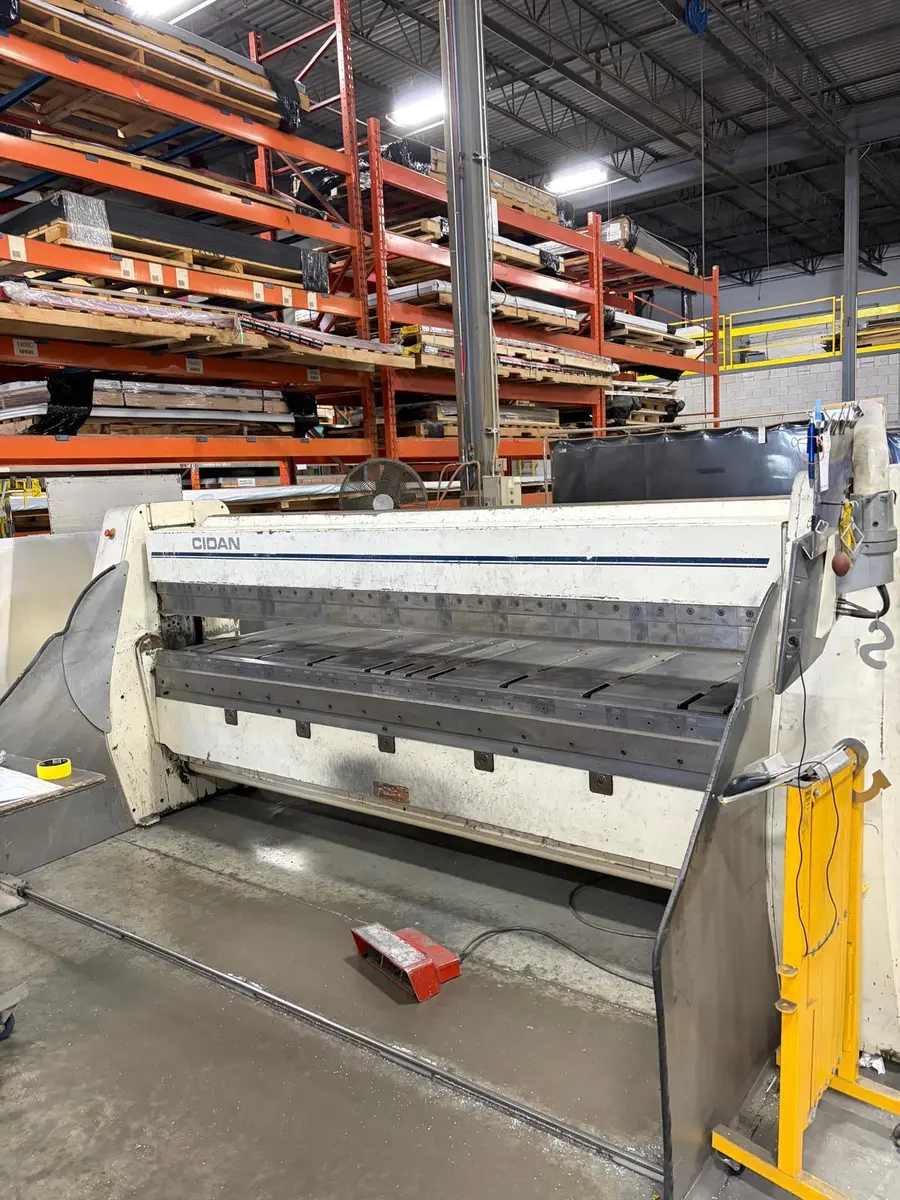

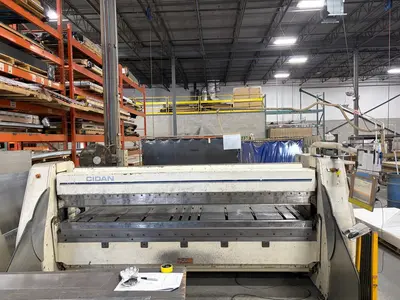

Cidan Futura 30 Combi CNC folder
Year: 2009

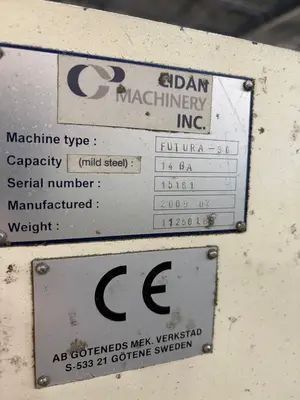

Sn: 15161
Comes with transformer 575V (in) step down 400V (out)
CNC control: Prolink program
Mechanical crowning system (deflection compensation)
Automatic L- shaped back gauge
Rotating upper beam – COMBI MULTIFOLD type
Segment tools for lower and folding beams
High precision and repeatability
Table height adjustment: 0–1.5" (approximately)
Cidan Futura 30 Combi CNC folder
Year: 2009
Sn: 15161
Comes with transformer 575V (in) step down 400V (out)
CNC control: Prolink program
Mechanical crowning system (deflection compensation)
Automatic L- shaped back gauge
Rotating upper beam – COMBI MULTIFOLD type
Segment tools for lower and folding beams
High precision and repeatability
Table height adjustment: 0–1.5" (approximately)
Imperial
| Max Length | 10ft / 3050mm |
| Max Thickness | 14 Ga MS / 12 Ga Al / 16 Ga SS |
| Opening Height | 195mm / 7.7" |
| Motor Power (Z axis - Clamping Beam) | 2.2 kW |
| Transmission System | all-electric, multi-motor mechanical transmission system |
| Clamping Speed | TBA |
| Folding Angle | 0 |
| Motor Power (Y axis - Folding Beam) | 1.5 kW |
| Folding Speed | Variable speed adjustments |
| Folding Beam Adjustment Height (A1,A2) | 0-12mm |
| A1A2 Adjustment Control | Manual |
| Backgauge Length | L-Shaped (tba) |
| Backgauge Movement Speed | TBA |
| Motor Power (X axis Backgauge) | 1 kW |
| Positioning Repeatability (X axis) | ± 0.1 mm (± 0.004 inches) |
| Combi Upper Beam | YES |
| Dimensions | 161" L x 92" W x 73" H (approx) |
| Weight | 4650 kg |
