| Bending Length | 122" | 122" |
| Type | HYD | HYD |
| Max Tonnage | 193UST | 193UST |
| # of Axis | 5 axis (Y1,Y2,X,R,C) | 5 axis (Y1,Y2,X,R,C) |
| Free Down Speed | 7.1in/sec | 7.1in/sec |
| Bending Speed | .394in/sec | .394in/sec |
| Return Speed | 7.5in/sec | 7.5in/sec |
| Stroke | 11" | 11" |
| Backguage Stroke (X) | 30" | 30" |
| Backguage Stroke (R) | 9.5" | 9.5" |
| Distance Between Housings | 102" | 102" |
| Crowning | CNC controlled | CNC controlled |
| Throat Depth | 16.1" | 16.1" |
| Daylight | 22" | 22" |

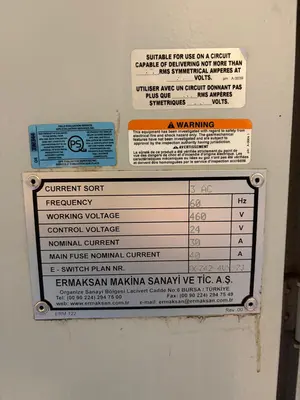

| Voltage | 460V/3ph/60hz | 460V/3ph/60hz |
| Control | CNC (DELEM 66T) | CNC (DELEM 66T) |
| Dimensions | 167L x 85W x 110H | 167L x 85W x 110H |
| Weight | 21,200lbs | 21,200lbs |
