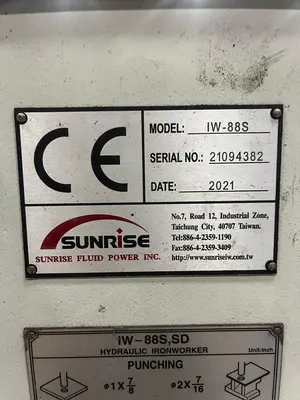

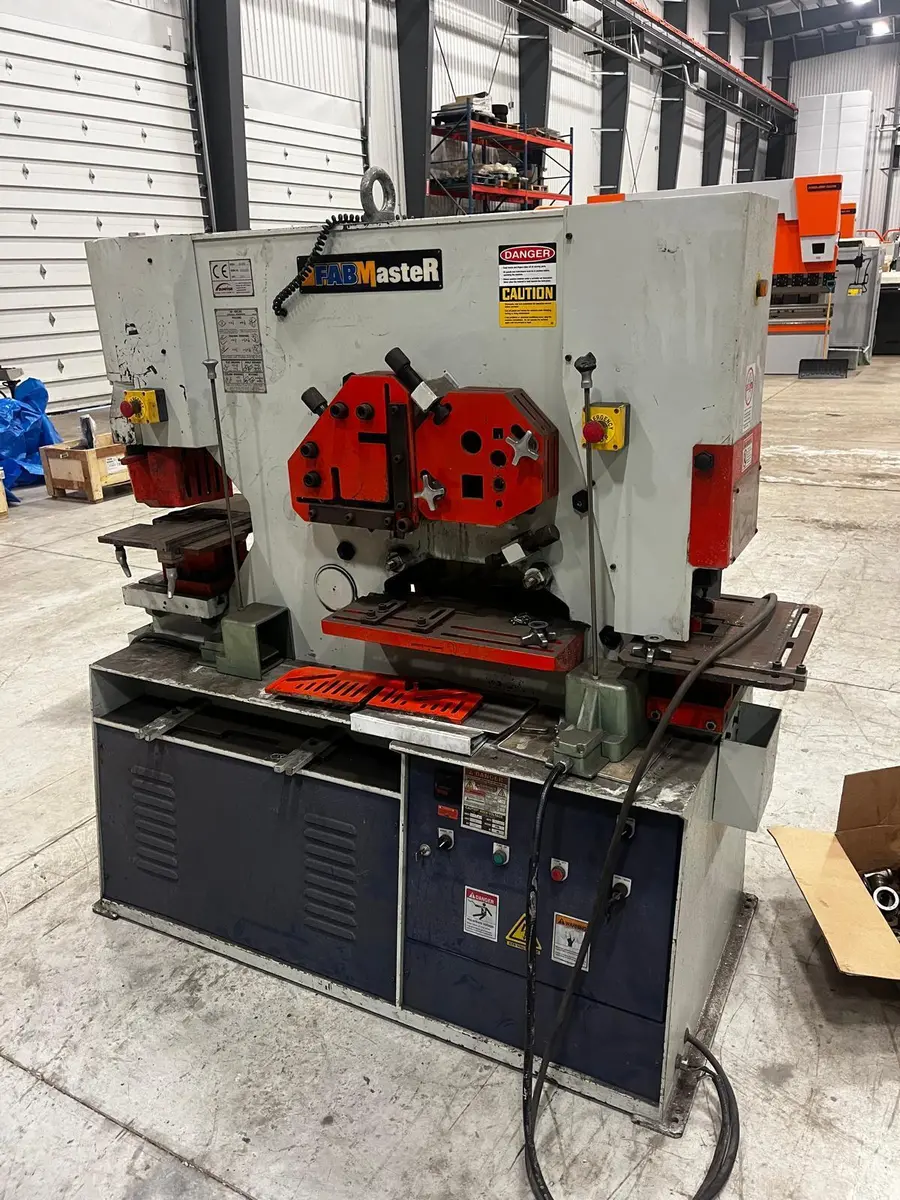

Used 2021 FABMASTER IW-88S | Ironworker Machines

Description

Features 'S' Range
Two-pedal operation allows two people to work machine to greatly speed up production
Five work stations, including notcher
Punching capacity up to 50mm standard.
Large punch table with multi-purpose bolster, featuring a removable block for channel and beam flange punching
Punch, shear and notch table fitted with stops and guides as standard
Adjustable stroke for faster punching
Power inching for easy job set up
Curved shear blade for minimal job distortion
Most cutting blades are four-sided for long life
Mitre cutting of angle iron
Adjustable length stop with One-touch electronic back gauge for greater efficiency in repetitious work
Magnetic base halogen lamp
All work stations are guarded
Fully-filtered hydraulic system

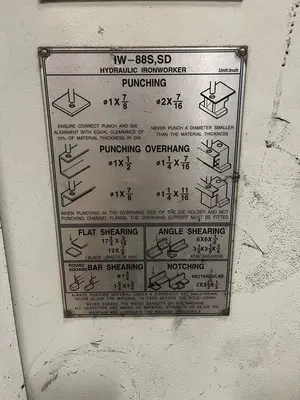

MODEL:IW-80S
PUNCHING
PUNCHING PRESSURE:80T
PUNCHING CAPACITY
(Diameter x Thickness):ø26 x 22mm / ø50 x 12mm
THROAT DEPTH: 310mm
MAXIMUM STROKE LENGTH:100mm
CYCLE/Min (15mm Stroke):29

FLAT BAR SHEARING
FLAT BAR SHEAR (Width x Thickness):460 x 15mm / 300 x 20mm
BLADE LENGTH:465mm

ANGLE SHEARING
AT 90º SHEARING:152x152x13mm
AT 45º SHEARING:80x80x10mm

BAR SHEARING
ROUND BAR SHEAR:ø45
SQUARE BAR SHEAR:45x45mm

NOTCHING
RECTANGLE NOTCHER:50.8x90x12mm
MOTOR:10HP
VOLTAGE:575V
WEIGHT (NETT):2360kg

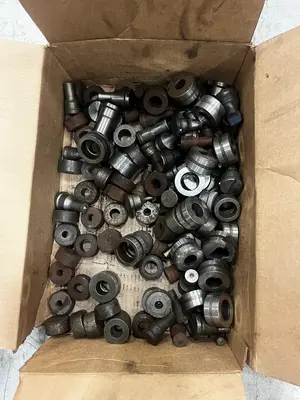

comes with punches and dies for punching station show in picture

PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE
