Used SCOTCHMAN CPO 350 LT PK/PD | Horizontal Band Saws
Have one to sell?
ConditionUsed
1 available

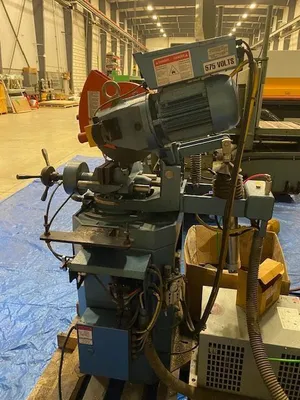

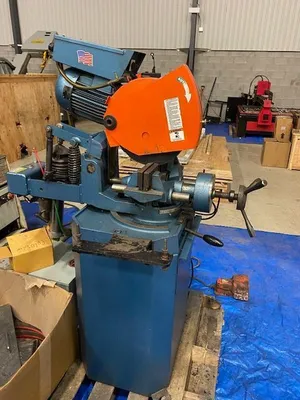

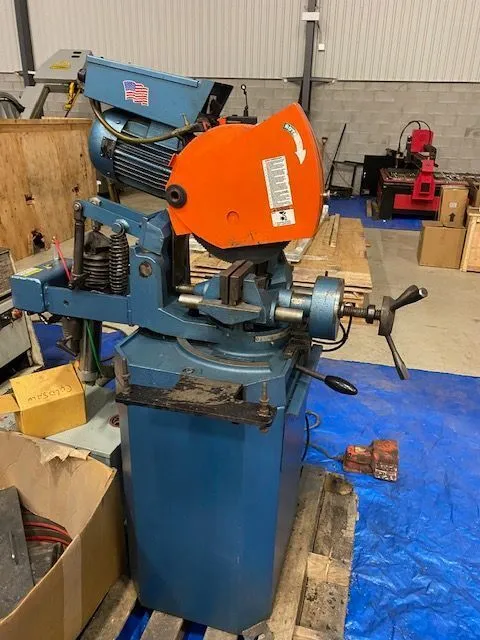

The Scotchman CPO 350 LT PK/PD, semi-automatic circular cold saw has a pneumatic power down feed with electric valves and has mitering capabilities of up to 135 degrees; 45 degrees to the right and 90 degrees to the left. This 350 mm precision features double clamping and self-centering vise for maximum material hold.
Featuring a double reduction gearbox and a two-speed motor LT 22/44 rpm, which utilizes up to a 350mm diameter blade giving it a 4-7/8" OD round capacity.
This semi-automatic circular cold saw features electric controls, electric valves, and an electric remote foot pedal.
Standard Features
• Semi-Automatic Cycle
• Air Operated Power Double Self-Centering Vise Assures Burr-Free Cuts=
• Pneumatic Power Down Feed with Electric Controls
• Emergency Stop Button
• Miter Capabilities 45 degrees Left and 45 degrees Right
• Miter Locking Devise: Quick, Accurate Setting-Stops at 45 degrees Left, Straight 90 Degrees, and 45 Degrees Right
• Capable of Slotting
• Two Cutting Speeds LT 22/44 rpm
• Double Reduction, Hardened and Ground Worm and Wheel Gear Box
• Worm Wheel of Top Quality Bronze
• Chip Drawer7 Gallon Coolant Tank with Pump
• One 12-1/2" Diameter (315 mm) HSS Blade
• 575V/3ph/60HZ

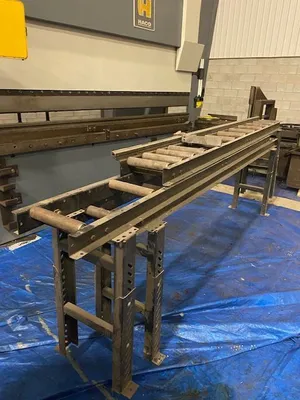

COMES WITH 3 x INFEED AND OUTFEED CONVEYORS - 10FT LONG
TUBING (90 degree)
Round: 4-1/2" (114 mm)
Square: 4-1/4" x 4-1/4" (108 x 108 mm)
Rectangle: 5-1/2" x 4" (140 x 102 mm)
SOLID (90 degree)
Round: 2" (51 mm)
Square: 2" x 2" (51 x 51 mm)
TUBING (45 degree)
Round: 4" (102 mm)
Square: 4" x 4" (102 x 102 mm)
Rectangle: 4" x 4" (102 x 102 mm)
SOLID (45 degree)
Round: 1-3/4" (44 mm)
Square: 1-3/4" x 1-3/4" (44 x 44 mm)
Maximum diameter blade: 350mm
Arbor bore: 1-9/16
Pin Spacing: 4/12/64
Width: 21-7/8"
Depth: 43-1/2"
Height not including handle: 56-1/4"
Height from floor to vise: 37-7/16"
Weight: 760lbs
3 x infeed / outfeed conveyors: 10ft long
