Sold

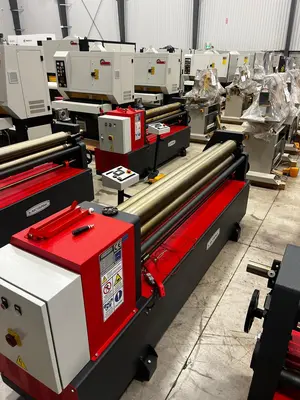

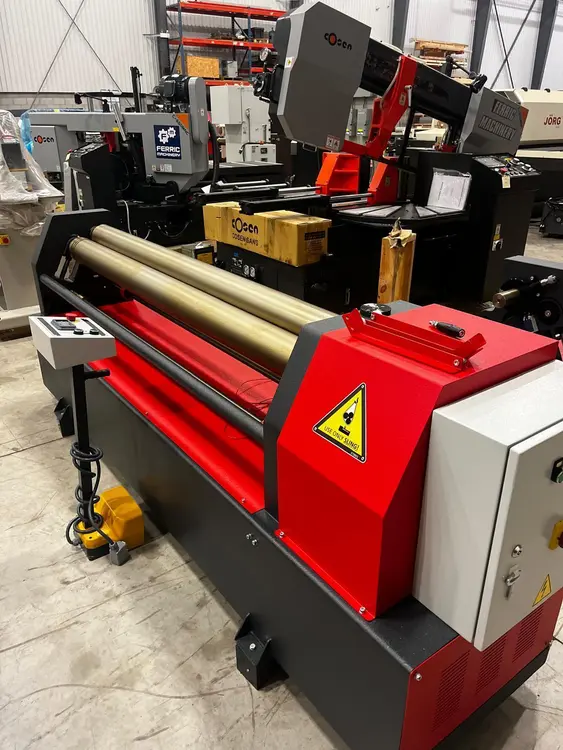

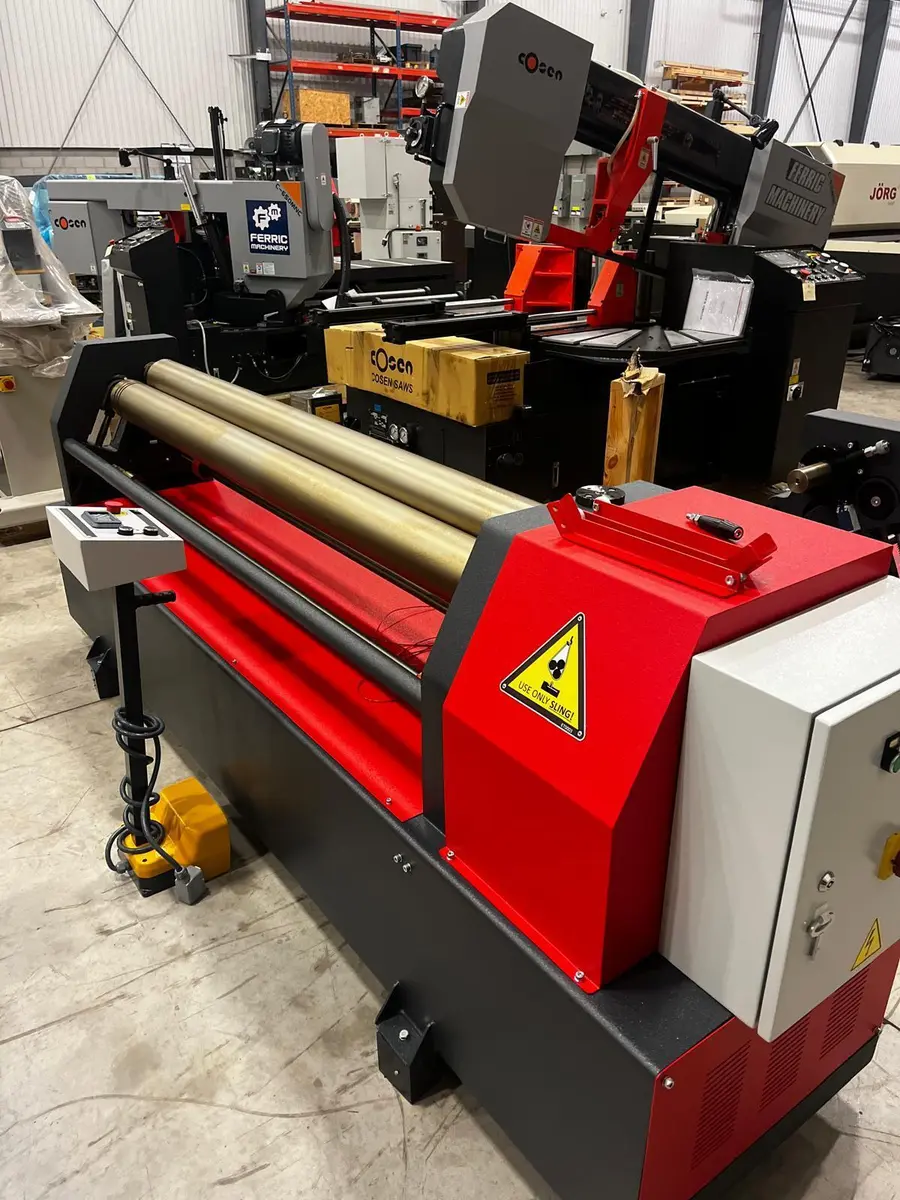

AKYAPAK ASM 20-4 (6.5ft x 5/32")

Plate Rolling Machines
Manufacturer:
AKYAPAK
Model:
ASM-S 140-20/4
Condition:
New - In-Stock
The ASM 3 roll plate rolling machine is made with a cast iron body. Central rollers are powers. This well built, high performance machine is made in Europe and uses standard quality components found on the market. • Body of cast iron construction • Central rollers powered with electric motor and gear drive • Cone bending device • Self brake main motor • Top roller can be manual opened to the side • Lower and back roll are in height adjustable by hand • Separate electric control panel with foot pedal • Back roll with Motor (option included) • Induction hardened rolls (option included) • Digital display (option included)

Working Length 2050 mm 80.7”
Maximum Thickness 4.5 mm 3/16”
Pre-bending 4 mm 5/32”
Ø min bending 210 mm 8.26”
Top Roll Ø 140 mm 5.5”
Bending speed 5.7 m./min/ 224”/min
Motor Power 2.2KW 4HP
Length 2320 mm 91.3”
Height 1200 mm 48”
Width 900 mm 35.5”
Weight 1530 kg 3373 Lbs
