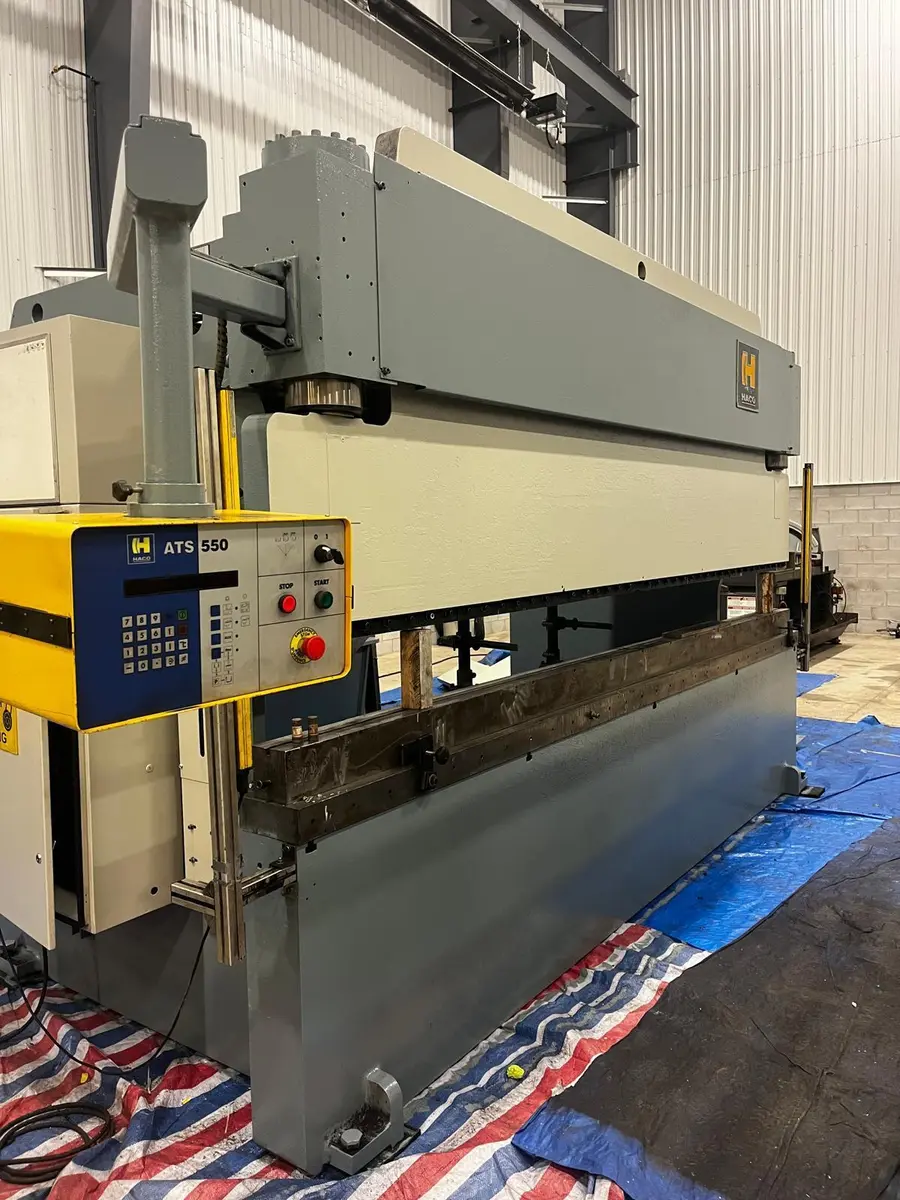

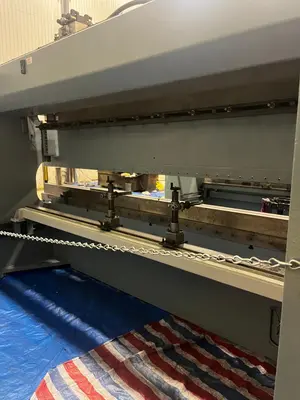

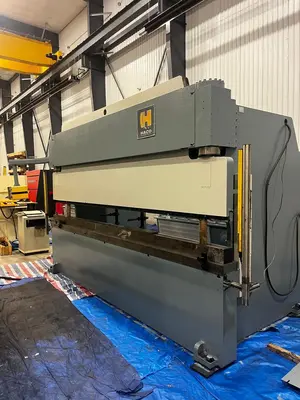

Used 2002 HACO ERMS 43225 ATS560 | Press Brakes

Description

Capacity 225 Metric Ton-248Tons
Overall Bending length 168”
Between Side frames 148”
Back gauge X-2stops
Top tool clamping N.A. style
Bottom tool clamping N.A. style Riser block
Daylight opening 15.7”
Stroke 7.8”
Voltage 575V/3ph/60Hz
Control ATS 550 2 axes)
Y1 – Y2 Depth programming
X axes position programming
Retraction from the back gauge
Program storage
Beam safety Floating beam light curtain
Guarding Back & sides with interlock
Year 2002
Tooling None
