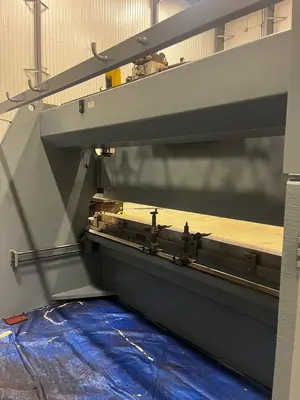

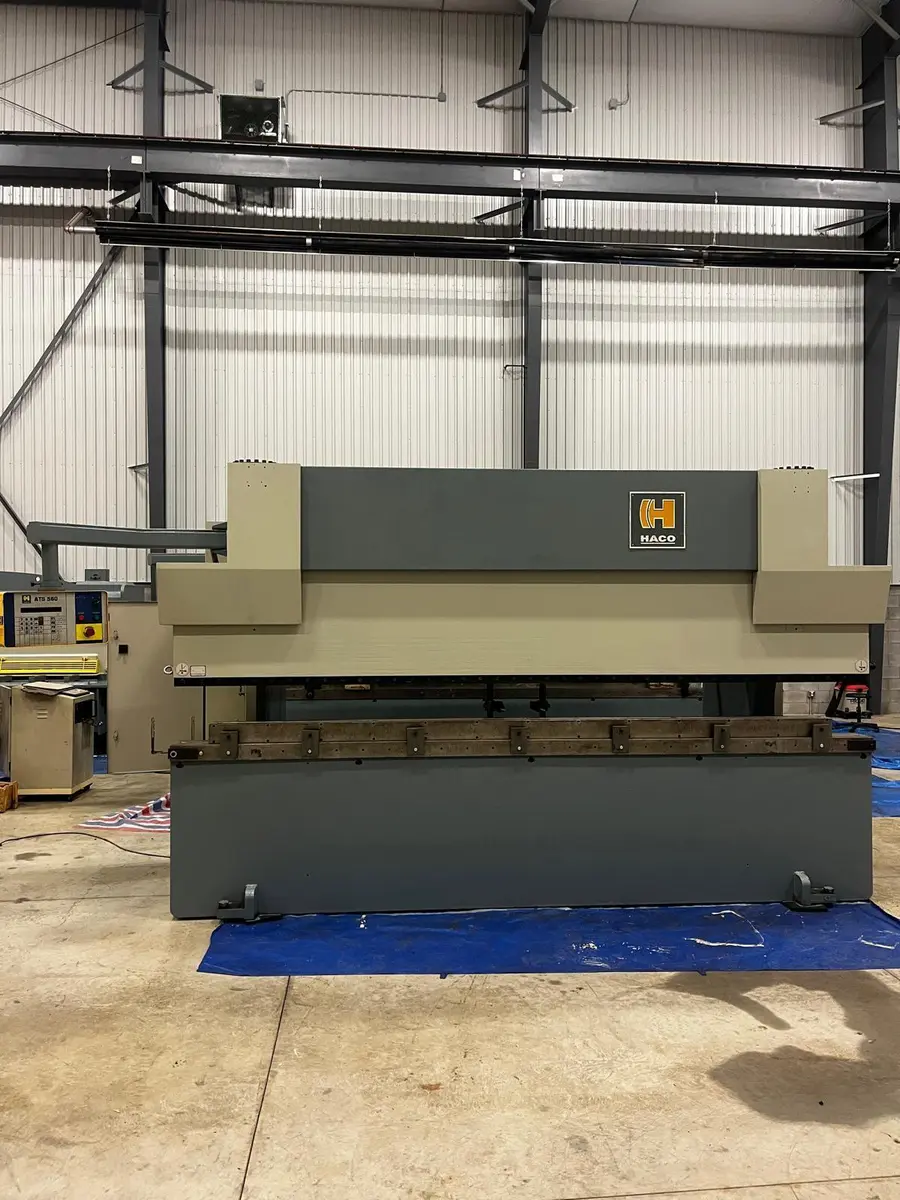

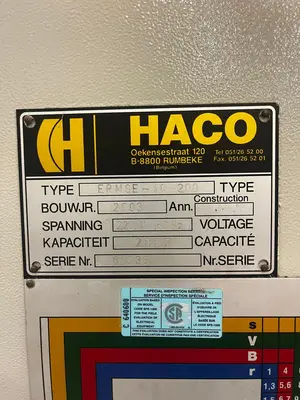

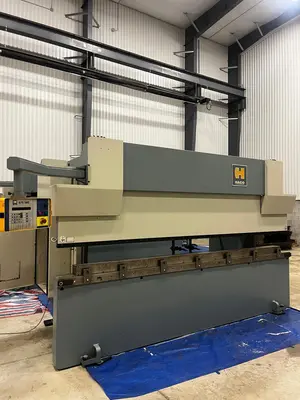

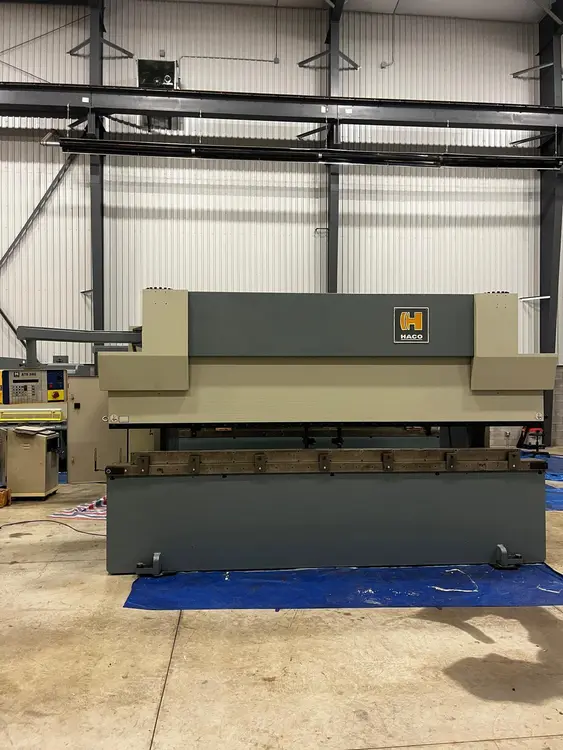

Used 2003 HACO ERMSE 40200 | Press Brakes

Description

CAPACITY: 200 Metric Ton - 220 US Short Tons
BENDING LENGTH: 161” (4100mm) Overall
124” (3150mm) Between Side Frames
DEPTH OF THROAT (gap)
11,8” (300mm)
RAM STROKE
7,8” (200mm)
DAYLIGHT OPENING
15,35” (390mm)
CLOSED HEIGHT
7,48” (190mm)
WORKING HEIGHT
38” (965mm)
WIDTH OF THE TABLE
7,8” (200mm)
MOTOR POWER
18,8 Kw - 25 HP
OIL TANK CAPACITY (OIL INCLUDED)
73 gal. (275 l)
LINE VOLTAGE (unless other request)
220V/60Hz/3ph
FAST APPROACH SPEED
236”/min (100mm/sec)
BENDING SPEED
19”/min (10mm/sec)
FAST RETURN SPEED
189”/min (80mm/sec)
TOTAL LENGTH (approx.)
173” (4400mm)
TOTAL HEIGHT (approx.)
118” (3000mm)
TOTAL WIDTH (approx.)
75” (1900mm)
APPROX WEIGHT
32,600 Lb. (14,8 Ton)

HACO-ROBOSOFT ATS 560 CNC CONTROL FOR:
X-AXES, AC drive, programmable in 0.1mm (0.004”)
Price includes accurate back gauge on ball screws with two finger
blocks, manually adjustable in width and height.
Standard stroke X : 30” Height : 5”
Y1-Y2 AXES, SYNCHRO, programming in depth values (0.0004”)
Pendant control panel to centralize all press brake functions.
Programmable top stop point, speed change over point.
User friendly software in dialogue form, selection for inch/metric
Memory capacity of 400 steps, divided over 200 programs.
CNC controlled back gauge, ability to have back gauge retraction for Z-bending, fingers are manually adjustable in width and height.
Ability to tilt the beam (max. 2,5 degrees)
The two linear encoders are mounted on brackets to the side frame, to compensate side frame deflection.
Ram machined with clamping for North American style top tooling.
Riser block for single V dies.
