Used 2012 TRUMPF TRULASER 1030 | Laser Cutting Machines

Description

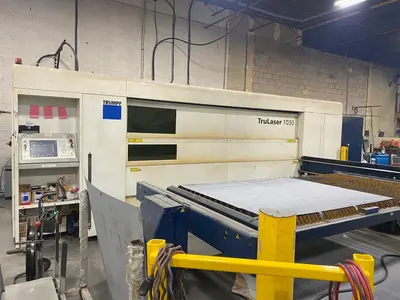

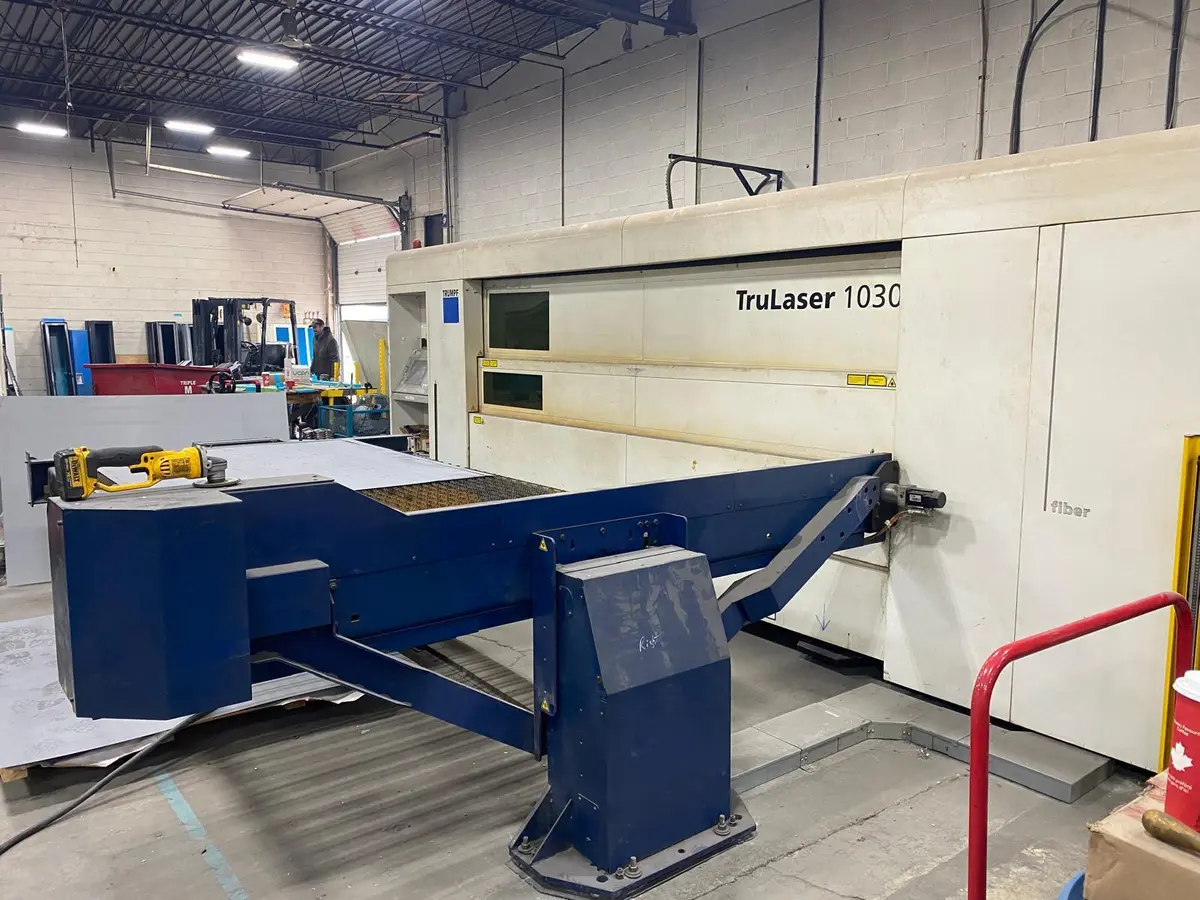

Used TRUMPF TRULASER 1030 FIBER Laser Cutter: Handle sheets up to 60"x120" with 2000W power. Achieve speeds up to 3346 IPM. Travel dimensions: X=120", Y=60". Ideal for precise, efficient cutting needs.

Side loader style machine with Trumpf Trudisk resonator. Comes equipped with dual pallet changer, dust collector, and chiller.

Material Thickness (Example for 2000W Fiber Laser)
Mild Steel: 0.6" (approx. 15 mm)
Stainless Steel: 0.3" (approx. 8 mm)
Aluminum: 0.25" (approx. 6.35 mm)
Copper/Brass: 0.12" (approx. 3 mm)

Note: The exact specifications may vary slightly depending on the specific options and configurations installed on the machine at the time of manufacture (e.g., specific cutting head, additional cutting packages for thick sheets)

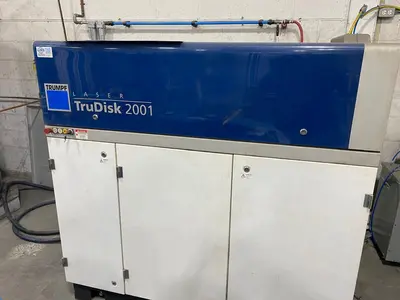

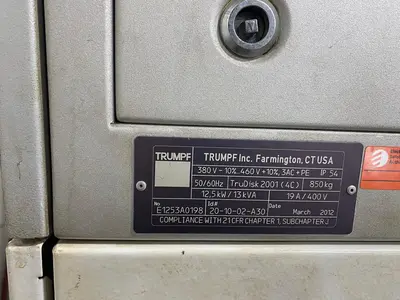

Key points about the TruDisk 2001:
- It is a type of solid-state laser that uses a crystalline disk as its active medium, unlike a fiber laser which uses a fiber as the active medium.
- The laser beam is delivered to the machine via a fiber optic cable, which can lead to it being associated with "fiber" systems, but the core laser technology is a disk.
- Its emission wavelength is in the near infrared (1030 nm) range, which is characteristic of solid-state lasers, as opposed to the much longer infrared wavelength of a CO2 laser (10.6 µm).
- It is designed for processing metals and performs particularly well on reflective materials due to its robust design, which can be challenging for other laser types.
