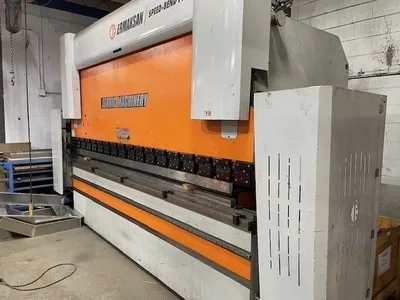

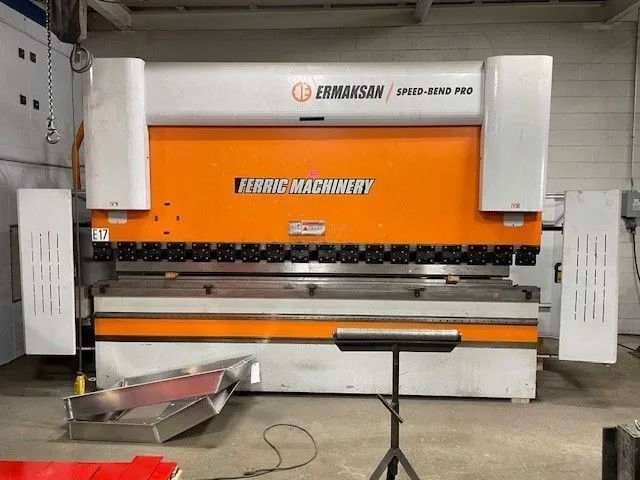

Used 2015 ERMAKSAN 242 TON X 12' ERMAK SPEED BEND | Press Brakes

- Capacity : 220 Metric Ton – 242 US Short Tons
- Overall Bending Length: 148””
- Between Side Frames: 128”
- Four axis back gauge X1-X2 -Z1-Z2 CNC controlled
- CNC controlled crowning table
- Throat in the side frames: 16”
- Top tool clamping for N.A. & European style tooling with quick release
- Bottom tool clamping for N.A. & European style tooling

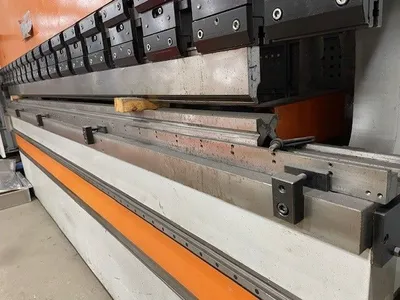

- Goose neck top tool in sections, precision grind, tip induction hardened
- Multi V bottom die in sections, precision grind, V induction hardened.
- AKAS Laser type beam safety
- Y1-Y2 independent cylinder control

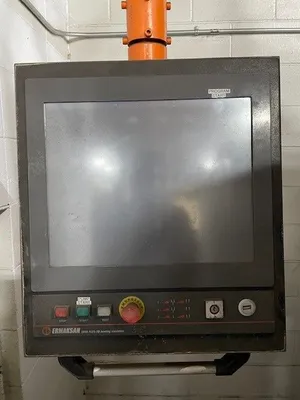

- Equipped with the ER90+ numerical - 2D controller – 3D controller
o Y1-Y2
o Angle, Depth and pressure programming
o Library for : top tools, bottom tools, materials
o Programmable: Top Dead center, Fast Slow point, plate thickness
o Retraction of the back gauge
- New in 2015
- In excellent condition
