Sold

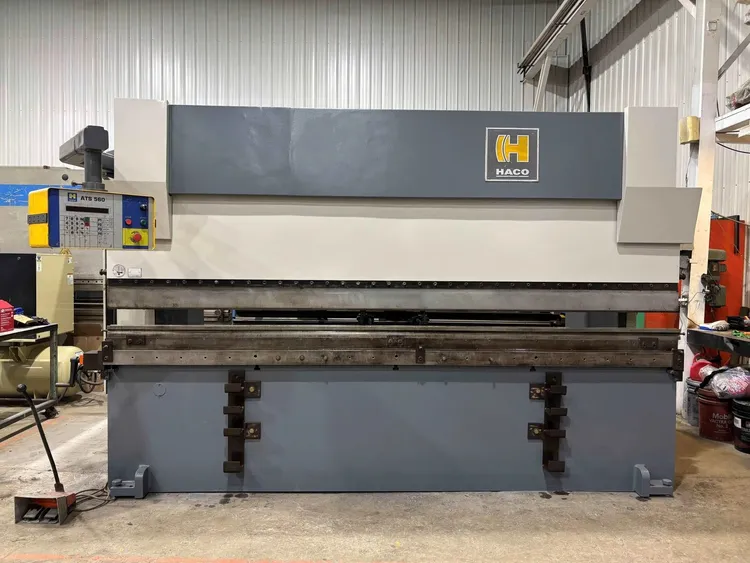

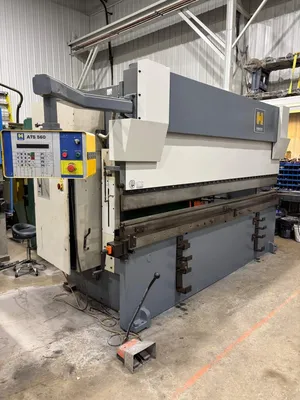

2005 HACO ERMS 36150

Press Brakes
Manufacturer:
HACO
Model:
ERMS 36150
Year:
2005

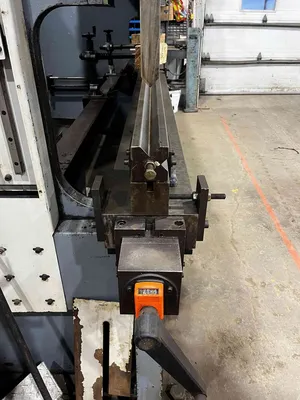

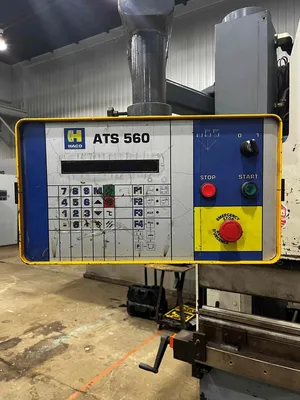

Capacity 150 Metric Ton-165Tons Overall Bending length 144” Between Side frames 124 Back gauge X-4stops Top tool clamping N.A style Bottom tool clamping N.A.style Riser block Daylight opening 15.7” Stroke 7.8” Voltage 575V/3ph/60Hz Control ATS 560 2 axes) Y1 – Y2 Depth programming X axes position programming Retraction from the back gauge Program storage Year 2004 Tooling Goose neck top tool – Multi V die Crowning table Manual adjustable
Max Tonnage165 T149.686 t
Max Length144"3,657.6 mm
# Axis44
TypeHYDHYD
ControlCNCCNC
Weight22,000Ibs22,000Ibs
