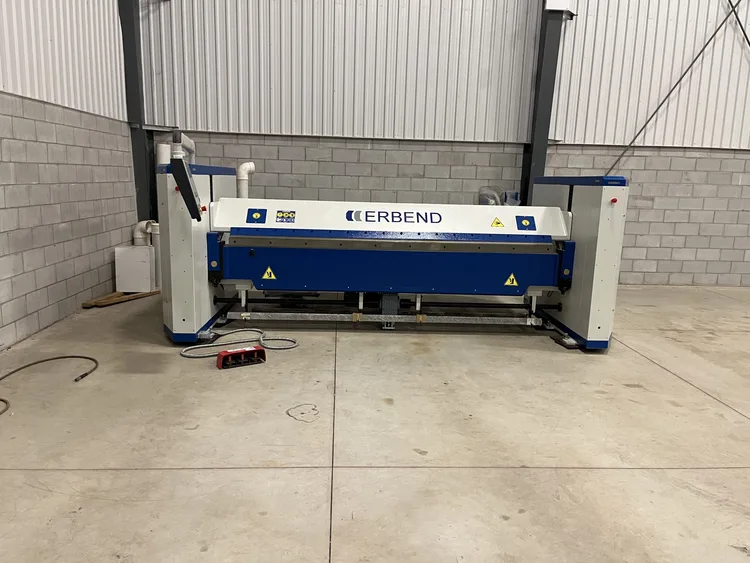

Erbend MFC 3215 Servo Electric (10ft X 16G)

Clamping beam Z axes:
Open height : ..................... 6.3″
Motor power : ..................... 4HP
Drive system: ..................... Eccentric arm
Clamping speed: ................... 2.36″/sec

Folding Beam Y axes:
Folding angle: .................... 0 to 150 degree
Motor power: ...................... 2HP
Folding speed: .................... 75 Deg. / sec.

Folding beam adjustment: (A axis)
Adjustment height: ................ 1.38″
Control: .......................... Manual

Back gauge system: (X axis)
Stroke: ........................... 29.7″
Style: ............................ Feather tips
Speed: ............................ 9.8″/sec.

Working length .................... 125″

Mild Steel Capacity ............... 16G

Stainless Steel Capacity .......... 20G

Aluminum Capacity ................. 12

Optional manual adjustable crowning from folding beam Incl.

ErFold Touch CNC control:
Angle – open hem – closed hem – bumping
Library for the bending tools
Library for the parts
Correction page
575V/3ph/60Hz
Safety light guard for folding beam
3 stage foot pedal
