HSG X3015 6Kw (Stock)
Have one to sell?
ConditionNew
1 available
New

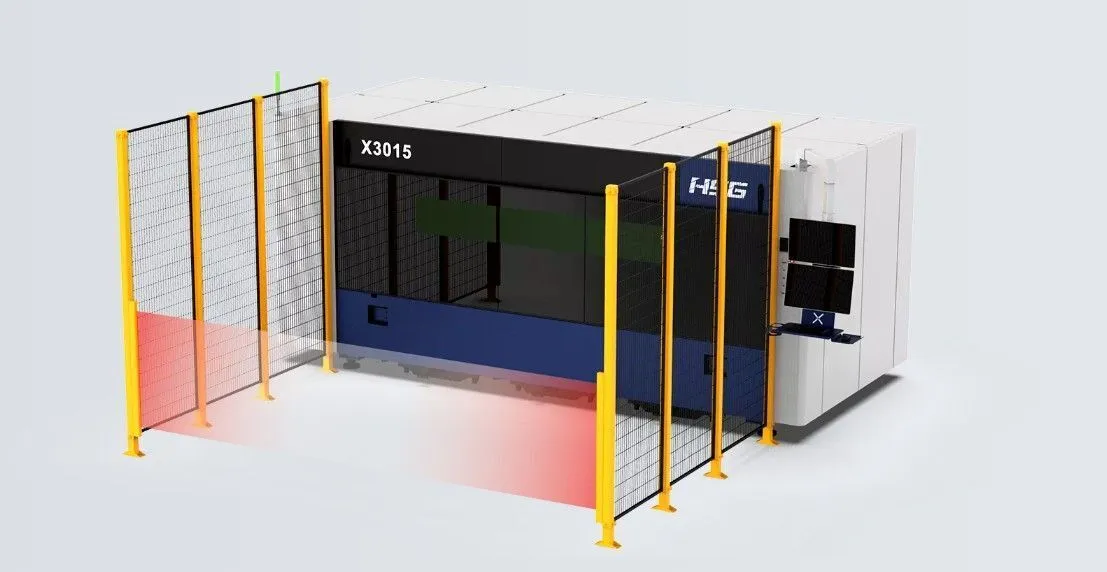

The design concept of the X series cutting machine is to minimize equipment size while ensuring processing capability, reducing equipment footprint, and saving space for customers.
Model: X3015
Power: 1500W-12000W
Processing format (L*W): 3048*1524mm / 3000*1500mm(12000W)
X/Y-axis positioning accuracy: ±0.03mm/m
The maximum cutting thickness of different kinds of metals for a 6kw fiber laser cutter: 25mm carbon steel, 20mm stainless steel, 16mm aluminum, and 12mm brass.
Z-axis stroke: 100mm
Positioning precision of X/Y axis: ±0.03mm/m
Repetitive positioning precision of X/Y axis: ±0.03mm
Max. linkage speed: 120m/min
Max. linkage acceleration: 1.5G
Max. loading weight: Approx. 1000kg
Dimensions (Length×Width×Height): 4900×3167×2521mm
Number of phases: 3
Rated voltage of power source: 380V
Frequency: 50/60Hz
Power/ Current: 38KW/76A(6000W)
