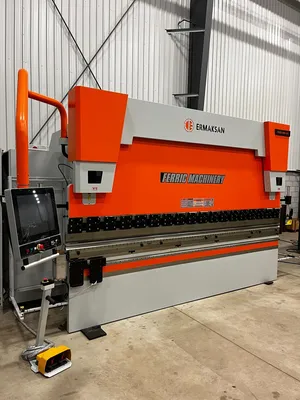

Speed Bend series are developed to work with a wide range and variety of customer products and significantly increase productivity due to the short set up times. If your aim is to provide important improvements in quality, productivity, esthetic and security aspects, the FERRIC Speed Bend series is what you are looking for.
Maximum accuracy with the beam is achieved by means of an electro-hydraulic synchronized control (Y1-Y2), consisting out of linear scales and hydraulic proportional valves, guaranteeing bending angles with maximum precision, together with a 4 axes heavy duty precise back gauge (X-R-Z1-Z2) and CNC controlled crowning table V
Mono block, welded steel frames, rigid to deflection movementand high tensile with ST44 A1 material.
-7 axes: Y1-Y2-X-R-Z1-Z2-V crown.
-Synchronization accuracy of the beam +/- 0,001” by means oflinear encoders and hydraulic proportional valves.
-Heavy Duty 4 axis AC motorized back gauge system on ballscrews ( X-R-Z1-Z2)
-Electrical cabinet with cooling fan, compliant with the CSAstandards.
-Double acting foot pedal control
-Throat depth 16.1” (410 mm).
-Top tool clamping for European & N.A. style tool.
-Quick release from the top tool.
-CNC controlled crowning table
-Laser type light guard Category 4
-Sliding front support with T slot movable along the length of thebed.
Up to 175 Metric ton machines (higher tonnage : option).
-North American style top tool tip hardened top tool
-European style V hardened Multi V die.
-Back and side guarding with inter-lock switches to the machinecontrols.
-Full covering of the piston stroke to avoid damage.
-Ergonomic mounted CNC control.
BENDING LENGTH 148 Inch
MAX. POWER 190 US Short Tons
AXIS NUMBER OF MACHINE Y1,Y2,X,R -
FREE DOWN SPEED 7 Inch/s
BENDING SPEED 0.33 Inch/s
RETURN BACK SPEED 7.56 Inch/s
STROKE (C) (Y1, Y2) 10.8 Inch
BACK GAUGE STROKE (X AXIS) 30 Inch
BACK GAUGE STROKE (R AXIS) 9.84 Inch
DISTANCE BETWEEN HOUSING (B) 128 Inch
CROWNING CNC controlled -
THROAT DEPTH (E) 16.1 Inch
TABLE HEIGHT (F) 35.4 Inch
TABLE WIDTH (G) 3.54 Inch
DAYLIGHT (D) 21.6 Inch
PLANT VOLTAGE 575 V
IP 54 -
MAIN MOTOR 22 HP
BACK GAUGE MOTORS (X, R) 2×2,4 Nm
PLANT TEMPERATURE 0-50 ºC
MAX. NOISE 70 dB
OIL CAPACITY 200 lt
MAX. PRESSURE 300 bar
MACHINE LENGTH (L) 193 Inch
MACHINE WIDTH (W) 85 Inch
MACHINE HEIGHT (H) 110 Inch
The easy to ER99 Plus 2D-3D programming touch screen, graphic control, including off line programming software.
