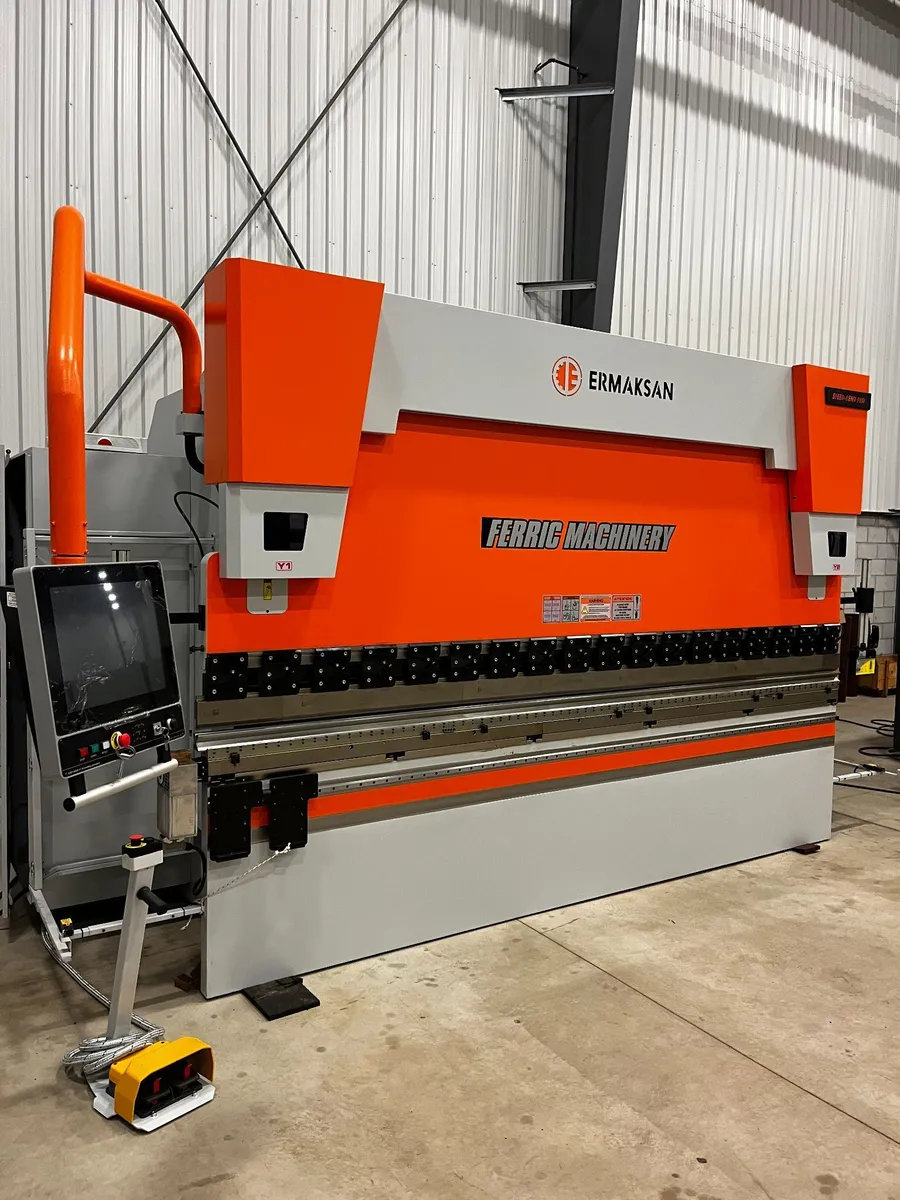

Ermaksan Speed Bend Pro 12ft x 175 Ton CNC Press Brake (Stock)

Speed Bend series are developed to work with a wide range and variety of customer products and significantly increase productivity due to the short set up times. If your aim is to provide important improvements in quality, productivity, esthetic and security aspects, the FERRIC Speed Bend series is what you are looking for. Maximum accuracy with the beam is achieved by means of an electro-hydraulic synchronized control (Y1-Y2), consisting out of linear scales and hydraulic proportional valves, guaranteeing bending angles with maximum precision, together with a 4 axes heavy duty precise back gauge (X-R-Z1-Z2) and CNC controlled crowning table V Mono block, welded steel frames, rigid to deflection movementand high tensile with ST44 A1 material. -7 axes: Y1-Y2-X-R-Z1-Z2-V crown. -Synchronization accuracy of the beam +/- 0,001” by means oflinear encoders and hydraulic proportional valves. -Heavy Duty 4 axis AC motorized back gauge system on ballscrews ( X-R-Z1-Z2) -Electrical cabinet with cooling fan, compliant with the CSAstandards. -Double acting foot pedal control -Throat depth 16.1” (410 mm). -Top tool clamping for European & N.A. style tool. -Quick release from the top tool. -CNC controlled crowning table -Laser type light guard Category 4 -Sliding front support with T slot movable along the length of thebed. Up to 175 Metric ton machines (higher tonnage : option). -North American style top tool tip hardened top tool -European style V hardened Multi V die. -Back and side guarding with inter-lock switches to the machinecontrols. -Full covering of the piston stroke to avoid damage. -Ergonomic mounted CNC control.
