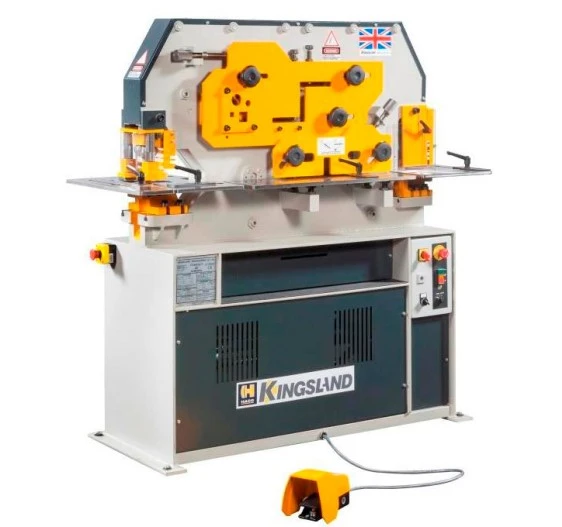

Ironworker: Kingsland Compact 50/65
Have one to sell?
ConditionNew
New
Single Operator, Five Station Machine - punching, notching, angle, flat bar & section shear, rectangular notcher.
• Large working tables on all stations
• Hold downs on all shear stations
• Adjustable stroke control on all station
• Standard 45 Degree Mitre cutting on angle station

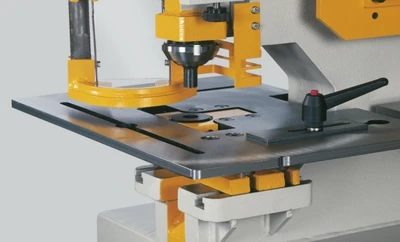

• Front part from punch table removable to get tight to web of angle to punch
• Standard 39” ruled backstop for shear stations
• Protection guards on all stations
• Central greasing system
• Full oil tank
Punching Maximum Capacity (mm) .. 30×15
Diameter x Thickness (mm) ....... 38×12
Stroke Length (mm) .............. 55
Standard Throat Depth (mm) ...... 220
Largest Hole (standard).......... 38
Largest Hole (optional) ......... 110
Maximum Section ................. 160
Working Height (mm) ............. 940
SHEARING
Flat Bar – Max thickness (mm) ... 200×20
Flat Bar- Max width (mm) .........300×15
Angle Flange Trim ............... 80×10
Working Height (mm) ............. 940
ANGLE CUTTING 90° cut ........... 120×12
45° mitre max 45° ............... 80×8
Working Height (mm) ............. 1140
SECTION CUTTING
Round / Square .................. 40/35
Channel / Beam .................. 102×51
Tee ............................. 76×10
NOTCHING
Material Thickness (mm) ......... 10
Width – Rectangular (mm) ........ 42
Depth – Rectangular (mm) ........ 100
Depth – Vee (mm) .................60
Angle flange .................... 100×10
Working Height (mm) ............. 940
CORNER NOTCH
Maximum Capacity ................ 150×4
TUBE NOTCH
Maximum Diameter (mm) ........... 60
BENDING
Sheet Bending (max capacity) .... 150×5
Bar Bending on Notch End ........ 150×12
NOTCH STATION PUNCHING
Throat Depth (mm) ............... 110
Maximum Capacity ................ 20×12
TECHNICAL DATA
Motor Power (Kw) ................ 4
Net Weight (Kg) ................. 1265
Gross Weight (Kg) ............... 1385
Machine Dimensions (LxWxH, cm) .. 152x59x170
Packed dimensions (LxWxH, cm) ... 166x77x190
