Used IRIDIUM CNC Plasma | Plasma Cutters

Description

- Table size: 5 x 10ft
- Welded steel frame
- X – U dual drive & Y axes on linear bearing, rack & pignon
- Travel Speed: 600”/min
- Stroke Y axes: 6”
- THC (Automatic height controller)
- Water style table for smoke & dust collection
- 220V/1ph/60Hz
- Offline programming software : SheetCam

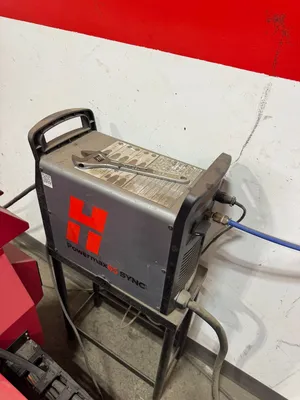

- Power source Hyperther PowerMax 65 Sync
The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data.
o Thickness ¾” at max 20”/min
1” at max 10”/min
