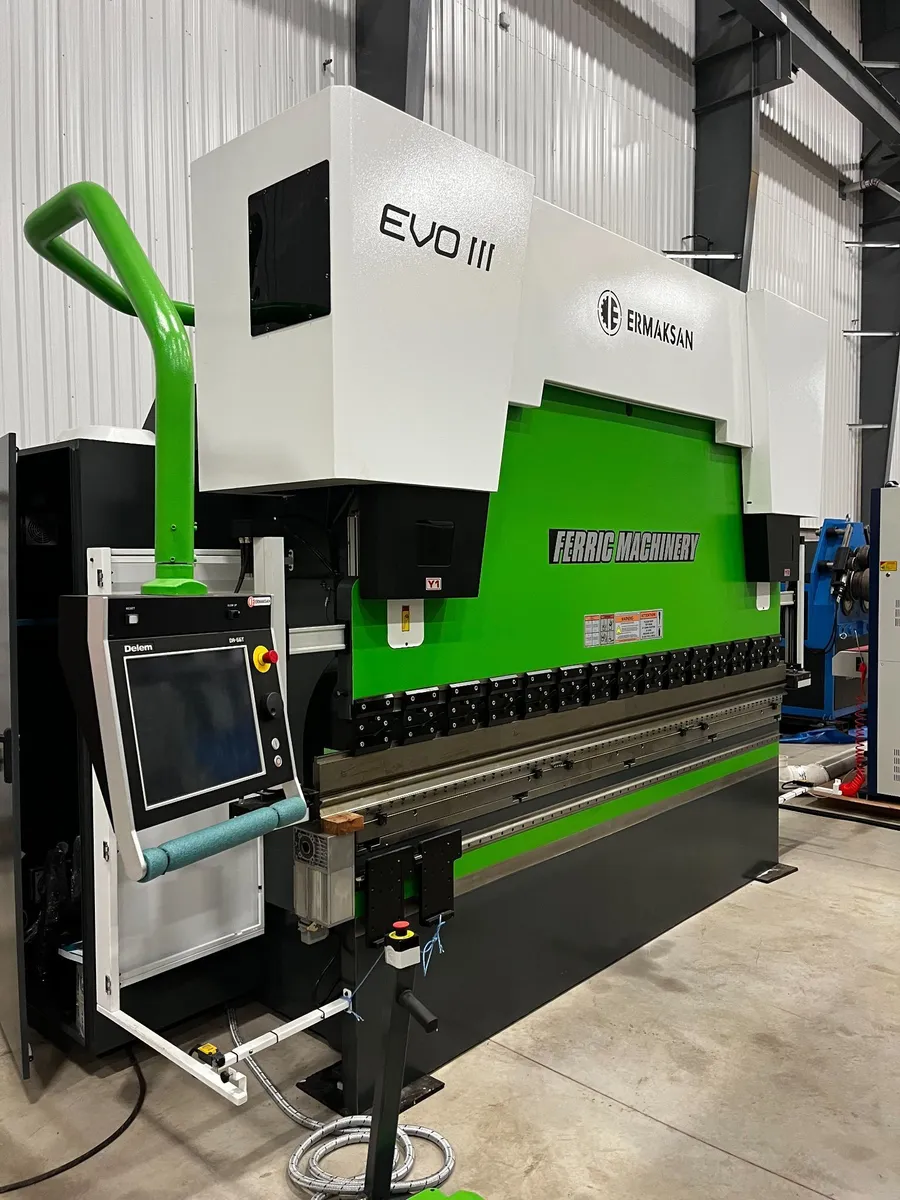

Ermaksan Evo III 10ft x 192T (Stock)
Have one to sell?
ConditionNew
1 available
New
The EVO III offers unmatched efficiency with up to 73% less energy consumption compared to traditional hydraulic systems. The machine has two seperate closed loop oil tanks driven by servos. This press brake configuration is considered hybrid because unlike a fully hydraulic machine there is much less oil and the system is only activated when called upon (up and down pedal). Hybrid brakes achieve similar efficiency, noise levels, speed, and accuracy as a fully electric brake all at a lower cost. THe EVO III comes equipped with:
Lazersafe Iris auto adjusting light curtains
Quick release style clamping
Front sheet supports
4 axis backgauge (X,R,Z1,Z2)
Delem 66-69T control
Auto crowning system
4-way bottom die (16-22-35-50mm) and standard gooseneck punch
Fast bending speeds 0.75″/sec
Low electrical power consumption

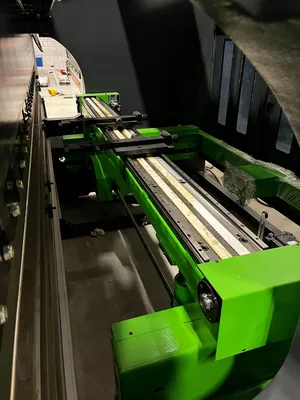

Four axis CNC backgauge X-R-Z1-Z2
Tool Clamping for North American & European Style Tooling
Tooling package included
Two sliding front support arms
Delem 66T numerical 2D Graphic 3D view control
Short Delivery
Machine shown has optional automatic sheet following arms.

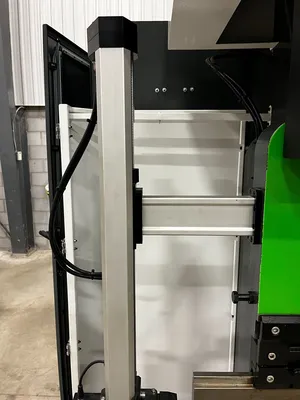

Auto adjusting Servo driven light curtains (based on selected punch)
