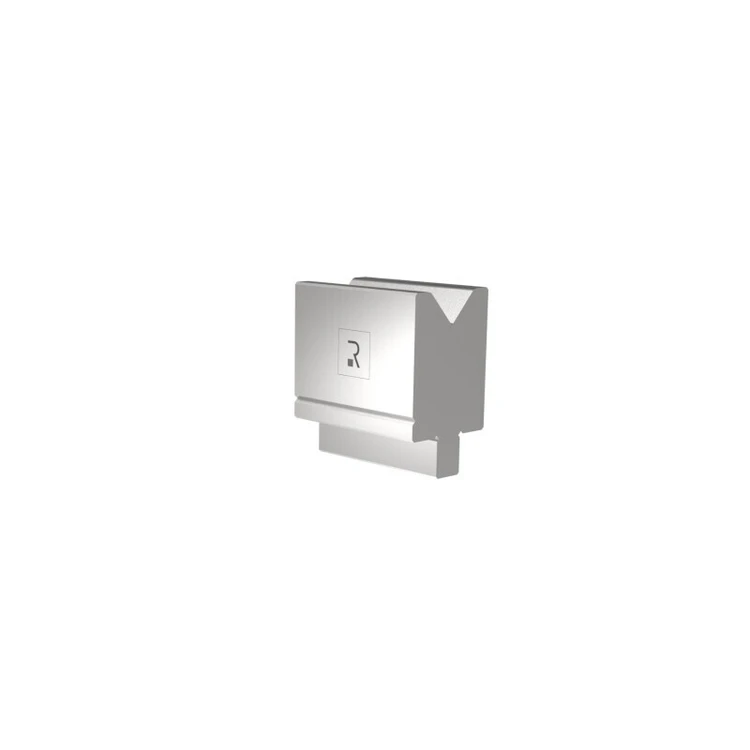

Rolleri dies are high-precision press brake tooling designed to deliver consistent, accurate bends across a wide range of materials and applications. Built from hardened, high-quality tool steel, Rolleri dies offer excellent durability, wear resistance, and long service life.

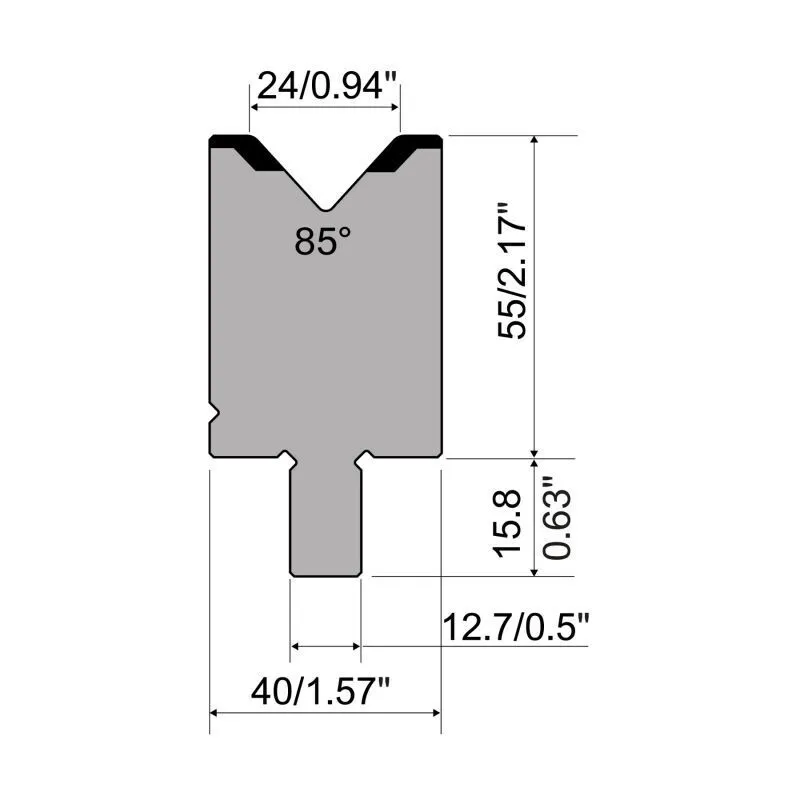

Die R5 American type with working height=55mm, α=85°, Radius=3mm, Material=42cr, Max. load=1200kN/m.
Type: .......... R5
Family: ........ CLASSIC
Product type: .. Die
Tonnage: ....... 1200 kN/m max.
Material: ...... C45: 560-710 N/mm2
Height: ........ 55
Degrees: ....... 85
Radius: ........ 3
V [mm]: ........ 24
