Rolleri dies are high-precision press brake tooling designed to deliver consistent, accurate bends across a wide range of materials and applications. Built from hardened, high-quality tool steel, Rolleri dies offer excellent durability, wear resistance, and long service life.

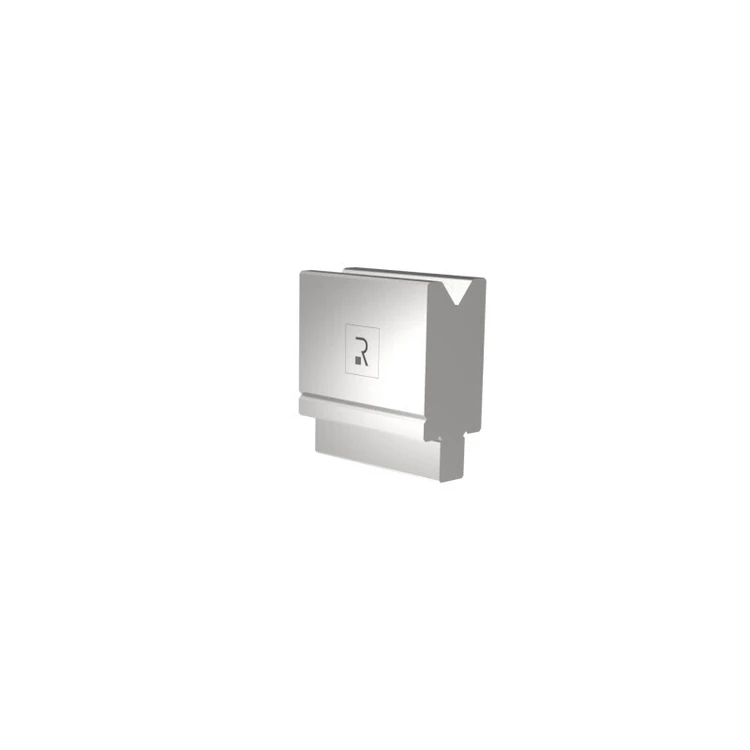

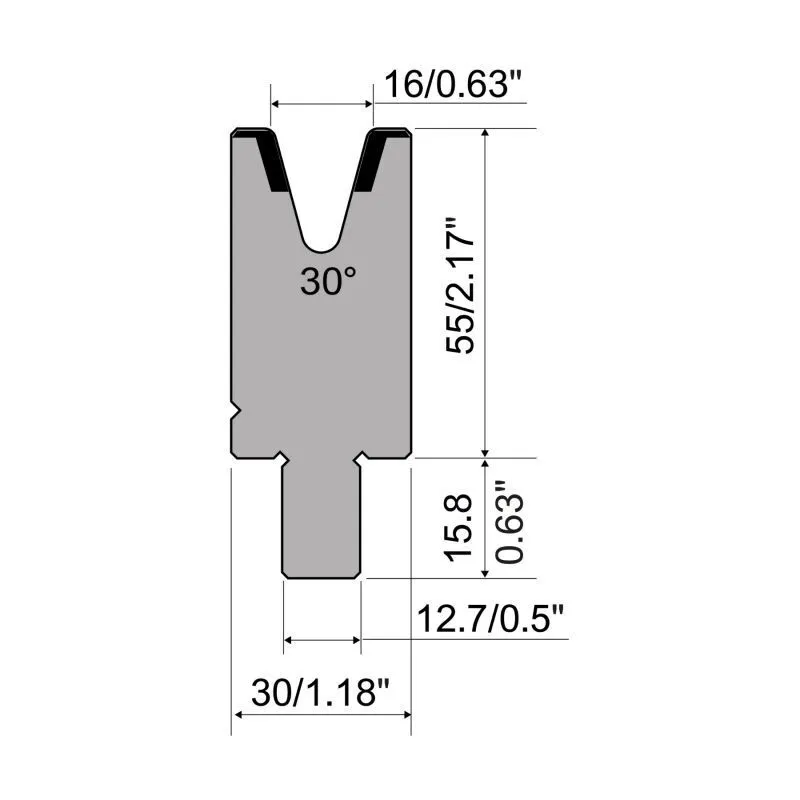

Die R5 American type with working height=55mm, α=30°, Radius=2mm, Material=42cr, Max. load=450kN/m.
Type: .......... R5
Family: ........ CLASSIC
Product type: .. Die
Tonnage: ....... 450 kN/m max.
Material: ...... 42Cr: 900-1150 N/mm2
Height: ........ 55
Degrees: ....... 30
Radius: ........ 2
V [mm]: ........ 16
