Rolleri punches deliver long life, precise results, and faster setups, making them a top choice for fabricators who demand reliability and performance.

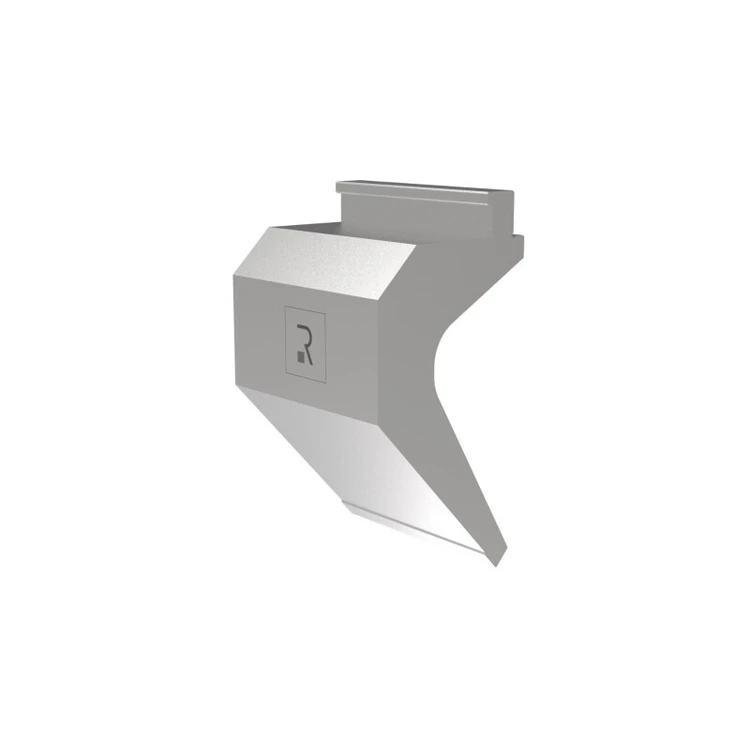

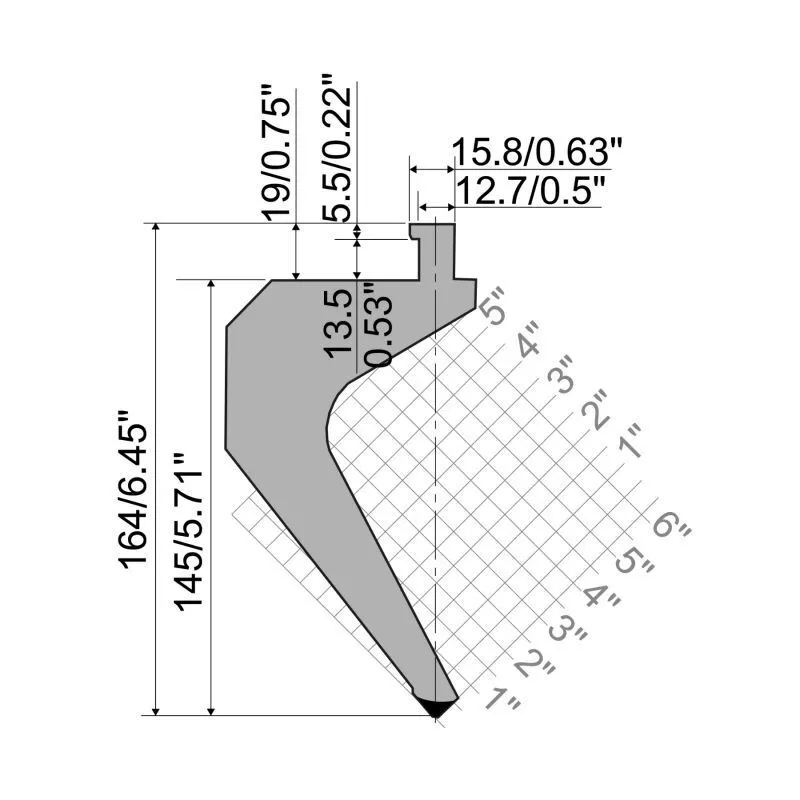

Punch R5 American type TOP Series with Working height=145mm, α=85°, Radius=0.8mm, Material=42cr, Max. load=9000kN/m.
Type: ........... R5
Family: ......... TOP
Product type: ... Punch
Tonnage: ........ 900 kN/m max.
Material: ....... 42Cr: 900-1150 N/mm2

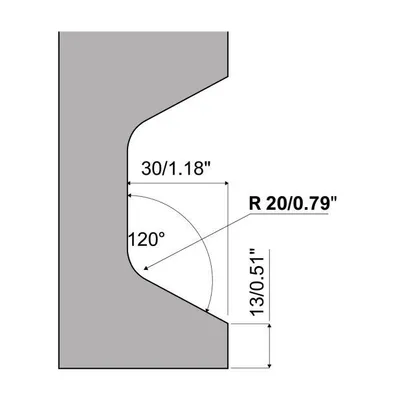

Horn: ........... Horn 2
Height: ......... 164
Useful height: .. 145
Degrees: ........ 85
Radius: ......... 0,8
