Rolleri punches deliver long life, precise results, and faster setups, making them a top choice for fabricators who demand reliability and performance.

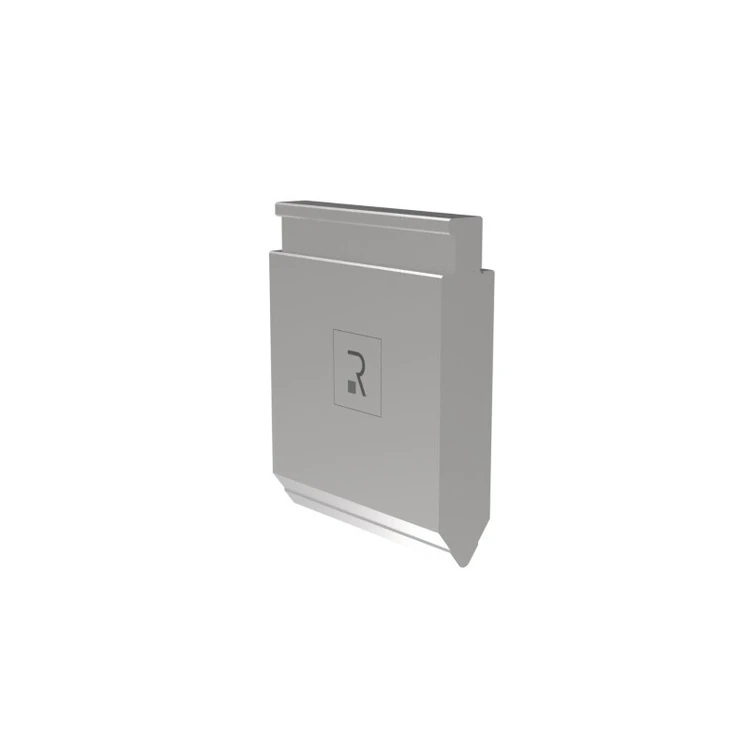

Punch R5 American type CLASSIC Series with Working height=106.7mm, α=75°, Radius=3.2mm, Material=42cr, Max. load=1000kN/m.
Type: ........... R5
Family: ......... CLASSIC
Product type: ... Punch
Tonnage: ........ 1000 kN/m max.
Material: ...... 42Cr: 900-1150 N/mm2

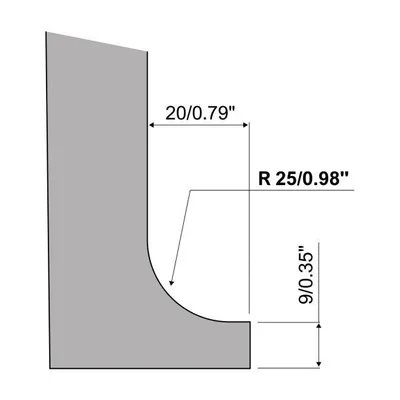

Horn: ........... Horn 1

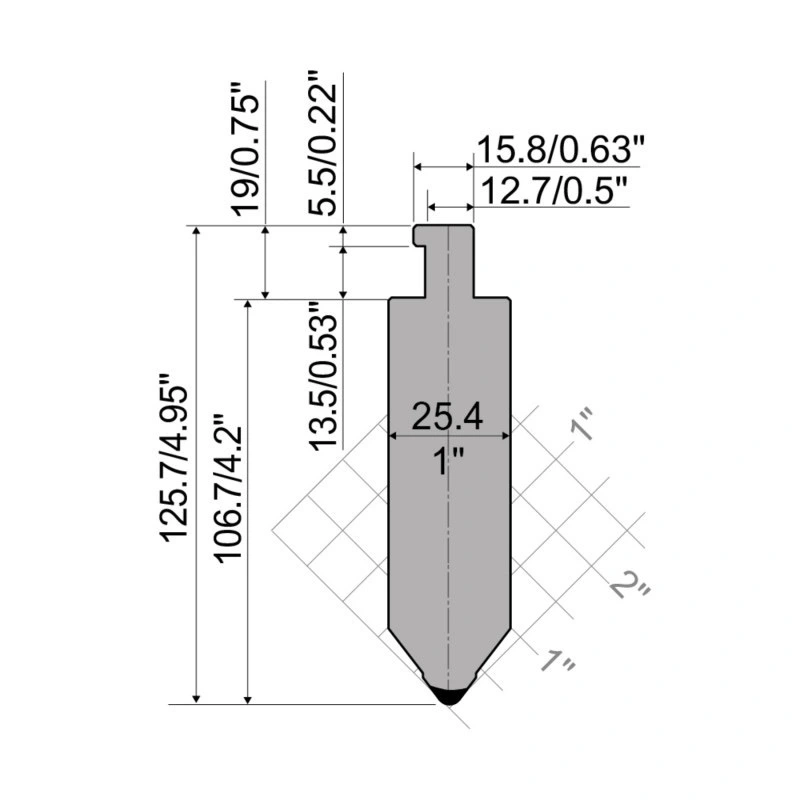

Height: ......... 125,7
Useful height: .. 106,7
Degrees: ........ 75
Radius: ......... 3,2
