Rolleri dies are high-precision press brake tooling designed to deliver consistent, accurate bends across a wide range of materials and applications. Built from hardened, high-quality tool steel, Rolleri dies offer excellent durability, wear resistance, and long service life.

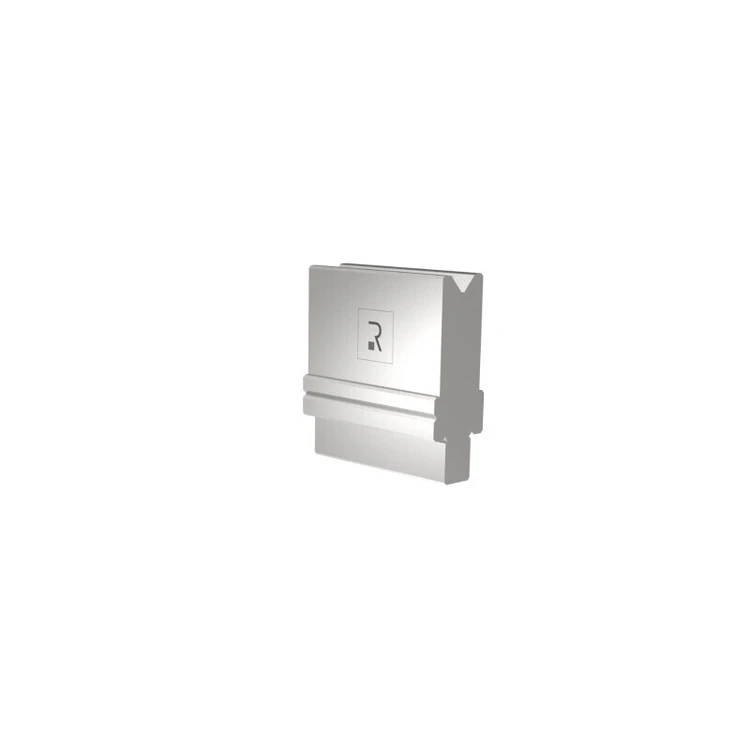

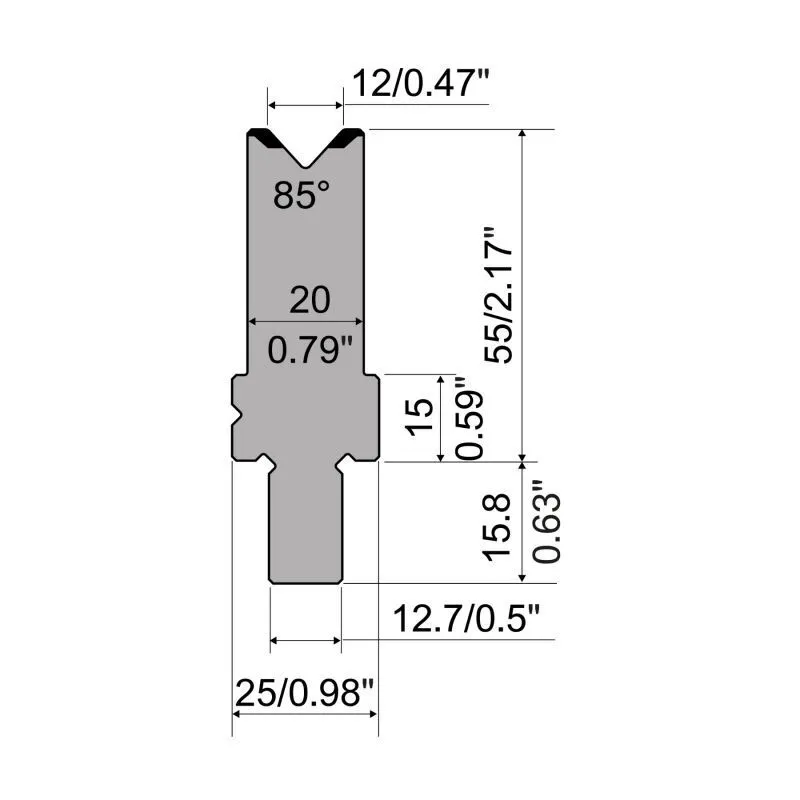

Die R5 American type with working height=55mm, α=85°, Radius=1.5mm, Material=42cr, Max. load=1200kN/m.
Type: .......... R5
Family: ........ CLASSIC
Product type: .. Die
Tonnage: ....... 1200 kN/m max.
Material: ...... 42Cr: 900-1150 N/mm2
Height: ........ 55
Degrees: ....... 85
Radius: ........ 1.5
V [mm]: ........ 12
