New HSG GH Series | Laser Cutting Machines
Have one to sell?
ConditionNew
New
The GH Series delivers proven performance, all at a price more competitive than premium brands—while Ferric machinery provides superior service and faster responses. The all-new GH series will be the smartest investment you can make.
Machining area (length×width): 3100mmx1550mm (10x5ft)
Z-axis stroke: 350mm
Positioning precision of X/Y axis: ±0.03mm/m
Repetitive positioning precision of X/Y axis: ±0.02mm
Max. linkage speed: 200m/min
Max. linkage acceleration: 4G
Max. loading weight: About 1400kg（12-30kw )
Dimension（Length×Width×Height): About 10120x2370x2420mm
Power/Current: 58KW/116A（12000W）
Laser Source: Raycus
Laser Head: HSG (Optional)
Water Chiller: Standard

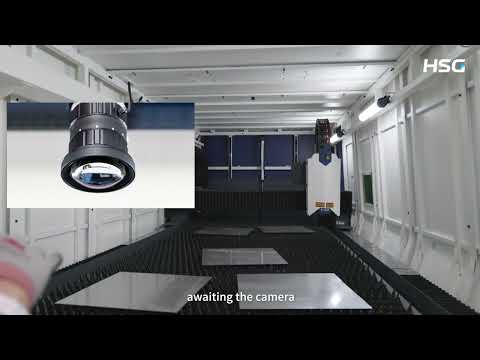

Security Package: Light curtains, Cameras
Air conditioned room for Laser source: Included (depending on Kw)
