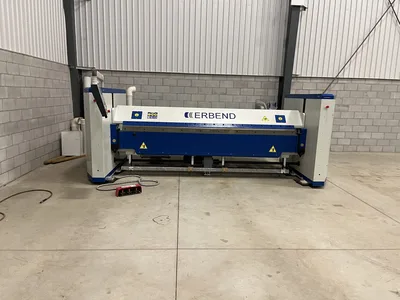

This Erbend MFC 3215 Servo Electric Sheet Metal Folder comes with a back gauge system and manual adjustable crowning from folding beam.
Clamping beam Z axes:
Open height : ..................... 6.3″
Motor power : ..................... 4HP
Drive system: ..................... Eccentric arm
Clamping speed: ................... 2.36″/sec
Folding Beam Y axes:
Folding angle: .................... 0 to 150 degree
Motor power: ...................... 2HP
Folding speed: .................... 75 Deg. / sec.
Folding beam adjustment: (A axis)
Adjustment height: ................ 1.38″
Control: .......................... Manual
Back gauge system: (X axis)
Stroke: ........................... 29.7″
Style: ............................ Feather tips
Speed: ............................ 9.8″/sec.
Working length .................... 125″
Mild Steel Capacity ............... 16G
Stainless Steel Capacity .......... 20G
Aluminum Capacity ................. 12
Optional manual adjustable crowning from folding beam Incl.
ErFold Touch CNC control:
Angle – open hem – closed hem – bumping
Library for the bending tools
Library for the parts
Correction page
575V/3ph/60Hz
Safety light guard for folding beam
3 stage foot pedal
Cambridge, ON
