Used Euromac CX 750/50-1250 CNC Hydraulic Punching Machine – 55 Ton Capacity
Sold

Used Euromac CX 750/50-1250 CNC Hydraulic Punching Machine – 55 Ton Capacity

CNC Punching Machines
Manufacturer:
EUROMAC
Model:
CX 750/50-1250
Stock #:
3787

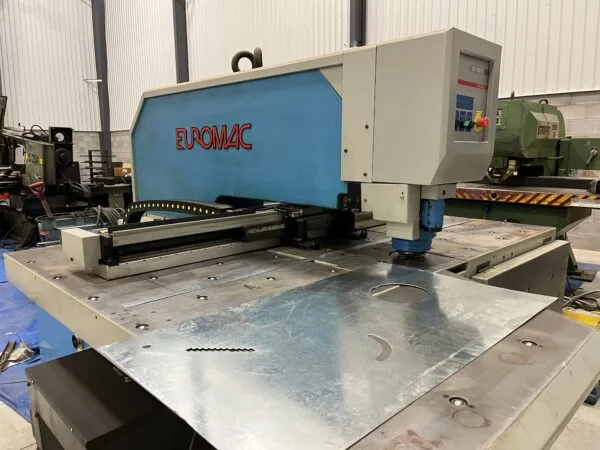

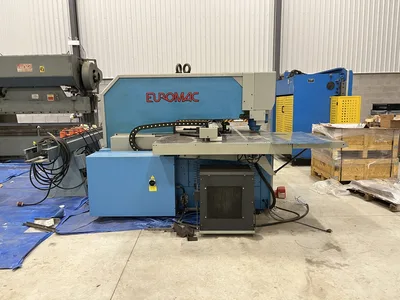

The Euromac CX 750/50-1250 is a robust CNC hydraulic punching machine designed for high-precision sheet metal fabrication. With a 55-ton punching force and advanced features like automatic repositioning and a multi-tool station, this machine offers versatility and efficiency for various punching applications. Contact us for pricing Toll-Free – 1-877-337-7424 Local – 519-220-1429 Email – sales@ferricmachinery.com
Tonnage55 T49.895 t

Tonnage: ................................ 55 tons

X-axis stroke: .......................... 50″ + Automatic repositioning

Y-axis stroke: .......................... 30″ (throat)

X-axis speed: ........................... 200 – 1,890 IPM

Y-axis speed: ........................... 200 – 1,890 IPM

Maximum hits per minute on 1″ centers: .. 130

Maximum strokes per minute nibbling: .... 220

Maximum sheet thickness: ................ 1/4″

Maximum sheet weight: ................... 220 Lbs.

Ram stroke: ............................. 1.18″ programable

Clamping: ............................... Hydraulic

Maximum hole size: ...................... 3.5″

Main motor: ............................. 5.5 H.P.

Hydraulic tank capacity: ................ 30 gallons

Dimensions: ............................. 97″ x 78″ x 74″

Weight: 12,386 Lbs.

Above specification are factory specifications to be checked by buyer

Our Cambridge Warehouse: 10 Natura Way, Cambridge, ON N3C0G7

Multi tool station

Updated computer

Automatic repositioning with automatic hold downs

Ability to jog ram

Capable of generating full tonnage an any point in the stroke

Ability to perform forming operations such as slots, fins, flanges, louvers, etc..
