Jonsen SD-H Swing Arm Type
Have one to sell?
ConditionUsed
1 available

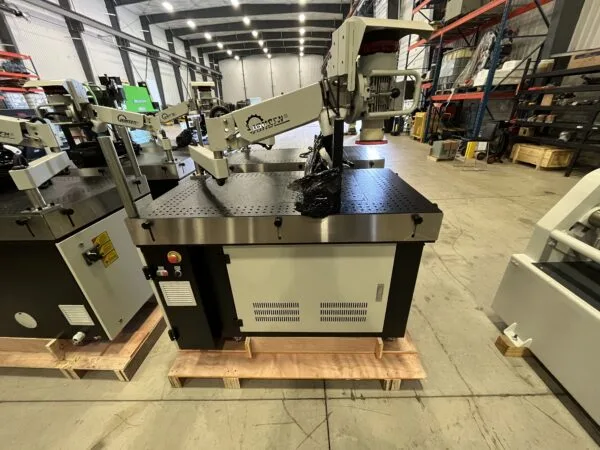

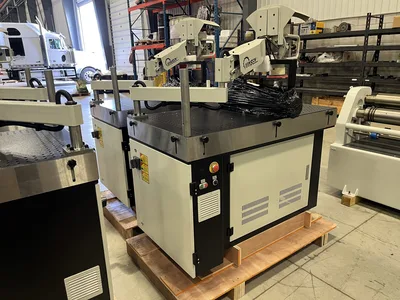

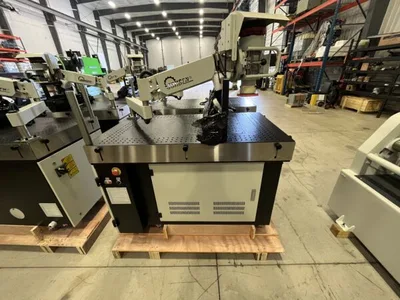

Metal swing arm deburring and grinding machine equipped with vacuum table to hold down small parts, and tunable head, fast switching between different kind of abrasive media brushes/disks. Adjustable RPM for the driving motor to meet specific applications.
• Deburring
• Grinding
• Edge rounding
Dimensions (Approximate)
L * W * H (mm).................. 1500*750*1510
Total power (Kw)................ 3.75
Vacuum pump power (Kw).......... 3
Grinding head power (Kw)........ 0.75
Swing arm reaching span (mm).... 1500*360°
Approx. weight (Kg)............. 450
Working thickness range (mm).... 1-300
Work station dimension L*W (mm). 1250*700
Vacuum area L*W (mm)............ 300*330
Working Voltage (V)............. 230V, 3 phase, 60 Hz
Adjustable rotating speed of the motor (RPM). 150-1500
Minimum work piece size (mm).... 50*50
