Kingsland Multi 95 Ironworker (Stock)

Have one to sell?

519-220-1429

sales@ferricmachinery.com

ConditionNew

Quantity

1 available

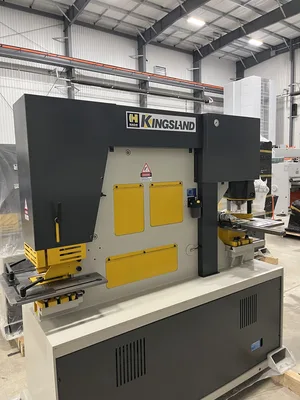

KINGSLAND MULTI 95 Ironworker Machines | FERRIC Machinery, Inc. (1)

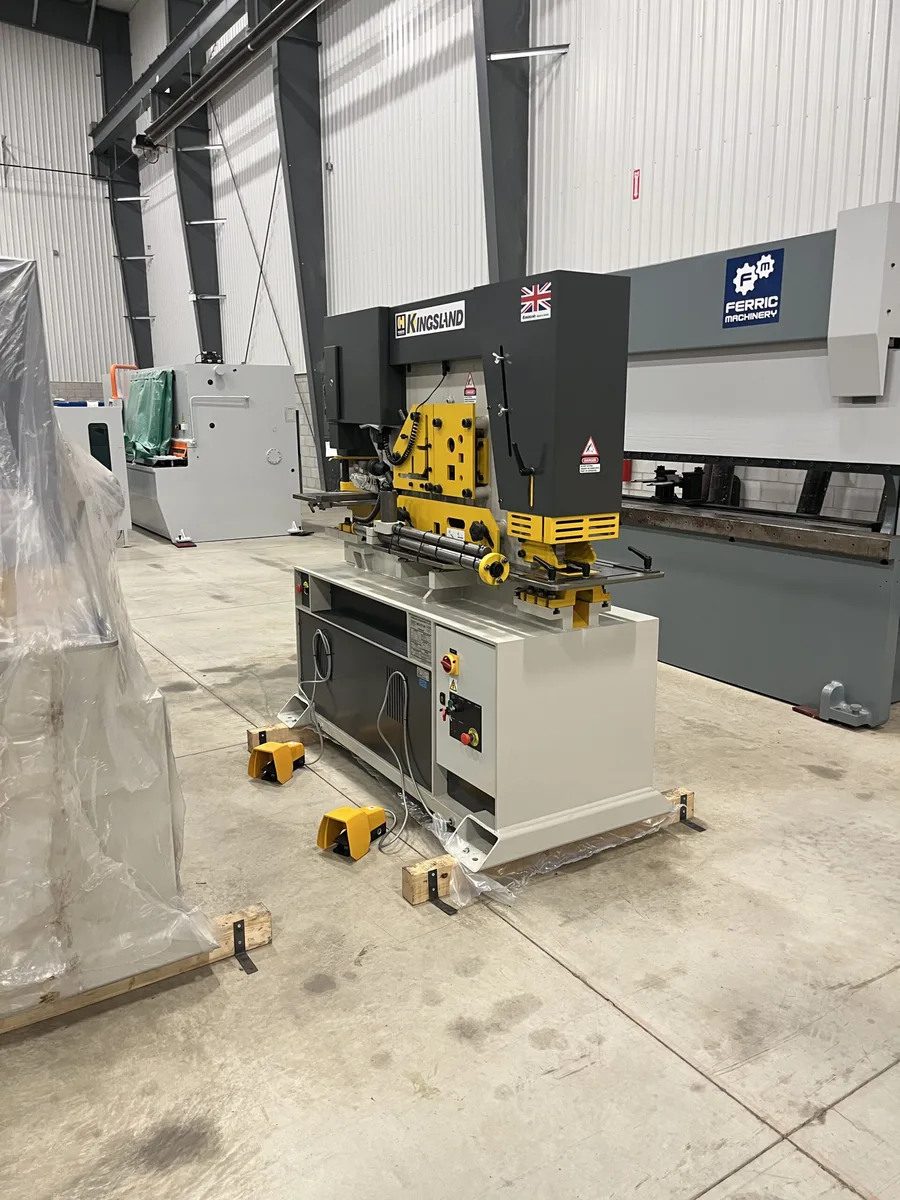

KINGSLAND MULTI 95 Ironworker Machines | FERRIC Machinery, Inc. (2)

KINGSLAND MULTI 95 Ironworker Machines | FERRIC Machinery, Inc.

New

Have one to sell?

Overview

Type:

Ironworker Machines

Manufacturer:

KINGSLAND

Model:

MULTI 95

Condition:

New - In-Stock

Stock #:

3769

Status:

For Sale

Description

(1) 95 Ton PUNCHING STATION for punching: plate,
flat bars, angle and flanges of channel and joists
- With additional tooling, ability to punch large holes up to 6”
- Removable table block for punching flanges of channel or
Beam can be punched up to 1 ½” maximum capacity.
- Additional tooling in this versatile workstation can be
provided: bending unit – tube notching

(2) SECTION CUTTING STATION for round and square bar.

(3) ANGLE CUTTING STATION this station provides large capacity angle cutting at 90 Degree. Special feature: 45 Degree mitre cutting.

(4) SHEARING UNIT for flat bars: max: 15” x 3/4”, alternatively: 18-7/8” x 5/8”. A plate support table with adjustable stops is fitted to allow accurate and easy feeding.

(5) RECTANGULAR NOTCHING UNIT with adjustable 4 edge blades.

Long Description

<br><p></p> <table><tbody><tr><td></td><td><strong>Multi 60</strong></td><td><strong>Multi 70</strong></td><td><strong>Multi 80</strong></td><td><strong>Multi 95</strong></td><td><strong>Multi 125</strong></td><td><strong>Multi 140</strong></td><td><strong>Multi 175</strong></td></tr><tr><td>Punching</td><td>Maximum Capacity</td><td>1 1/4 x 1/2</td><td>1 x 3/4</td><td>1 1/8 x 3/4</td><td>1 1/16 x 1</td><td>1 3/8 x 1</td><td>1 1/2 x 1</td><td>1 1/2 x 1 1/4</td></tr><tr><td></td><td>Diameter x Thickness</td><td>2 1/4 x 5/16</td><td>2 1/4 x 11/32</td><td>2 1/4 x 3/8</td><td>2 1/4 x 1/2</td><td>2 1/4 x 5/8</td><td>2 1/4 x 5/8</td><td>2 1/4 x 7/8</td></tr><tr><td></td><td>Stroke Length</td><td>2 1/8</td><td>2 1/8</td><td>2 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Standard Throat Depth</td><td>12</td><td>12</td><td>12</td><td>14</td><td>14</td><td>14</td><td>25</td></tr><tr><td></td><td>Deep Throat Model</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td></tr><tr><td></td><td>Largest Hole – Std. Equipment</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td></tr><tr><td></td><td>Largest Hole (Optional)</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>9</td><td>9</td><td>9</td></tr><tr><td></td><td>Maximum Section</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>15</td></tr><tr><td></td><td>Working Height</td><td>40 1/2</td><td>40 1/2</td><td>42 5/16</td><td>40 5/16</td><td>41 1/2</td><td>41 1/2</td><td>44 5/8</td></tr><tr><td>Shearing</td><td>Flat Bar – Maximum Thickness</td><td>9 x 3/4</td><td>12 x 3/4</td><td>12 x 3/4</td><td>15 x 3/4</td><td>15 x 1</td><td>16 x 1</td><td>15 x 1 3/16</td></tr><tr><td></td><td>Flat Bar – Maximum Width</td><td>14 3/4 x 3/8</td><td>14 3/4 x 5/8</td><td>18 x 5/8</td><td>18 3/4 x 5/8</td><td>24 x 5/8</td><td>23 x 3/4</td><td>24 x 3/4</td></tr><tr><td></td><td>Angle Flange Trim – Max. 45°</td><td>4 x 5/8</td><td>4 x 5/8</td><td>4 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Angle Cutting</td><td>90° Cut</td><td>5 3/16 x 1/2</td><td>5 3/16 x 1/2</td><td>6 x 1/2</td><td>6 x 5/8</td><td>6 x 3/4</td><td>6 x 3/4</td><td>8 x 3/4</td></tr><tr><td></td><td>45° Mitre (true int./ext.)</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td></tr><tr><td></td><td>Working Height</td><td>44 1/2</td><td>44 1/2</td><td>45 1/2</td><td>45 1/2</td><td>45 5/8</td><td>45 5/8</td><td>45 5/8</td></tr><tr><td>Section Cutting</td><td>Round/Square</td><td>1 3/4</td><td>1 3/4</td><td>1 3/4</td><td>2</td><td>2 1/8</td><td>2 1/8</td><td>2 1/2 / 2 1/2</td></tr><tr><td></td><td>Channel/Beam (**) (*)</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>6 x 3 1/2</td><td>8 x 4</td><td>8 x 4</td><td>12 x 5</td></tr><tr><td></td><td>Tee (**) (*)</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>4 x 1/2</td><td>5 x 1/2</td><td>5 x 1/2</td><td>6 x 5/8</td></tr><tr><td>Notching</td><td>Material Thickness</td><td>3/8</td><td>3/8</td><td>1/2</td><td>1/2</td><td>1/2</td><td>1/2</td><td>5/8</td></tr><tr><td></td><td>Width – Rectangle</td><td>1 3/4</td><td>1 3/4</td><td>1 1/2</td><td>2</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td></tr><tr><td></td><td>Depth – Rectangle</td><td>3 1/2</td><td>3 1/2</td><td>3 1/2</td><td>4</td><td>4</td><td>4</td><td>4</td></tr><tr><td></td><td>Depth – Vee (*)</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td><td>2 3/4</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Angle Flange – Maximum Profile</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 3/8 x 9/16</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Corner Notch (*)</td><td>Maximum Capacity</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td></tr><tr><td>Tube Notch (*)</td><td>Maximum Outside Diameter</td><td>3 1/4</td><td>3 1/4</td><td>3 1/4</td><td>4 1/4</td><td>4 1/4</td><td>4 1/4</td><td>6 1/2</td></tr><tr><td>Bending (*)</td><td>Maximum Capacity (Bar Bend)</td><td>10 x 1/2</td><td>10 x 1/2</td><td>10 x 5/8</td><td>10 x 3/4</td><td>10 x 7/8</td><td>10 x 7/8</td><td>10 x 1</td></tr><tr><td></td><td>Maximum Capacity (Sheet Bend)</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>28 x 1/8</td><td>27 x 1/4</td></tr><tr><td>Punching at Notching Station</td><td>Throat Depth</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td></tr><tr><td></td><td>Maximum Capacity</td><td>1 1/2 x 1/4</td><td>1 1/2 x 5/16</td><td>1 1/2 x 5/16</td><td>1 1/2 x 3/8</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td></tr><tr><td>Technical Data</td><td>Motorpower (HP)</td><td>7,5</td><td>7,5</td><td>10</td><td>10</td><td>10</td><td>12,5</td><td>15</td></tr><tr><td></td><td>Net Weight – Standard Throat (lbs)</td><td>3,462</td><td>3,572</td><td>4,245</td><td>5,292</td><td>6,836</td><td>6,968</td><td>12,679</td></tr><tr><td></td><td>Gross Weight – Standard Throat (lbs)</td><td>3,737</td><td>3,837</td><td>4,619</td><td>5,821</td><td>7,431</td><td>7,563</td><td>13,164</td></tr><tr><td></td><td>Machine Dimensions (L x W x H) (“)</td><td>65 x 28 x 72</td><td>65 x 28 x 72</td><td>69 x 28 x 72</td><td>75 x 31 x 75</td><td>79 x 32 x 80</td><td>79 x 32 x 80</td><td>106 x 44 x 85</td></tr><tr><td></td><td>Packed Dimensions (L x W x H) (“)</td><td>69 x 34 x 79</td><td>69 x 34 x 79</td><td>75 x 34 x 79</td><td>81 x 37 x 82</td><td>79 x 32 x 80</td><td>85 x 38 x 87</td><td>112 x 50 x 95</td></tr></tbody></table>

Specifications

PUNCHING
Rated capacity 95 Short tons
Max. Capacities 1 3/8” hole in 3/4”
Diameter x thickness 2 1/8” hole in 1/2”
Maximum stroke length 3 1/8”
Speed over ¾” travel 56 (28 cycles)
Largest hole to be punched 6”
Maximum section flange punch 12”
Standard throat depth 14”
Working height 41 ½”

SHEARING
Flat bar 15” x 3/4”
Alternatively 18 7/8” x 5/8”
Blade length 19”
Angle flange trim 5” leg x 5/8”
Working height 35”

ANGLE CUTTING
At 90 Degrees 6” x 6” x ¾”
At 45 Degrees 3” x 3” x 3/8”
Working height 45 1/2”

SECTION CUTTING
Round or square bar 2”
Channel / I beam 6 3/8” x 3 ½”
Tee 4” x ½”

NOTCHING
Material thickness ½”
Width 2”
Depth Vee – Rect. 2 3/4” – 4”
Angle flange 4” x ½”
Working height 35”

Dimensions
Motor + voltage 10 HP – 575V/3ph/60Hz
Approx. weight 5,775 Lb
Machine dimensions 74” x 31” x 76”
