Kingsland Multi 80 (Stock)

Have one to sell?

519-220-1429

sales@ferricmachinery.com

ConditionNew

Quantity

1 available

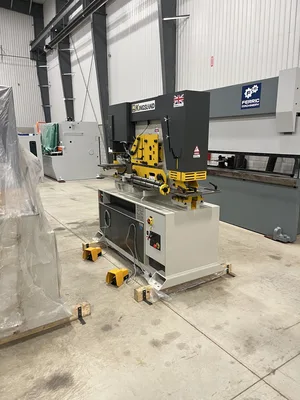

KINGSLAND MULTI 80 Ironworker Machines | FERRIC Machinery, Inc. (1)

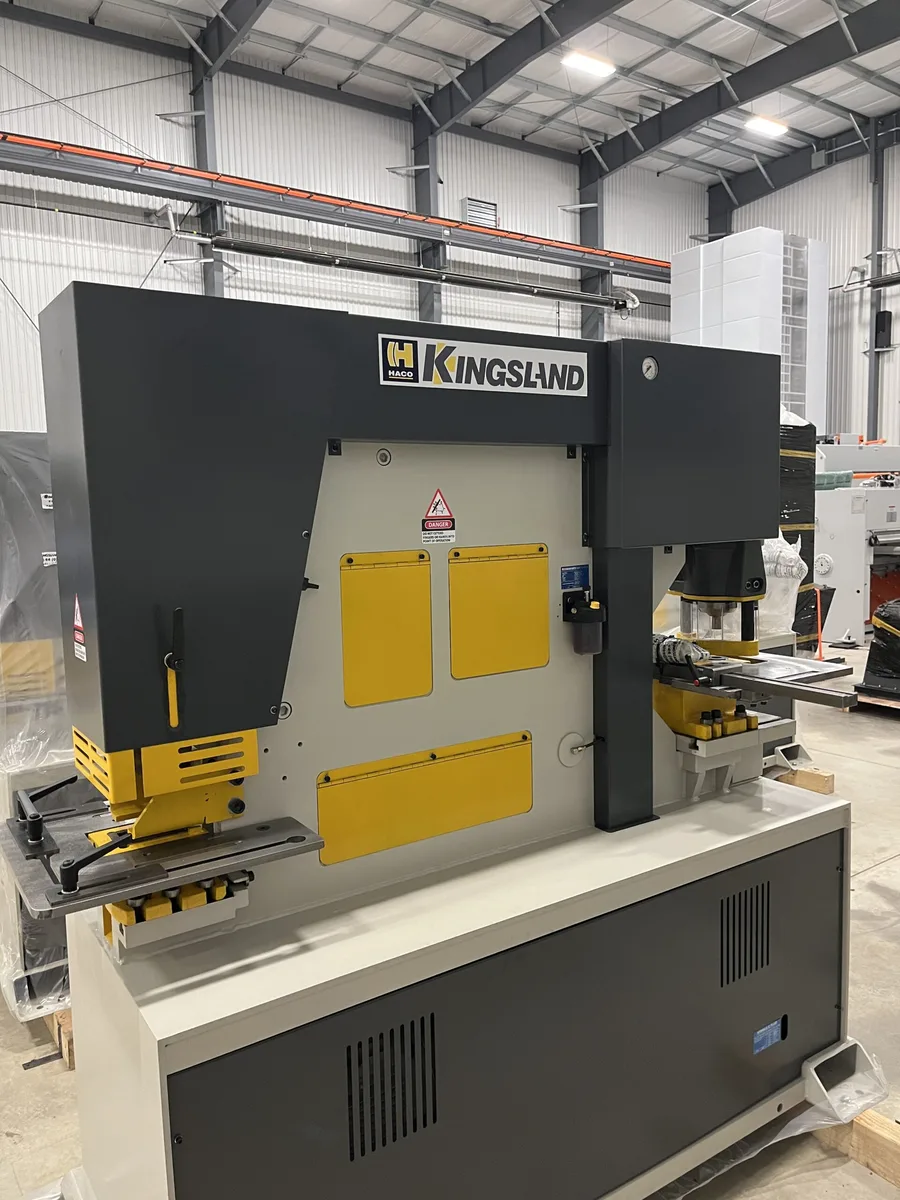

KINGSLAND MULTI 80 Ironworker Machines | FERRIC Machinery, Inc. (2)

KINGSLAND MULTI 80 Ironworker Machines | FERRIC Machinery, Inc.

New

Have one to sell?

Overview

Type:

Ironworker Machines

Manufacturer:

KINGSLAND

Model:

MULTI 80

Condition:

New - In-Stock

Stock #:

3768

Status:

For Sale

Description

80 Ton PUNCHING STATION for punching: plate,
flat bars, angle and flanges of channel and joists
-With additional tooling, ability to punch large holes up to 6”
-Removable table block for punching flanges of channel or
Beam can be punched up to 1 ½” maximum capacity.
-Additional tooling in this versatile workstation can be
provided: bending unit – tube notching
(2)SECTION CUTTING STATION for round and square bar.
(3)ANGLE CUTTING STATION this station provides large capacity anglecutting at 90 Degree. Special feature: 45 Degree mitre cutting.
(4)SHEARING UNIT for flat bars: max: 12” x 3/4”, alternatively: 18”x5/8”.A plate support table with adjustable stops is fitted to allow accurateand easy feeding.
(5)RECTANGULAR NOTCHING UNIT with adjustable 4 edge blades.
All Multi models are standard delivered with a 39” Touch & Cut ruled length stop

Adjustable repetition support tables with stops, at
Shearing – Punching – Notching station.
•Hydraulic pressure inching allows the machine to be stopped at anyposition, enabling safe and accurate tool setting and work positioning.
•Adjustable stroke length at all stations through limit switches at both endsof the machine.
•Central one shot lubrication system.
•Blades, made of high grade tool steel
•Safety guards at all work stations.
•Overload protection through high pressure relief valve.
•Easily adjustable, sturdy hold down at each workstation.
•Two remote foot pedals.
•Solid, robust engineered machine frame.
•Instruction manual and spare parts list.
•Filled oil tank
•Service tool kit
•One year warranty on parts excl. knives & consumables.

Long Description

<table><tbody><tr><td></td><td>Multi 60</td><td>Multi 70</td><td>Multi 80</td><td>Multi 95</td><td>Multi 125</td><td>Multi 140</td><td>Multi 175</td></tr><tr><td>Punching</td><td>Maximum Capacity</td><td>1 1/4 x 1/2</td><td>1 x 3/4</td><td>1 1/8 x 3/4</td><td>1 1/16 x 1</td><td>1 3/8 x 1</td><td>1 1/2 x 1</td><td>1 1/2 x 1 1/4</td></tr><tr><td></td><td>Diameter x Thickness</td><td>2 1/4 x 5/16</td><td>2 1/4 x 11/32</td><td>2 1/4 x 3/8</td><td>2 1/4 x 1/2</td><td>2 1/4 x 5/8</td><td>2 1/4 x 5/8</td><td>2 1/4 x 7/8</td></tr><tr><td></td><td>Stroke Length</td><td>2 1/8</td><td>2 1/8</td><td>2 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Standard Throat Depth</td><td>12</td><td>12</td><td>12</td><td>14</td><td>14</td><td>14</td><td>25</td></tr><tr><td></td><td>Deep Throat Model</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td></tr><tr><td></td><td>Largest Hole – Std. Equipment</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td></tr><tr><td></td><td>Largest Hole (Optional)</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>9</td><td>9</td><td>9</td></tr><tr><td></td><td>Maximum Section</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>15</td></tr><tr><td></td><td>Working Height</td><td>40 1/2</td><td>40 1/2</td><td>42 5/16</td><td>40 5/16</td><td>41 1/2</td><td>41 1/2</td><td>44 5/8</td></tr><tr><td>Shearing</td><td>Flat Bar – Maximum Thickness</td><td>9 x 3/4</td><td>12 x 3/4</td><td>12 x 3/4</td><td>15 x 3/4</td><td>15 x 1</td><td>16 x 1</td><td>15 x 1 3/16</td></tr><tr><td></td><td>Flat Bar – Maximum Width</td><td>14 3/4 x 3/8</td><td>14 3/4 x 5/8</td><td>18 x 5/8</td><td>18 3/4 x 5/8</td><td>24 x 5/8</td><td>23 x 3/4</td><td>24 x 3/4</td></tr><tr><td></td><td>Angle Flange Trim – Max. 45°</td><td>4 x 5/8</td><td>4 x 5/8</td><td>4 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Angle Cutting</td><td>90° Cut</td><td>5 3/16 x 1/2</td><td>5 3/16 x 1/2</td><td>6 x 1/2</td><td>6 x 5/8</td><td>6 x 3/4</td><td>6 x 3/4</td><td>8 x 3/4</td></tr><tr><td></td><td>45° Mitre (true int./ext.)</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td></tr><tr><td></td><td>Working Height</td><td>44 1/2</td><td>44 1/2</td><td>45 1/2</td><td>45 1/2</td><td>45 5/8</td><td>45 5/8</td><td>45 5/8</td></tr><tr><td>Section Cutting</td><td>Round/Square</td><td>1 3/4</td><td>1 3/4</td><td>1 3/4</td><td>2</td><td>2 1/8</td><td>2 1/8</td><td>2 1/2 / 2 1/2</td></tr><tr><td></td><td>Channel/Beam (**) (*)</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>6 x 3 1/2</td><td>8 x 4</td><td>8 x 4</td><td>12 x 5</td></tr><tr><td></td><td>Tee (**) (*)</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>4 x 1/2</td><td>5 x 1/2</td><td>5 x 1/2</td><td>6 x 5/8</td></tr><tr><td>Notching</td><td>Material Thickness</td><td>3/8</td><td>3/8</td><td>1/2</td><td>1/2</td><td>1/2</td><td>1/2</td><td>5/8</td></tr><tr><td></td><td>Width – Rectangle</td><td>1 3/4</td><td>1 3/4</td><td>1 1/2</td><td>2</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td></tr><tr><td></td><td>Depth – Rectangle</td><td>3 1/2</td><td>3 1/2</td><td>3 1/2</td><td>4</td><td>4</td><td>4</td><td>4</td></tr><tr><td></td><td>Depth – Vee (*)</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td><td>2 3/4</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Angle Flange – Maximum Profile</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 3/8 x 9/16</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Corner Notch (*)</td><td>Maximum Capacity</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td></tr><tr><td>Tube Notch (*)</td><td>Maximum Outside Diameter</td><td>3 1/4</td><td>3 1/4</td><td>3 1/4</td><td>4 1/4</td><td>4 1/4</td><td>4 1/4</td><td>6 1/2</td></tr><tr><td>Bending (*)</td><td>Maximum Capacity (Bar Bend)</td><td>10 x 1/2</td><td>10 x 1/2</td><td>10 x 5/8</td><td>10 x 3/4</td><td>10 x 7/8</td><td>10 x 7/8</td><td>10 x 1</td></tr><tr><td></td><td>Maximum Capacity (Sheet Bend)</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>28 x 1/8</td><td>27 x 1/4</td></tr><tr><td>Punching at Notching Station</td><td>Throat Depth</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td></tr><tr><td></td><td>Maximum Capacity</td><td>1 1/2 x 1/4</td><td>1 1/2 x 5/16</td><td>1 1/2 x 5/16</td><td>1 1/2 x 3/8</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td></tr><tr><td>Technical Data</td><td>Motorpower (HP)</td><td>7,5</td><td>7,5</td><td>10</td><td>10</td><td>10</td><td>12,5</td><td>15</td></tr><tr><td></td><td>Net Weight – Standard Throat (lbs)</td><td>3,462</td><td>3,572</td><td>4,245</td><td>5,292</td><td>6,836</td><td>6,968</td><td>12,679</td></tr><tr><td></td><td>Gross Weight – Standard Throat (lbs)</td><td>3,737</td><td>3,837</td><td>4,619</td><td>5,821</td><td>7,431</td><td>7,563</td><td>13,164</td></tr><tr><td></td><td>Machine Dimensions (L x W x H) (“)</td><td>65 x 28 x 72</td><td>65 x 28 x 72</td><td>69 x 28 x 72</td><td>75 x 31 x 75</td><td>79 x 32 x 80</td><td>79 x 32 x 80</td><td>106 x 44 x 85</td></tr><tr><td></td><td>Packed Dimensions (L x W x H) (“)</td><td>69 x 34 x 79</td><td>69 x 34 x 79</td><td>75 x 34 x 79</td><td>81 x 37 x 82</td><td>79 x 32 x 80</td><td>85 x 38 x 87</td><td>112 x 50 x 95</td></tr></tbody></table>

Specifications

M80:
PUNCHING
Rated capacity 80 Short tons
Max. Capacities 1 1/8” hole in 3/4”
Diameter x thickness 2 1/4” hole in 3/8”
Maximum stroke length 2 1/8”
Speed over ¾” travel 50 (25 cycles)
Largest hole to be punched 6 3/8”
Maximum section flange punch 12”
Standard throat depth 12”
Working height 42 1/4”

SHEARING
Flat bar 12” x 3/4”
Alternatively 18” x 5/8”
Blade length 18 ½”
Angle flange trim 4” leg x 5/8”
Working height 35”

ANGLE CUTTING
At 90 Degrees 6” x 6” x 1/2”
At 45 Degrees 2 3/4” x 2 3/4” x 3/8”
Working height 45 1/2”

SECTION CUTTING
Round or square bar 1 3/4”
Channel / I beam 5” x 2 ½”
Tee 3 1/2” x ½”

NOTCHING
Material thickness ½”
Width 1 5/8”
Depth Vee – Rect. 2 3/8” – 3 1/2”
Angle flange 4” x 3/8”
Working height 35”
Dimensions
Motor + voltage 10 HP – 575V/3ph/60Hz
Approx. weight 4,290 Lb
Machine dimensions 68” x 29” x 69”
