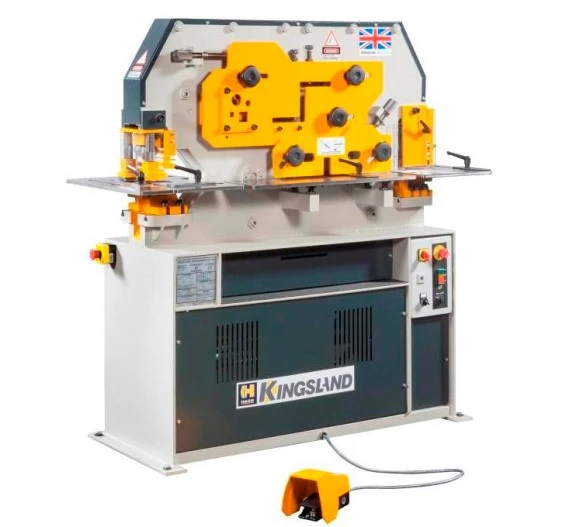

Ironworker : Kingsland Compact 60 (Single Operator) *STOCK*

<!--StartFragment--> <table><tbody><tr><td>Punching</td><td>Maximum Capacity (mm)</td><td>30×15</td></tr><tr><td></td><td>Diameter x Thickness (mm)</td><td>38×12</td></tr><tr><td></td><td>Stroke Length (mm)</td><td>55</td></tr><tr><td></td><td>Standard Throat Depth (mm)</td><td>220</td></tr><tr><td></td><td>Largest Hole (standard)</td><td>38</td></tr><tr><td></td><td>Largest Hole (optional)</td><td>110</td></tr><tr><td></td><td>Maximum Section</td><td>160</td></tr><tr><td></td><td>Working Height (mm)</td><td>940</td></tr><tr><td>SHEARING</td><td>Flat Bar – Max thickness (mm)</td><td>200×20</td></tr><tr><td></td><td>Flat Bar- Max width (mm)</td><td>300×15</td></tr><tr><td></td><td>Angle Flange Trim</td><td>80×10</td></tr><tr><td></td><td>Working Height (mm)</td><td>940</td></tr><tr><td>ANGLE CUTTING</td><td>90° cut</td><td>120×12</td></tr><tr><td></td><td>45° mitre max 45°</td><td>80×8</td></tr><tr><td></td><td>Working Height (mm)</td><td>1140</td></tr><tr><td>SECTION CUTTING</td><td>Round / Square</td><td>40/35</td></tr><tr><td></td><td>Channel / Beam</td><td>102×51</td></tr><tr><td></td><td>Tee</td><td>76×10</td></tr><tr><td>NOTCHING</td><td>Material Thickness (mm)</td><td>10</td></tr><tr><td></td><td>Width – Rectangular (mm)</td><td>42</td></tr><tr><td></td><td>Depth – Rectangular (mm)</td><td>100</td></tr><tr><td></td><td>Depth – Vee (mm)</td><td>60</td></tr><tr><td></td><td>Angle flange</td><td>100×10</td></tr><tr><td></td><td>Working Height (mm)</td><td>940</td></tr><tr><td>CORNER NOTCH</td><td>Maximum Capacity</td><td>150×4</td></tr><tr><td>TUBE NOTCH</td><td>Maximum Diameter (mm)</td><td>60</td></tr><tr><td>BENDING</td><td>Sheet Bending (max capacity)</td><td>150×5</td></tr><tr><td></td><td>Bar Bending on Notch End</td><td>150×12</td></tr><tr><td>NOTCH STATION PUNCHING</td><td>Throat Depth (mm)</td><td>110</td></tr><tr><td></td><td>Maximum Capacity</td><td>20×12</td></tr><tr><td>TECHNICAL DATA</td><td>Motor Power (Kw)</td><td>4</td></tr><tr><td></td><td>Net Weight (Kg)</td><td>1265</td></tr><tr><td></td><td>Gross Weight (Kg)</td><td>1385</td></tr><tr><td></td><td>Machine Dimensions (LxWxH, cm)</td><td>152x59x170</td></tr><tr><td></td><td>Packed dimensions (LxWxH, cm)</td><td>166x77x190</td></tr></tbody></table> <!--EndFragment-->
