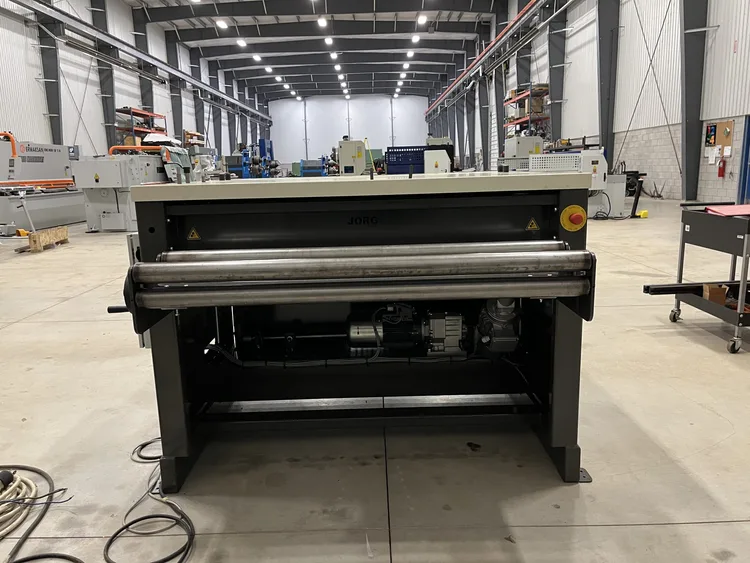

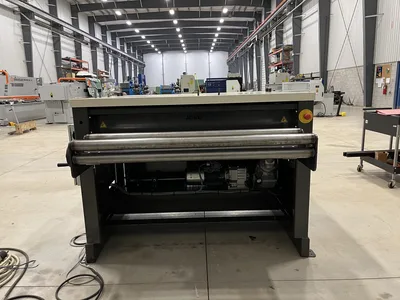

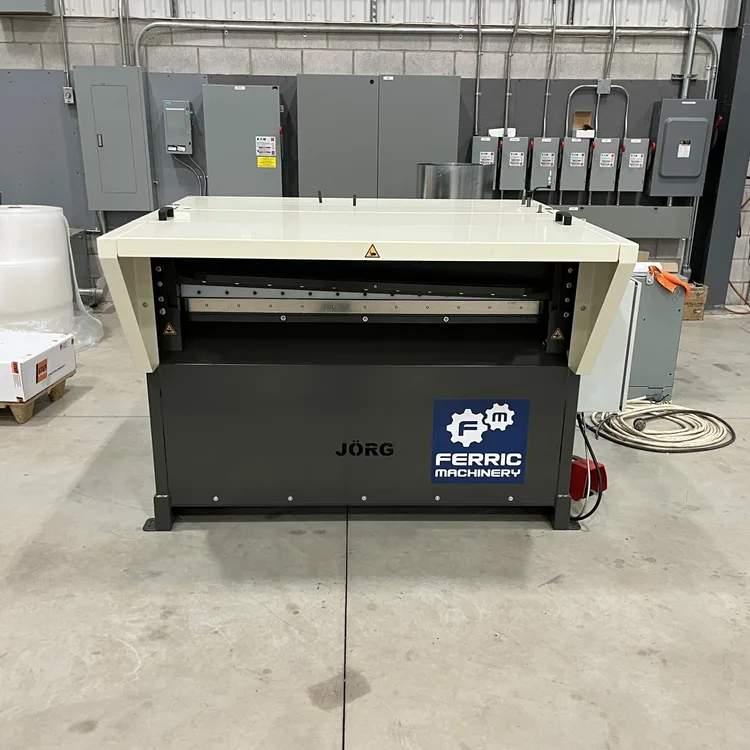

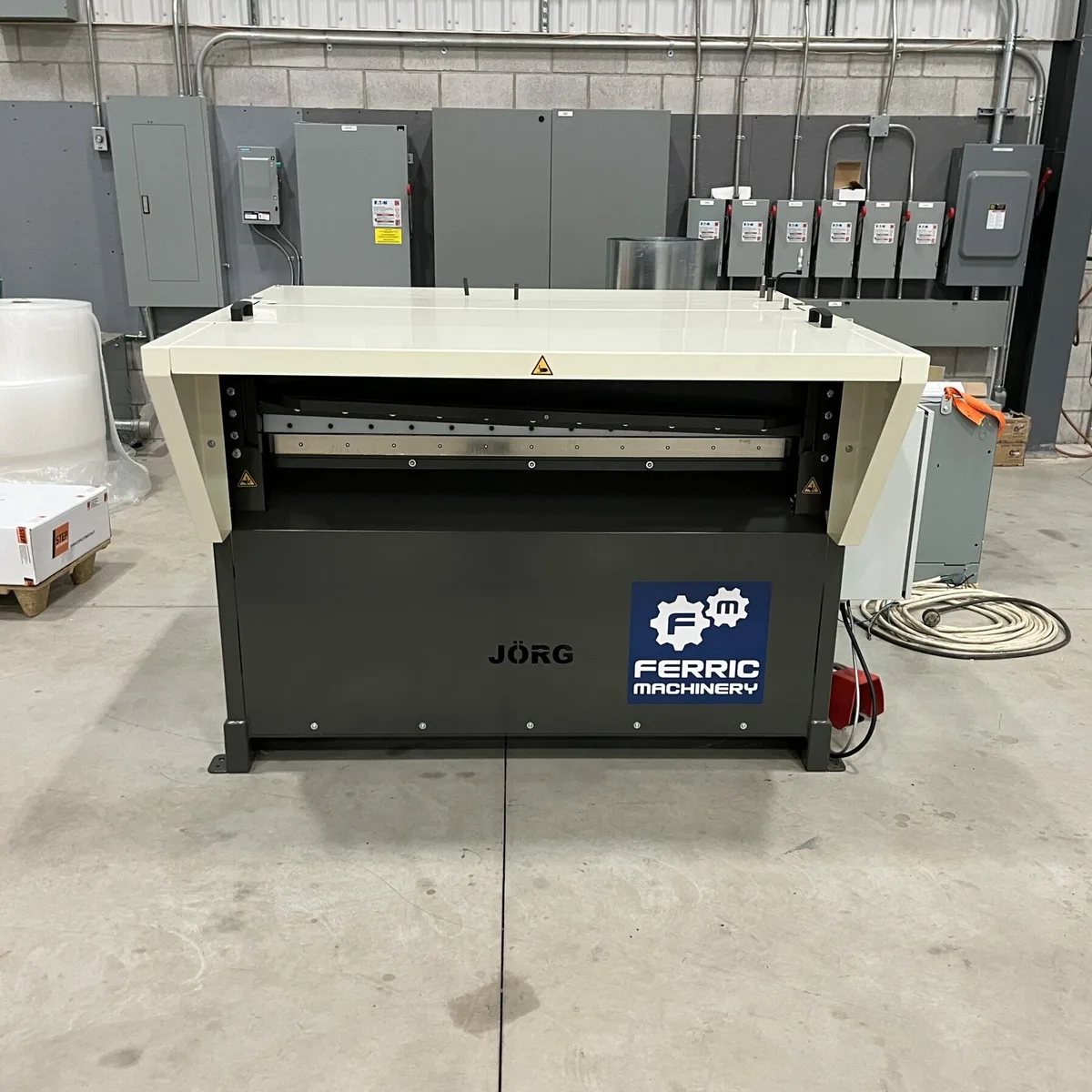

JÖRG 4923 Cut to Length Line – 1270mm x 1.25mm Capacity (Stock)
Have one to sell?
ConditionNew
1 available
New
The JÖRG 4923 is a compact and efficient cut to length line designed for the decoiling, straightening, slitting, and cutting of various metals, including zinc, copper, steel, aluminum, and stainless steel. Its fully welded steel construction and electronic controls ensure durability and precision in metal processing.
STANDARD COMPONENTS
-Straightening unit with 4 rolls and 2 vulcanised feeding rolls, gear driven
PLC-control: easily programmable with 4 program lines for length and quantity
-Stable mechanical guillotine shear
-Length measuring with wheel and encoder
-Coil carrier on castor wheels, with tilting function
Capacity: ................ 1270 x 1,25 mm St. 37
Plate processing speed: .. 12 m/min
Weight: .................. 490 kg
Dimensions: .............. 1780 x 1755 mm
Power supply: ............ 3 x 400 V, 1,5 kW
OPTIONS
Available in 1020 x 1.5mm St.37 as model 4922
Extra coil carrier and decoilers for heavy coils
Controls on right-hand side
Straigthening rolls, hardened
Side guidance, adjusted by hand wheel
Slitting unit with number of slitting knives of choice
Specials on request
