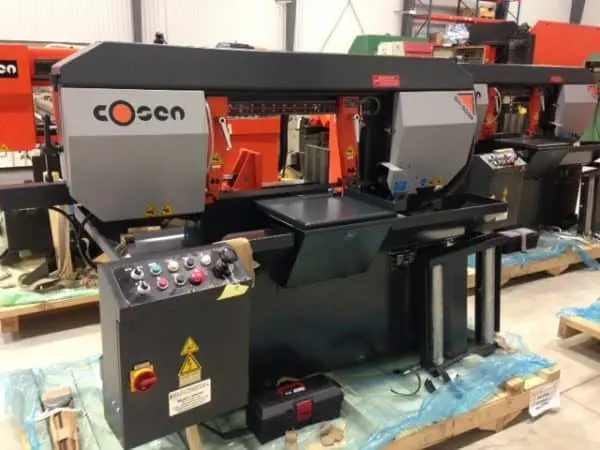

The Cosen SH-500M is a robust semi-automatic horizontal scissor-style bandsaw designed for precision and efficiency in metal cutting. With its mitering capability up to 60°, it offers versatility for various cutting applications.
FEATURES
• Swivel saw head allows miter cutting from 0 degrees to 60 degrees
• Hydraulic cylinder plus precision ground hinge support
• Hardened worm gear for durability
• Hard-stops at , 45, and 60 degrees for quick angle set up
• Blade drive equipped with variable pulley system
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Cast-iron hydraulic vise
• Adjustable down feed control
• Adjustable material stop
• Saw head automatically raises after each cut
Capacity Angle 0 +45 +60
Round Capacity 13" 11.8" 8.6"
Rectangular Capacity 11" x 17.3" 11" x 9.4" 11" x 8.6"
Blade Speed 60Hz: 75, 114, 164, 246 FPM
Blade Size (LxWxT) 13' 7" x 1" x .035"
Blade Motor 3 HP
Coolant Motor 1/8 HP
Coolant Tank Capacity 7.9 gal
Hydraulic Tank Capacity 2.08 gal
Workbed Height 32.6"
Weight 1,980 lbs
Floorspace (LxWxH) 80.5" x 41.6" x 57.8"
