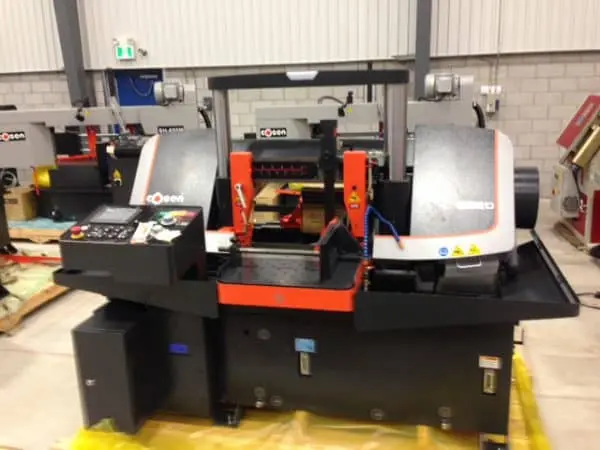

Cosen G-320 Dual Column Automatic Infeed Billet Cutting Saw (STOCK)

Saw blade:

Speed ................. Infinite Invertor controlled 66-328 fpm

Size (LxWxT)........... 166.9 x 1.3 x 0.042”

Tension ............... Hydraulic with automatic blade breakage detection

Guide ................. Interchangeable tungsten carbide

Cleaning .............. Steel wire brush with flexible drive shaft driven by main motor

Motors:

Saw blade ............. 5HP

Hydraulic ............. 1HP

Coolant ............... 1/8HP

Tanks:

Hydraulic ............. 35 Liter

Coolant ............... 75 Liter

Clamping ............. Dual clamp, front/back with CNC feeding

Stroke ............... Single 15.9″

Multi stroke max ..... 999″

Rest piece ........... 2″

Saw head feed Speed .. automatic adjustable from control panel

Saw head ............. opening Automatic

Chip Auger ........... yes, hydraulic driven

Working height ....... 31.1”

Gross Weight ......... 4840 Lbs

Floor space (WxDxH) .. 94.5x86x64.2″

SNC-100 Touch screen program interface:

Auto or Manual working mode

Single or Bundle cutting mode

Trim Cut

Clamping vice & blade monitoring

Blade speed and feeding display

Multiple feed lengths and cuts

Specifications can change without prior notice

Capacities:

Round ................ 12.8”

Square ............... 12.8″

Rect. ................ 12.8×15″

Bundle cut option .... W 7.5 – 11.8″ H 2.7 – 5.5″
