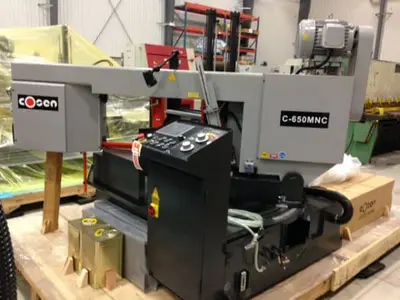

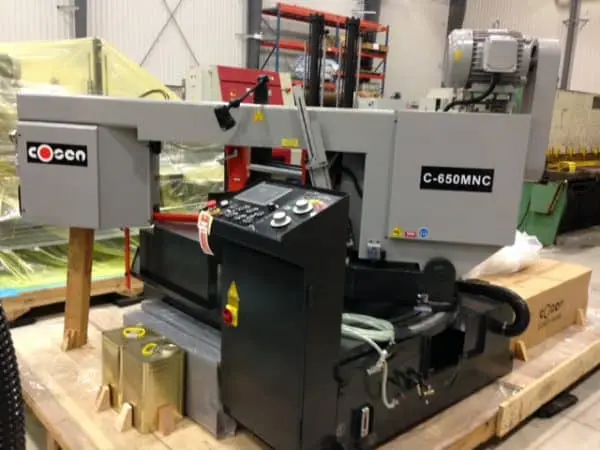

Cosen's C-650MNC is a high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy duty gear box, a 7.5HP drive motor, and a user friendly programmable control for ease of operation. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-650MNC production machine, making it the perfect saw for mass production and fabrication settings.
Allows for straight cutting and miter cutting from 0 to 60 degrees Hydraulic cylinder supports the saw head with ball joint
Gearbox designed to accept high lateral pressure (no thermal distortion) Inverter blade drive system which allows infinitely variable blade speeds
5.7” HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device Cast-iron hydraulic vise
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance Computer controlled multiple indexing up to 999” max length
Capacity Angle 0 +45 +60
Round Capacity 16.5" 16" 10"
Rectangular Capacity 15" x 25.6" 16" x 16" 16" x 10"
Blade Speed 82 - 410 FPM
Blade Size (LxWxT) 17' 5" x 1.5" x .050
Blade Motor 7.5 HP
Coolant Motor 1/4 HP
Coolant Tank Capacity 30 gal
Hydraulic Tank Capacity 17 gal
Workbed Height 29.5"
Weight 6,332 lbs
Floorspace (LxWxH) 123.3" x 112.8" x 76"
