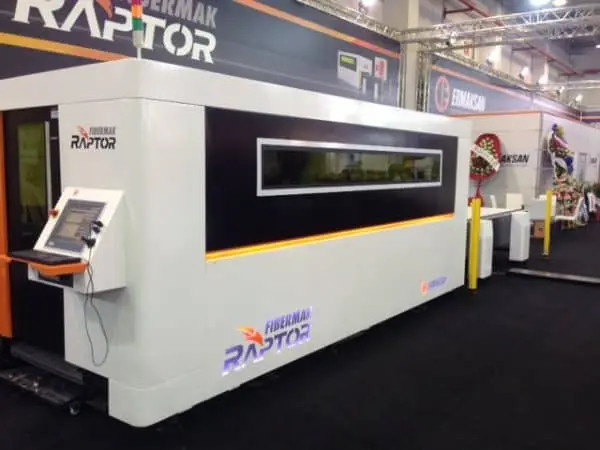

Ermak Raptor 5x10ft – 2KW Laser Cutting Machine (STOCK)
Have one to sell?
ConditionUsed
1 available
Warranty:
One year warranty on all mechanical machine parts.
One year warranty on Prectic cutting head, excluding consumables
Such as nozzles, lenses, ceramics and protection glasses. Damage to the cutting head du to misuse is not under warranty.
IPG resonator: 2 year not included is the spotting (damaging) of the fiber cable due to wrong setup of the cutting parameters or contamination of the cutting head
Contact us for competitive pricing
519-220-1429
– Installation and training by FERRIC- ERMAK technicians
– 2 year warranty on machine parts, excluding consumables
– 2 year warranty on the IPG laser generator, excluding spotting of the fiber cable
– 1 year on Precitec cutting head, excluding damage due to misuse.
Cutting Capacity
Mild Steel ................. 5/8”
Stainless Steel ............ 5/16”
Aluminum ................... 1/4”
Brass-Copper ............... 3/16”
Max. plate size ............ 60 x 120”
Max. material weight ....... 3300 Lbs.
Resonator: ................. 2000 Watt
Travel axes:
X axes ..................... 120”
Y axes ..................... 60”
Z axes ..................... 6”
Acceleration axes:
X,U (dual axes) ............ 0.5G
Y .......................... 0.5G
Z .......................... 2.5G
Traveling speeds:
XY simultaneous ............ 71m/min 2797”/min
X,Y independent ............ 50m/min 1970”/min
Position accuracy: ......... +/- 0,002”/m
Repeatability: ............. +/- 0,001”
Assist gasses: ............. O2 0.3-12 Bar
Nitrogen ................... 0.5-25 Bar
Clean Air .................. 0.5-25 Bar
Cutting head: .............. Precitec Pro-Cutter with auto focus
CNC: ....................... Beckhoff 6202
Network connection ......... Ethernet
CAD/CAM: ................... Lantek Expert with auto nesting
Pallet system: ............. Dual automatic pallet changer
Perimeter safety light guard around pallet changer
Dust collection unit: ...... Ermaksan with Donaldson filters
Average power consumption .. 21 KW
Machine Dimensions: ........ 340”x106”x87”
Weight ..................... 16000 Lbs.
Optional
3KW 4KW
o Mild Steel .............. 3/4″ 3/4″
o Galvanized Steel ........ 3/16″ 3/16″
o Stainless Steel ......... 3/8″ 1/2″
o Aluminum ................ 5/16″ 3/8″
o Brass ................... 1/4″ 1/4″
o Copper .................. 1/4″ 1/4″
