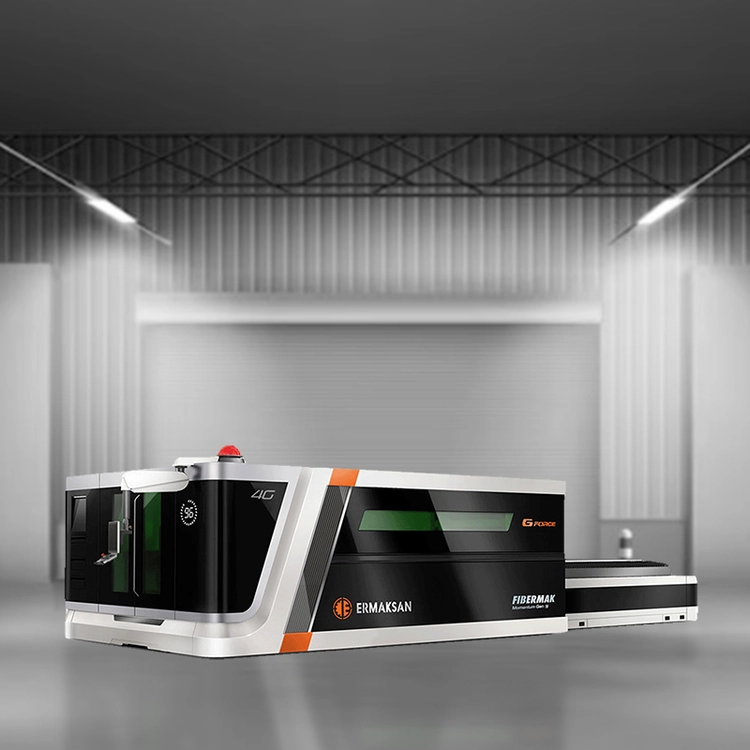

Ermaksan Gen 5 5x10ft 4kW Fiber Laser Cutting Machine
Have one to sell?
ConditionUsed
1 available
The Ermaksan Gen 5 5x10ft 4kW Fiber Laser Cutter is engineered for high-speed, precision metal cutting applications. With a robust 4kW IPG laser source and advanced features, it ensures optimal performance for various fabrication needs.
• Protective shield covers around the machine
• Working camera installed inside the machine to give sufficient information on the cutting and cutting conditions.
• Servo motors for the axes movement (linear optional)
• G-Force option with accelerations up to 2.5G standard up to the 6.5ft wide machines
• Parts and scrap conveyor under the cutting table
• Chemical air dryer
• Automatic load / un-load shuttle table (2 pallets)
• Lantek Expert Cut off-line programming software.
• Network connection : Ethernet
• Low total power consumption
• Chiller unit
• Dust collector
• F.O.B. our Cambridge showroom/warehouse
• Installation and training by FERRIC- ERMAK technicians
• 2 year warranty on machine parts, excluding consumables
• 2 year warranty on the IPG laser generator, excluding spotting of the fiber cable
• 1 year on Precitec cutting head, excluding damage due to misuse.
TECHNICAL SPECIFICATIONS
The Ermak Gen 5 G-Force : 2-3-4-6-8-10-12-15-20 KW
Solid State Fiber Optic Laser Cutting Machine:
– Cutting power IPG YLS compact resonators
– Table size : 5 x 10ft – 6.5 x 13.5ft – 6.5x20ft- custom size
– Precitec: Pro Cutter cutting head with automatic height control & auto focus
– Beckhoff CNC 17” touch screen control and keyboard
o Standard loaded technology tables for different materials and thicknesses
o Works in Metric and Imperial
o Joystick movement of the positioning axes
