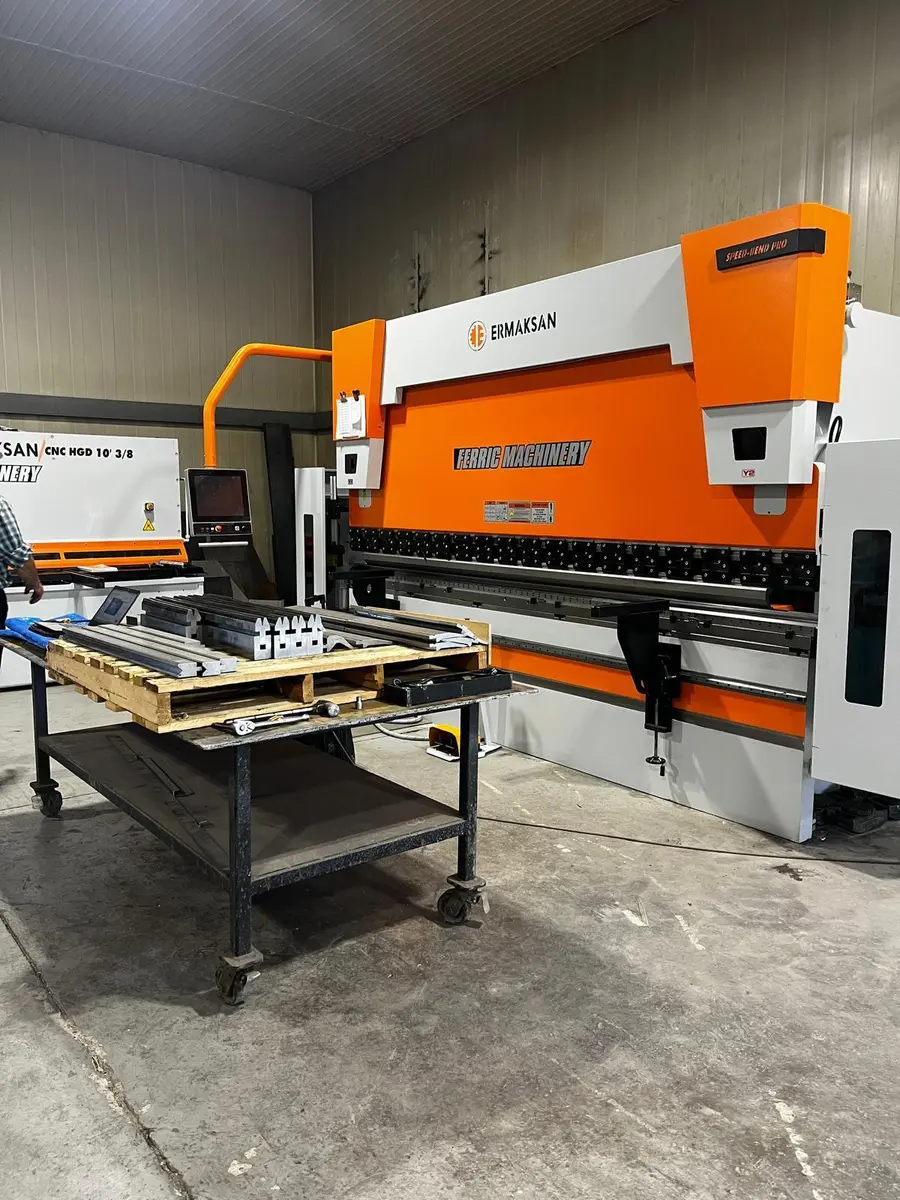

Speed Bend Pro 3100×175 (10ft X 193 Tons)
Sold

Speed Bend Pro 3100×175 (10ft X 193 Tons)

Press Brakes
Manufacturer:
ERMAKSAN
Model:
SPEED BEND PRO 3100 X 175
Condition:
New - In-Stock
Stock #:
3730
• Quick manual release of the top tooling • Top tool clamping for N.A. and European style tooling • Quick release style tool clamps • Goose neck top tool in sections, grounded and flame hardened • European style Multi V bottom tooling grounded and flame hardened • Riser bloc for single V dies • 4 axes CNC controlled back gauge: X-R-Z1-Z2 • CNC controlled motorized crowning table • Two sliding front support arms with rulers and flip stop movable over full working length on guides and bearings with lock and height adj. • Back & side guarding with interlock to the machine control • Laser safe type light guard with interlock to the machine control • 575V/3ph/60Hz
TypeHYDHYD
ControlCNCCNC
Dimensions3450 x 2350 x 2700 mm3450 x 2350 x 2700 mm
Weight10500 kg10500 kg

Capacity : ...................... 175 Metric Ton – 193 US Short Tons

Overall Bending length : ........ 122”

Between Side Frames : ........... 102”

Gap in the side Frames : ........ 16.1”

Daylight opening under clamps: .. (21.5-4.5):17”, Stroke: 10.8”

Cambridge, ON

The easy to ER90 Plus 2D-3D programming touch screen, graphic control, including off line programming software. Delem 66 T offered by competition does not allow 3D programming only shows 3D vies of 2D profile and does not come with off line software as a standard.
