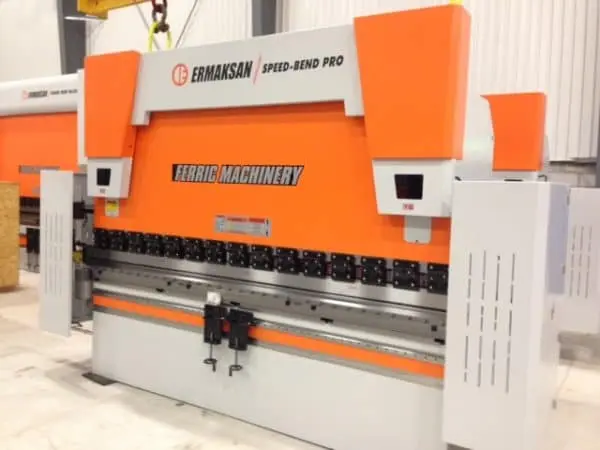

Speed Bend Pro 3100×135 (10ft X 150 Tons)
Have one to sell?
ConditionUsed
1 available
• Quick manual release of the top tooling
• Top tool clamping for N.A. and European style tooling
• Quick release style tool clamps
• Goose neck top tool in sections, grounded and flame hardened
• European style Multi V bottom tooling grounded and flame hardened
• Riser bloc for single V dies
• 4 axes CNC controlled back gauge: X-R-Z1-Z2
• CNC controlled motorized crowning table
• Two sliding front support arms with rulers and flip stop movable over full working length on guides and bearings with lock and height adj.
• Back & side guarding with interlock to the machine control
• Laser safe type light guard with interlock to the machine control
• 575V/3ph/60Hz
Capacity : ...................... 135 Metric Ton – 150 US Short Tons
Overall Bending length : ........ 122”
Between Side Frames : ........... 102”
Gap in the side Frames : ........ 16.1”
Daylight opening under clamps: .. (21.5-4.5):17”, Stroke: 10.8”
Cambridge, ON
The easy to ER90 Plus 2D-3D programming touch screen, graphic control, including off line programming software. Delem 66 T offered by competition does not allow 3D programming only shows 3D vies of 2D profile and does not come with off line software as a standard.
