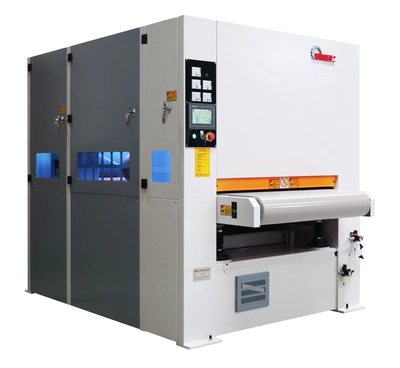

Jonsen SGPGB1000
Have one to sell?
ConditionNew
New
The Jonsen SGPGB1000 is good for the following applications:
• Wide abrasive belt head (G) for general deburring, surface sanding, and finishing
• Planetary abrasive barrel station (P) for deburring and edge rounding of parts coming off laser cutting/stamping/punching/shearing/waterjet machines with sharp edges and minor-moderate burrs
• Second wide abrasive belt head (G) for recreating the straight line graining back to the part surface
• The polishing barrel (B) for final surface and edge smoothening
• Each work station can be used individually or together
• Vacuum table with sticky conveyor belt to process small parts
• Targeting on both inner and outer edge contours, holes, and slots
• Capable of processing laser cut parts with laser film using P workstation only (keeping the surface finish under the laser film)
• Capable of processing minor profiled (formed) parts using P workstation only
Max. working width....... 1000 mm (39.3”)
Working thickness........ 0.1 – 80 mm (0.004”-3.14”) (Note: Processing thinner work pieces may cause premature wear of conveyor belt)
Min. working size........ 80 mm x 80 mm (3.15” x 3.15”) solid surface area
Full width vacuum conveyor
Feed speed............... 1.5-5 m/min (4.9-16.4 ft/min) (variable speed)
Dust extraction required
Weight................... 4000 KG (8800 lbs.) (approx.)
Machine dimensions....... L2869 × W1695 × H2070 mm (L113” x W67” x H81”) (approx.)
Overall dimension (including the wet type dust collector)... L3073 x W3813 x H2662 mm (L121” x 150” x 105”) (approx.)
