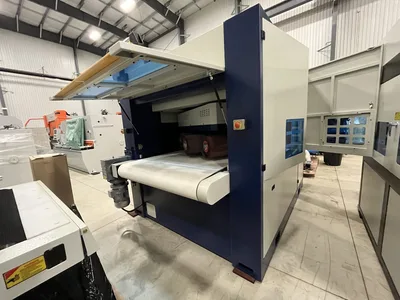

Jonsen SGP1300
Have one to sell?
ConditionNew
New
The Jonsen SGP1300 is good for the following applications:
• Wide abrasive belt head (G) for general deburring, surface sanding, and finishing.

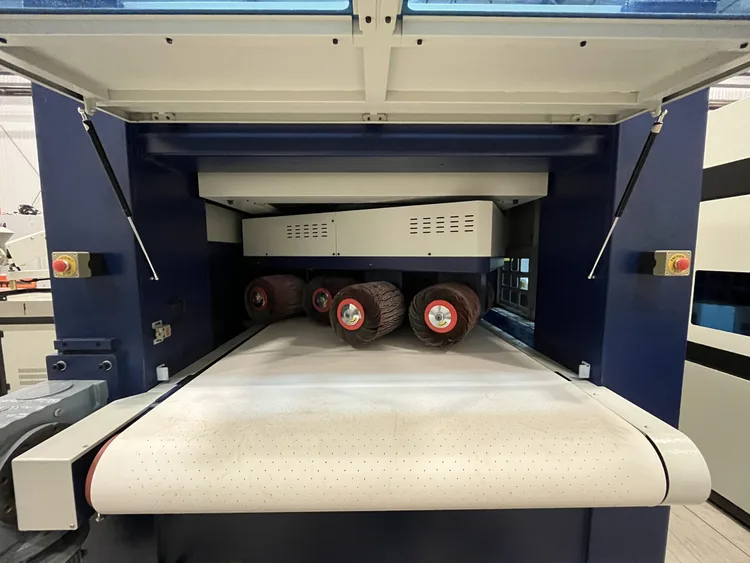

• Planetary abrasive barrel station (P) for deburring and edge rounding of parts coming off laser cutting/stamping/punching/shearing machines with sharp edges and minor-moderate burrs.
• Wide abrasive belt head (G) and planetary abrasive barrel station (P) can be used individually or together.
• Vacuum table with sticky conveyor belt to process small parts.
• Targeting on both inner and outer edge contours, holes, and slots.
• Capable of processing laser cut parts with laser film using P work station only (keeping the surface finish under the laser film)
• Capable of processing minor profiled (formed) parts using P work station only
Max. working width........ 1280 mm (50.4”)
Working thickness......... 0.1 – 50 mm (0.004”-1.97”) (Note: Processing thinner work pieces may cause premature wear of conveyor belt)
Min. working size......... 80 mm x 80 mm (3.15” x 3.15”) solid surface area
Feed speed................ 1.5-5 m/min (4.9-16 ft/min) (variable speed)
Weight.................... 4500 KG (9900 lbs) (approx.)
Machine dimension......... L3450 x W2200 x H2220 mm (L136” x 87” x 87”) (approx.)
Overall dimension (including the wet type dust collector and vacuum generator): L3488 x W4548 x H2605 mm (L137” x 179” x 103”) (approx.)
