Jonsen SGP1000 (Stock)
Have one to sell?
ConditionNew
1 available
New

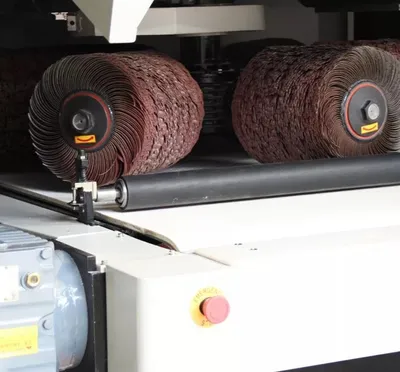

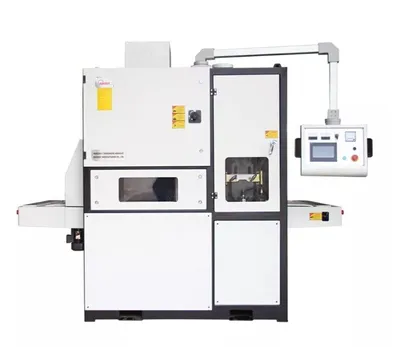

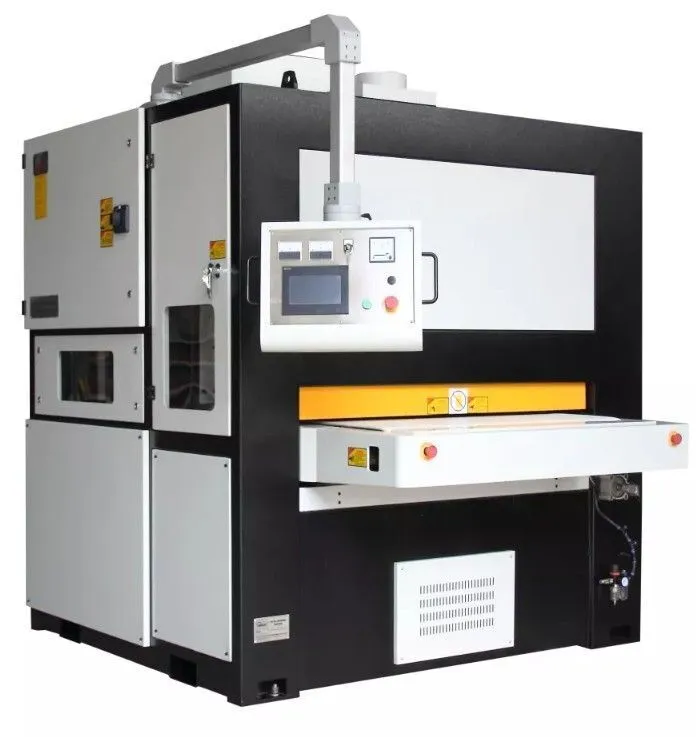

SGP1000 is a very versatile machine model. The wide abrasive belt head is capable of sanding down and removing the bigger burrs on the parts, or using it for whole surface finishing purpose such as No.4 finishing. The planetary abrasive barrel station that consists of 6 abrasive barrels (3 in clockwise rotation, and 3 in counter-clockwise rotation) will further rounds the edges and the contours. It is suitable for parts from laser cutting, punching, shearing, and etc, generally with small/medium burrs and sharp edges. It produces much more consistent result of deburring and edge rounding in significantly higher efficiency than using manual tools. There will be no more metal dust just dispersing into the air, which will be efficiently extracted from the machine.
Max. working width....... 1000 mm (39.3”)
Working thickness........ 0.1 – 50 mm (0.004”-1.97”) (Note: Processing thinner work pieces may cause premature wear of conveyor belt)
Min. working size........ 80 mm x 80 mm (3.15” x 3.15”) solid surface area
Feed speed............... 1-5 m/min (3.2-16.4 ft/min) (variable speed)
Weight................... 3500 KG (7700 lbs.) (approx.)
Machine dimension........ L2450 × W2034 × H2050 mm (L97” x W80” x H81”) (approx.)
Overall dimension (including the wet type dust collector) L2626 x W3484 x H2495 mm (L103” x 137” x 98”) (approx.)-Max. working width:
