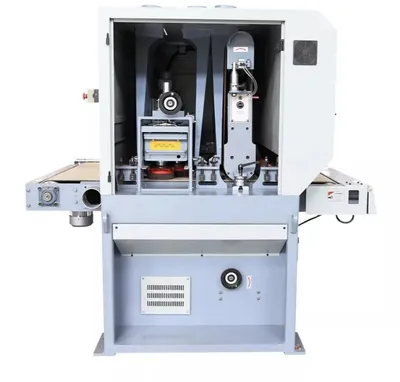

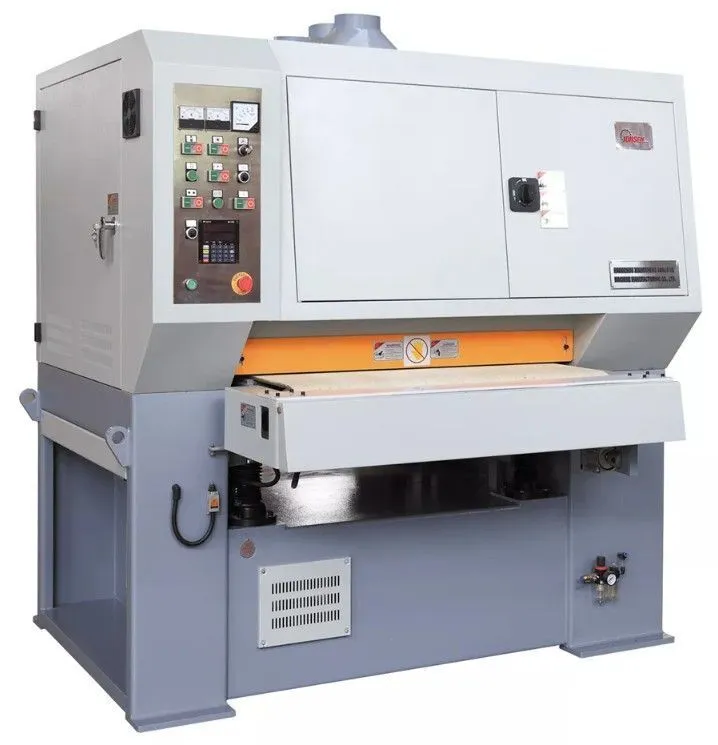

SG1030-JS+D would be best suitable for deburring, edge rounding, as well as surface sanding and finishing of punching, shearing, laser cutting parts. It is equipped with 2 work stations: a wide abrasive belt head and a zig-zag disk brush station.
Dry operation, therefore low production and maintenance cost. The machine usually has a long life which means the return on investment is high
Conveyor feed through type, high efficiency
First wide abrasive belt head for initial sanding, and zig-zag disk brush station for deburring and edge rounding. Each station can work individually or together
Other combinations of work stations are also available
Optional magnetic or vacuum conveyor bed to accommodate and process small parts
Straight forward and user-friendly operation
Working width: 40″
2 station machine.
One belt station (JS), variable rotation speed
One interchangeable brush station (D), variable rotation speed of the brushes
Variable oscillating speed (left-right) of the (D/B) station
D station can be equipped with de-slagging tools or polishing barrel
Heavy Duty feeding belt with adjustable feeding speed
Programmable material thickness automatic go to position of the table height

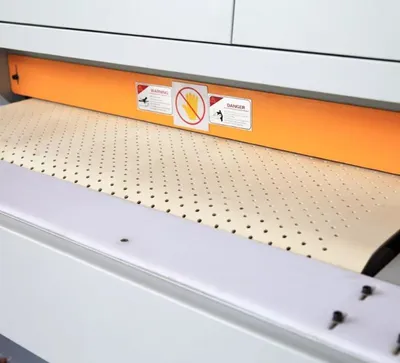

Zoned perforated vacuum area
Vacuum package included
Dust collector (wet type to prevent dust explosions) optional
Maximum working width: 1000mm
Consumables: Disk brushes (various type available), wide abrasive belt
Max Thickness: 1-80mm
Disk brush station power: 7.5kw
Conveyor feeding rate: 2-9m / min
Wide abrasive belt power: 11kw
Disk brush dimension: ɸ165mm
Machine weight: 2800kgs
Machine dimension: 1800x2300x2000mm
