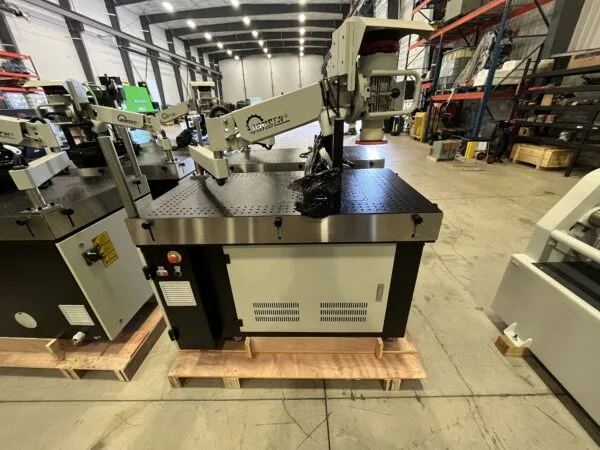

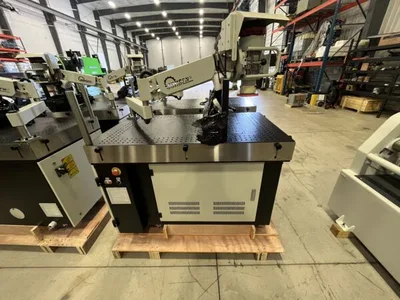

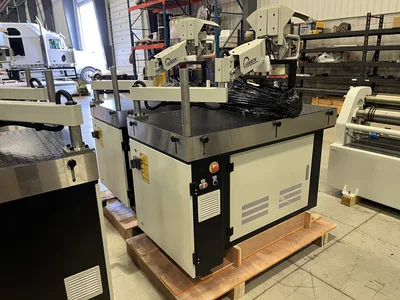

Jonsen SD-H Swing Arm Type
Have one to sell?
ConditionNew
New
Metal swing arm deburring and grinding machine equipped with vacuum table to hold down small parts, and tunable head, fast switching between different kind of abrasive media brushes/disks. Adjustable RPM for the driving motor to meet specific applications.
APPLICATIONS:
• Deburring
• Grinding
• Edge rounding
Dimensions (Approximate)
L * W * H ................. 1500*750*1510 mm
Total power ............... 3.75 KwVacuum pump power (Kw) 3
Grinding head power........ 0.75 Kw
Swing arm reaching span.... 1500mm*360°
Approx. weight............. 450 Kg
Working thickness range.... 1-300 mm
Work station dimension
L * W...................... 1250*700 mm
Vacuum area L*W............ 300*330 mm
Working Voltage............ 230V, 3 phase, 60 Hz
Adjustable rotating speed of the motor... 150-1500 RPM
Minimum work piece size.... 50*50mm
