Jonsen SD-H Swing Arm Type (Stock)
Have one to sell?
ConditionNew
1 available
New

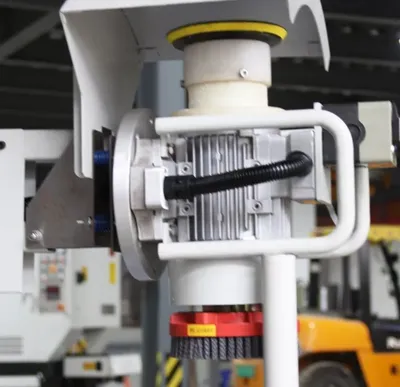

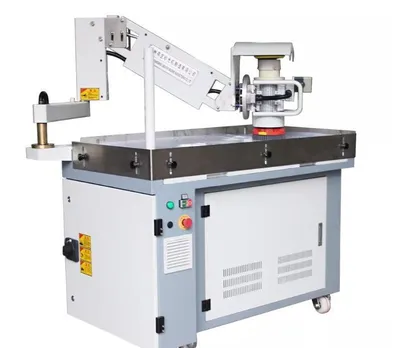

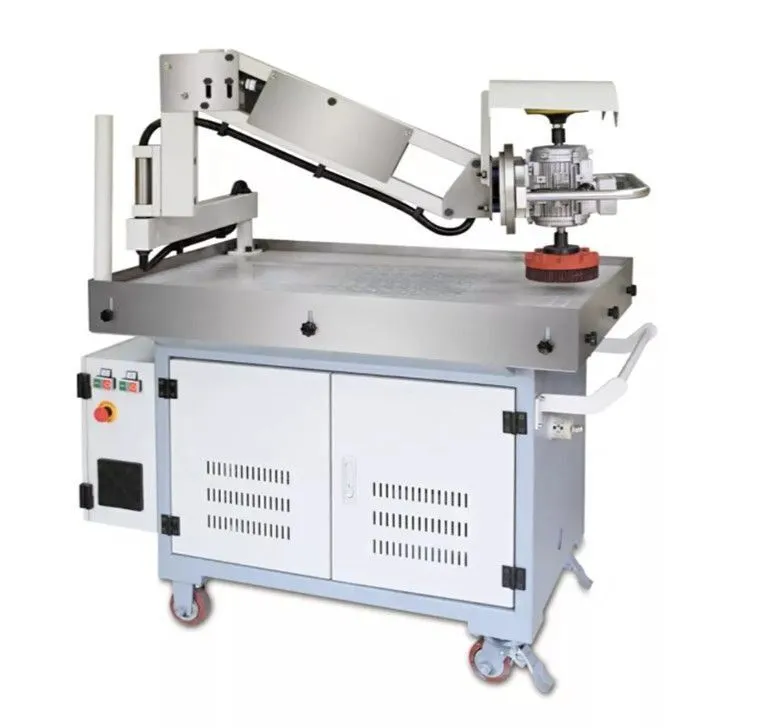

Metal swing arm deburring and grinding machine equipped with vacuum table to hold down small parts, and tunable head, fast switching between different kind of abrasive media brushes/disks. Adjustable RPM for the driving motor to meet specific applications.
APPLICATIONS:
• Deburring
• Grinding
• Edge rounding
Dimensions (Approximate)
L * W * H ................. 1500*750*1510 mm
Total power ............... 3.75 KwVacuum pump power (Kw) 3
Grinding head power........ 0.75 Kw
Swing arm reaching span.... 1500mm*360°
Approx. weight............. 450 Kg
Working thickness range.... 1-300 mm
Work station dimension
L * W...................... 1250*700 mm
Vacuum area L*W............ 300*330 mm
Working Voltage............ 230V, 3 phase, 60 Hz
Adjustable rotating speed of the motor... 150-1500 RPM
Minimum work piece size.... 50*50mm
