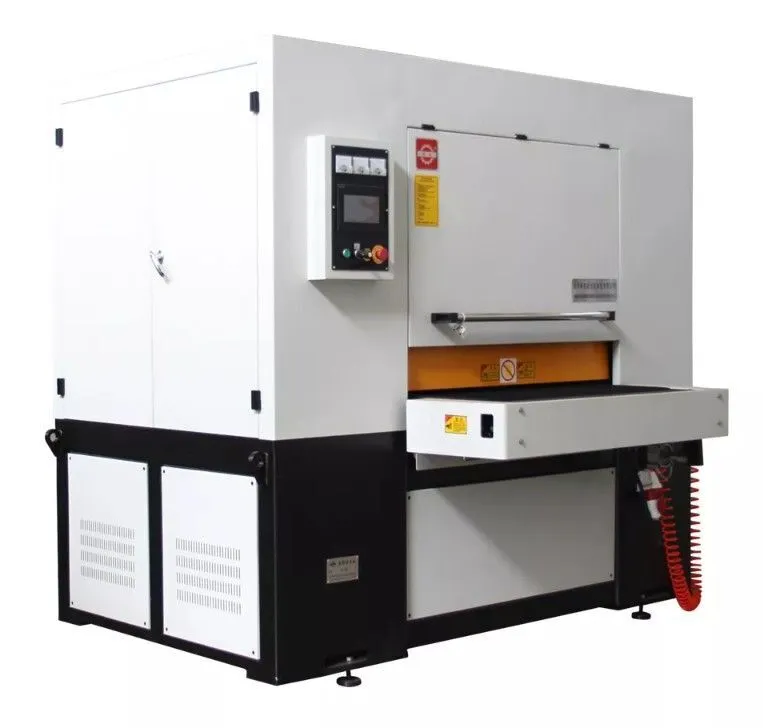

Jonsen SB1000-3TB (Stock)
Have one to sell?
ConditionNew
1 available
New
The Jonsen SB1000-3TB is good for the following applications:
• De-slagging and edge rounding of plasma, high power laser, flame (oxy-fuel) cutting parts.

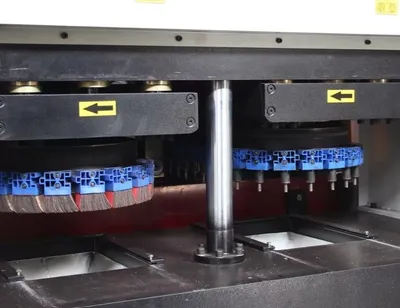

• Dual de-slagging workstations: pin block type crossbelt stations for heavy slag knock off/removal.
• Follow up by abrasive crossbelt station for further parts cleaning, and edge rounding
• Full width magnetic conveyor bed to accommodate small ferrous parts, magnetic strength can be adjusted
• Quick clip on/off type consumable blocks
Max. working width....... 1000 mm (39.3”)
Working thickness........ 3 mm – 80 mm (0.118”-3.15”)
Min. working size........ 100 mm x 100 mm (3.94” x 3.94”) ferrous parts
Feed speed............... 1-5 m/min (3.2-16.4 ft/min) (variable speed)
Weight................... 5,500 KG (12,100 lb) (approx.)
Machine dimension........ L2800×W2160×H2100 mm (110x85x82”) (approx.)
Dust extraction Required
