Ironworker: Kingsland Multi 70/80/95/125/140/175

Have one to sell?

519-220-1429

sales@ferricmachinery.com

ConditionNew

Quantity

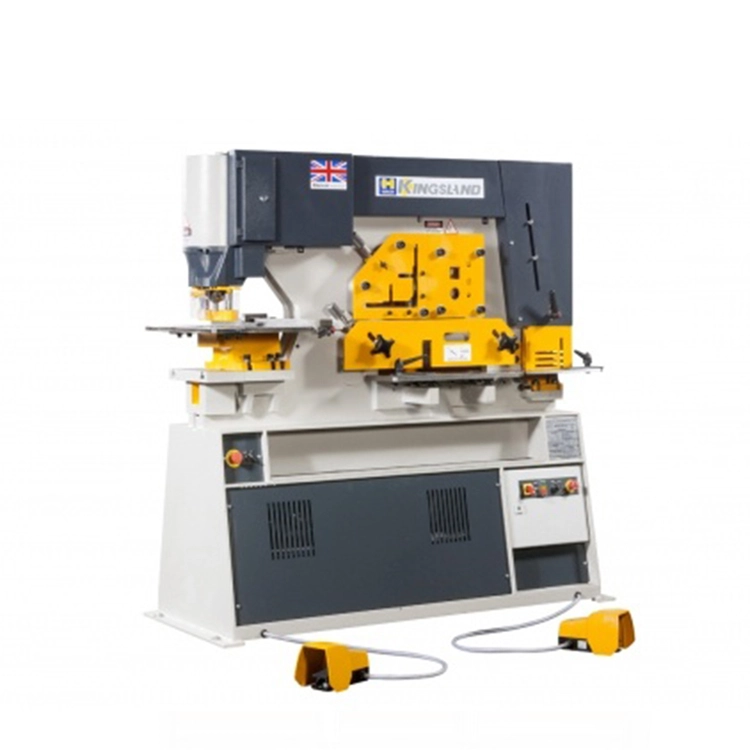

KINGSLAND MULTI 70/80/85/125/140/175 Ironworker Machines | FERRIC Machinery, Inc. (1)

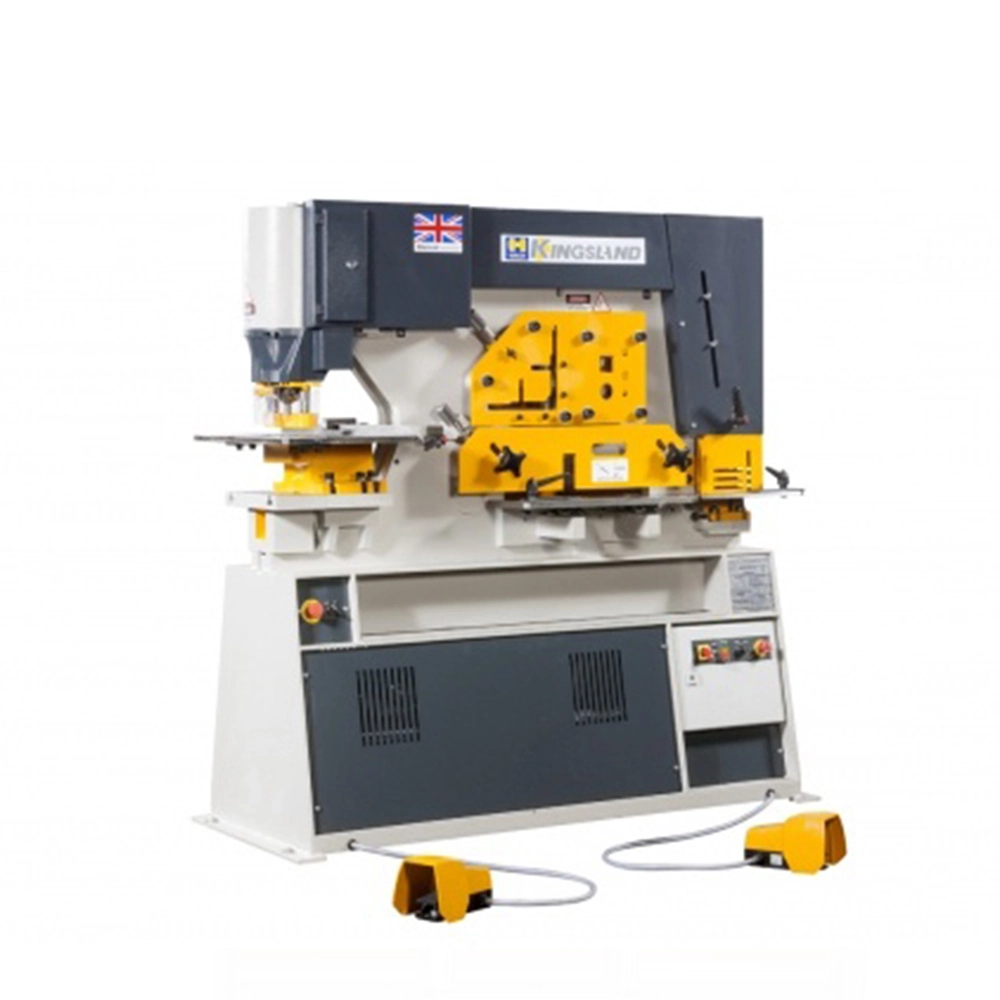

KINGSLAND MULTI 70/80/85/125/140/175 Ironworker Machines | FERRIC Machinery, Inc.

New

Have one to sell?

Overview

Type:

Ironworker Machines

Manufacturer:

KINGSLAND

Model:

MULTI 70/80/85/125/140/175

Condition:

Build To Order

Status:

For Sale

Description

One Ironworker, Multiple Operations

The Kingsland Multi Ironworkers are available in tonnage ranges of 70 to 175 tons. They are well engineered, robust steelworkers, built for a long working life. These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and have easily adjusted hold-downs at all five work stations to safely control the operations.

The Kingsland Multi Ironworker can be used by two operators, with one foot control for the punch end cylinder and one for the shear end cylinder.
• Perfect solution for precise cuts
• Does not require large space
• User-friendly and simple machine operation
• Minimum space requirement with compact design
• Easy installation and training

Long Description

<table><tbody><tr><td></td><td></td><td><strong>Multi 60</strong></td><td><strong>Multi 70</strong></td><td><strong>Multi 80</strong></td><td><strong>Multi 95</strong></td><td><strong>Multi 125</strong></td><td><strong>Multi 140</strong></td><td><strong>Multi 175</strong></td></tr><tr><td>Punching</td><td>Maximum Capacity</td><td>1 1/4 x 1/2</td><td>1 x 3/4</td><td>1 1/8 x 3/4</td><td>1 1/16 x 1</td><td>1 3/8 x 1</td><td>1 1/2 x 1</td><td>1 1/2 x 1 1/4</td></tr><tr><td></td><td>Diameter x Thickness</td><td>2 1/4 x 5/16</td><td>2 1/4 x 11/32</td><td>2 1/4 x 3/8</td><td>2 1/4 x 1/2</td><td>2 1/4 x 5/8</td><td>2 1/4 x 5/8</td><td>2 1/4 x 7/8</td></tr><tr><td></td><td>Stroke Length</td><td>2 1/8</td><td>2 1/8</td><td>2 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Standard Throat Depth</td><td>12</td><td>12</td><td>12</td><td>14</td><td>14</td><td>14</td><td>25</td></tr><tr><td></td><td>Deep Throat Model</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td></tr><tr><td></td><td>Largest Hole – Std. Equipment</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td></tr><tr><td></td><td>Largest Hole (Optional)</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>9</td><td>9</td><td>9</td></tr><tr><td></td><td>Maximum Section</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>15</td></tr><tr><td></td><td>Working Height</td><td>40 1/2</td><td>40 1/2</td><td>42 5/16</td><td>40 5/16</td><td>41 1/2</td><td>41 1/2</td><td>44 5/8</td></tr><tr><td>Shearing</td><td>Flat Bar – Maximum Thickness</td><td>9 x 3/4</td><td>12 x 3/4</td><td>12 x 3/4</td><td>15 x 3/4</td><td>15 x 1</td><td>16 x 1</td><td>15 x 1 3/16</td></tr><tr><td></td><td>Flat Bar – Maximum Width</td><td>14 3/4 x 3/8</td><td>14 3/4 x 5/8</td><td>18 x 5/8</td><td>18 3/4 x 5/8</td><td>24 x 5/8</td><td>23 x 3/4</td><td>24 x 3/4</td></tr><tr><td></td><td>Angle Flange Trim – Max. 45°</td><td>4 x 5/8</td><td>4 x 5/8</td><td>4 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Angle Cutting</td><td>90° Cut</td><td>5 3/16 x 1/2</td><td>5 3/16 x 1/2</td><td>6 x 1/2</td><td>6 x 5/8</td><td>6 x 3/4</td><td>6 x 3/4</td><td>8 x 3/4</td></tr><tr><td></td><td>45° Mitre (true int./ext.)</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td></tr><tr><td></td><td>Working Height</td><td>44 1/2</td><td>44 1/2</td><td>45 1/2</td><td>45 1/2</td><td>45 5/8</td><td>45 5/8</td><td>45 5/8</td></tr><tr><td>Section Cutting</td><td>Round/Square</td><td>1 3/4</td><td>1 3/4</td><td>1 3/4</td><td>2</td><td>2 1/8</td><td>2 1/8</td><td>2 1/2 / 2 1/2</td></tr><tr><td></td><td>Channel/Beam (**) (*)</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>6 x 3 1/2</td><td>8 x 4</td><td>8 x 4</td><td>12 x 5</td></tr><tr><td></td><td>Tee (**) (*)</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>4 x 1/2</td><td>5 x 1/2</td><td>5 x 1/2</td><td>6 x 5/8</td></tr><tr><td>Notching</td><td>Material Thickness</td><td>3/8</td><td>3/8</td><td>1/2</td><td>1/2</td><td>1/2</td><td>1/2</td><td>5/8</td></tr><tr><td></td><td>Width – Rectangle</td><td>1 3/4</td><td>1 3/4</td><td>1 1/2</td><td>2</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td></tr><tr><td></td><td>Depth – Rectangle</td><td>3 1/2</td><td>3 1/2</td><td>3 1/2</td><td>4</td><td>4</td><td>4</td><td>4</td></tr><tr><td></td><td>Depth – Vee (*)</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td><td>2 3/4</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Angle Flange – Maximum Profile</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 3/8 x 9/16</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Corner Notch (*)</td><td>Maximum Capacity</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td></tr><tr><td>Tube Notch (*)</td><td>Maximum Outside Diameter</td><td>3 1/4</td><td>3 1/4</td><td>3 1/4</td><td>4 1/4</td><td>4 1/4</td><td>4 1/4</td><td>6 1/2</td></tr><tr><td>Bending (*)</td><td>Maximum Capacity (Bar Bend)</td><td>10 x 1/2</td><td>10 x 1/2</td><td>10 x 5/8</td><td>10 x 3/4</td><td>10 x 7/8</td><td>10 x 7/8</td><td>10 x 1</td></tr><tr><td></td><td>Maximum Capacity (Sheet Bend)</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>28 x 1/8</td><td>27 x 1/4</td></tr><tr><td>Punching at Notching Station</td><td>Throat Depth</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td></tr><tr><td></td><td>Maximum Capacity</td><td>1 1/2 x 1/4</td><td>1 1/2 x 5/16</td><td>1 1/2 x 5/16</td><td>1 1/2 x 3/8</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td></tr><tr><td>Technical Data</td><td>Motorpower (HP)</td><td>7,5</td><td>7,5</td><td>10</td><td>10</td><td>10</td><td>12,5</td><td>15</td></tr><tr><td></td><td>Net Weight – Standard Throat (lbs)</td><td>3,462</td><td>3,572</td><td>4,245</td><td>5,292</td><td>6,836</td><td>6,968</td><td>12,679</td></tr><tr><td></td><td>Gross Weight – Standard Throat (lbs)</td><td>3,737</td><td>3,837</td><td>4,619</td><td>5,821</td><td>7,431</td><td>7,563</td><td>13,164</td></tr><tr><td></td><td>Machine Dimensions (L x W x H) (“)</td><td>65 x 28 x 72</td><td>65 x 28 x 72</td><td>69 x 28 x 72</td><td>75 x 31 x 75</td><td>79 x 32 x 80</td><td>79 x 32 x 80</td><td>106 x 44 x 85</td></tr><tr><td></td><td>Packed Dimensions (L x W x H) (“)</td><td>69 x 34 x 79</td><td>69 x 34 x 79</td><td>75 x 34 x 79</td><td>81 x 37 x 82</td><td>79 x 32 x 80</td><td>85 x 38 x 87</td><td>112 x 50 x 95</td></tr></tbody></table>

Specifications

Multi 60 Multi 70 Multi 80 Multi 95 Multi 125 Multi 140 Multi 175

Punching Maximum Capacity 1 1/4 x 1/2 1 x 3/4 1 1/8 x 3/4 1 1/16 x 1 1 3/8 x 1 1 1/2 x 1 1 1/2 x 1 1/4

Diameter x Thickness 2 1/4 x 5/16 2 1/4 x 11/32 2 1/4 x 3/8 2 1/4 x 1/2 2 1/4 x 5/8 2 1/4 x 5/8 2 1/4 x 7/8

Stroke Length 2 1/8 2 1/8 2 1/8 3 1/8 3 1/8 3 1/8 3 1/8

Standard Throat Depth 12 12 12 14 14 14 25

Deep Throat Model 25 25 25 25 25 25 25

Largest Hole – Std. Equipment 2 1/4 2 1/4 2 1/4 2 1/4 2 1/4 2 1/4 2 1/4

Largest Hole (Optional) 6 3/8 6 3/8 6 3/8 6 3/8 9 9 9

Maximum Section 12 12 12 12 12 12 15

Working Height 40 1/2 40 1/2 42 5/16 40 5/16 41 1/2 41 1/2 44 5/8

Shearing Flat Bar – Maximum Thickness 9 x 3/4 12 x 3/4 12 x 3/4 15 x 3/4 15 x 1 16 x 1 15 x 1 3/16

Flat Bar – Maximum Width 14 3/4 x 3/8 14 3/4 x 5/8 18 x 5/8 18 3/4 x 5/8 24 x 5/8 23 x 3/4 24 x 3/4

Angle Flange Trim – Max. 45° 4 x 5/8 4 x 5/8 4 x 5/8 5 x 5/8 5 x 5/8 5 x 5/8 5 x 5/8

Working Height 35 35 35 35 35 3/8 35 3/8 35 3/8

Angle Cutting 90° Cut 5 3/16 x 1/2 5 3/16 x 1/2 6 x 1/2 6 x 5/8 6 x 3/4 6 x 3/4 8 x 3/4

45° Mitre (true int./ext.) 2 3/4 x 3/8 2 3/4 x 3/8 2 3/4 x 3/8 3 x 3/8 3 x 3/8 3 x 3/8 3 x 3/8

Working Height 44 1/2 44 1/2 45 1/2 45 1/2 45 5/8 45 5/8 45 5/8

Section Cutting Round/Square 1 3/4 1 3/4 1 3/4 2 2 1/8 2 1/8 2 1/2 / 2 1/2

Channel/Beam (**) (*) 5 3/16 x 2 1/2 5 3/16 x 2 1/2 5 3/16 x 2 1/2 6 x 3 1/2 8 x 4 8 x 4 12 x 5

Tee (**) (*) 3 1/2 x 1/2 3 1/2 x 1/2 3 1/2 x 1/2 4 x 1/2 5 x 1/2 5 x 1/2 6 x 5/8

Notching Material Thickness 3/8 3/8 1/2 1/2 1/2 1/2 5/8

Width – Rectangle 1 3/4 1 3/4 1 1/2 2 2 3/8 2 3/8 2 3/8

Depth – Rectangle 3 1/2 3 1/2 3 1/2 4 4 4 4

Depth – Vee (*) 2 3/8 2 3/8 2 3/8 2 3/4 3 1/8 3 1/8 3 1/8

Angle Flange – Maximum Profile 4 x 3/8 4 x 3/8 4 x 3/8 4 x 1/2 4 x 1/2 4 x 1/2 4 3/8 x 9/16

Working Height 35 35 35 35 35 3/8 35 3/8 35 3/8

Corner Notch (*) Maximum Capacity 10 sq x 5/64 10 sq x 5/64 10 sq x 5/64 10 sq x 5/64 10 sq x 5/64 10 sq x 5/64 10 sq x 5/64

Tube Notch (*) Maximum Outside Diameter 3 1/4 3 1/4 3 1/4 4 1/4 4 1/4 4 1/4 6 1/2

Bending (*) Maximum Capacity (Bar Bend) 10 x 1/2 10 x 1/2 10 x 5/8 10 x 3/4 10 x 7/8 10 x 7/8 10 x 1

Maximum Capacity (Sheet Bend) 24 x 1/4 24 x 1/4 24 x 1/4 24 x 1/4 24 x 1/4 28 x 1/8 27 x 1/4

Punching at Notching Station Throat Depth 5 5 5 5 5 5 5

Maximum Capacity 1 1/2 x 1/4 1 1/2 x 5/16 1 1/2 x 5/16 1 1/2 x 3/8 1 1/2 x 1/2 1 1/2 x 1/2 1 1/2 x 1/2

Technical Data Motorpower (HP) 7,5 7,5 10 10 10 12,5 15

Net Weight – Standard Throat (lbs) 3,462 3,572 4,245 5,292 6,836 6,968 12,679

Gross Weight – Standard Throat (lbs) 3,737 3,837 4,619 5,821 7,431 7,563 13,164

Machine Dimensions (L x W x H) (“) 65 x 28 x 72 65 x 28 x 72 69 x 28 x 72 75 x 31 x 75 79 x 32 x 80 79 x 32 x 80 106 x 44 x 85

Packed Dimensions (L x W x H) (“) 69 x 34 x 79 69 x 34 x 79 75 x 34 x 79 81 x 37 x 82 79 x 32 x 80 85 x 38 x 87 112 x 50 x 95
