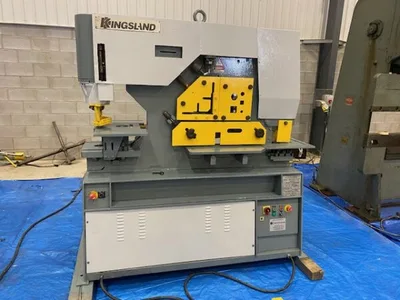

KINGSLAND MULTI 60/70/80/95/125/140/175 Ironworker Machines | FERRIC Machinery, Inc. (1)

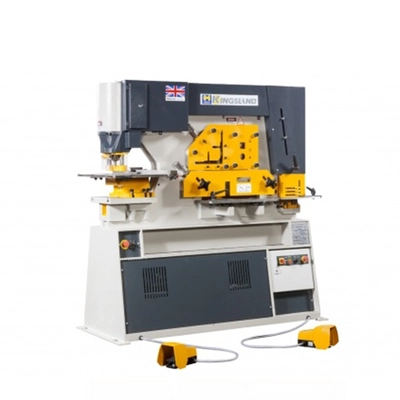

KINGSLAND MULTI 60/70/80/95/125/140/175 Ironworker Machines | FERRIC Machinery, Inc. (2)

KINGSLAND MULTI 60/70/80/95/125/140/175 Ironworker Machines | FERRIC Machinery, Inc.

New

Have one to sell?

Overview

Type:

Ironworker Machines

Manufacturer:

KINGSLAND

Model:

MULTI 60/70/80/95/125/140/175

Condition:

Build To Order

Status:

For Sale

Description

One Ironworker, Multiple Operations

The Kingsland Multi Ironworkers are available in tonnage ranges of 40 to 175 tons. They are well engineered, robust steelworkers, built for a long working life. These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and have easily adjusted hold-downs at all five work stations to safely control the operations.

The Kingsland Multi Ironworker can be used by two operators, with one foot control for the punch end cylinder and one for the shear end cylinder.
• Perfect solution for precise cuts
• Does not require large space
• User-friendly and simple machine operation
• Minimum space requirement with compact design
• Easy installation and training

Long Description

<table><tbody><tr><td></td><td></td><td><strong>Multi 60</strong></td><td><strong>Multi 70</strong></td><td><strong>Multi 80</strong></td><td><strong>Multi 95</strong></td><td><strong>Multi 125</strong></td><td><strong>Multi 140</strong></td><td><strong>Multi 175</strong></td></tr><tr><td>Punching</td><td>Maximum Capacity</td><td>1 1/4 x 1/2</td><td>1 x 3/4</td><td>1 1/8 x 3/4</td><td>1 1/16 x 1</td><td>1 3/8 x 1</td><td>1 1/2 x 1</td><td>1 1/2 x 1 1/4</td></tr><tr><td></td><td>Diameter x Thickness</td><td>2 1/4 x 5/16</td><td>2 1/4 x 11/32</td><td>2 1/4 x 3/8</td><td>2 1/4 x 1/2</td><td>2 1/4 x 5/8</td><td>2 1/4 x 5/8</td><td>2 1/4 x 7/8</td></tr><tr><td></td><td>Stroke Length</td><td>2 1/8</td><td>2 1/8</td><td>2 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Standard Throat Depth</td><td>12</td><td>12</td><td>12</td><td>14</td><td>14</td><td>14</td><td>25</td></tr><tr><td></td><td>Deep Throat Model</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td><td>25</td></tr><tr><td></td><td>Largest Hole – Std. Equipment</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td><td>2 1/4</td></tr><tr><td></td><td>Largest Hole (Optional)</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>6 3/8</td><td>9</td><td>9</td><td>9</td></tr><tr><td></td><td>Maximum Section</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>12</td><td>15</td></tr><tr><td></td><td>Working Height</td><td>40 1/2</td><td>40 1/2</td><td>42 5/16</td><td>40 5/16</td><td>41 1/2</td><td>41 1/2</td><td>44 5/8</td></tr><tr><td>Shearing</td><td>Flat Bar – Maximum Thickness</td><td>9 x 3/4</td><td>12 x 3/4</td><td>12 x 3/4</td><td>15 x 3/4</td><td>15 x 1</td><td>16 x 1</td><td>15 x 1 3/16</td></tr><tr><td></td><td>Flat Bar – Maximum Width</td><td>14 3/4 x 3/8</td><td>14 3/4 x 5/8</td><td>18 x 5/8</td><td>18 3/4 x 5/8</td><td>24 x 5/8</td><td>23 x 3/4</td><td>24 x 3/4</td></tr><tr><td></td><td>Angle Flange Trim – Max. 45°</td><td>4 x 5/8</td><td>4 x 5/8</td><td>4 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td><td>5 x 5/8</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Angle Cutting</td><td>90° Cut</td><td>5 3/16 x 1/2</td><td>5 3/16 x 1/2</td><td>6 x 1/2</td><td>6 x 5/8</td><td>6 x 3/4</td><td>6 x 3/4</td><td>8 x 3/4</td></tr><tr><td></td><td>45° Mitre (true int./ext.)</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>2 3/4 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td><td>3 x 3/8</td></tr><tr><td></td><td>Working Height</td><td>44 1/2</td><td>44 1/2</td><td>45 1/2</td><td>45 1/2</td><td>45 5/8</td><td>45 5/8</td><td>45 5/8</td></tr><tr><td>Section Cutting</td><td>Round/Square</td><td>1 3/4</td><td>1 3/4</td><td>1 3/4</td><td>2</td><td>2 1/8</td><td>2 1/8</td><td>2 1/2 / 2 1/2</td></tr><tr><td></td><td>Channel/Beam (**) (*)</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>5 3/16 x 2 1/2</td><td>6 x 3 1/2</td><td>8 x 4</td><td>8 x 4</td><td>12 x 5</td></tr><tr><td></td><td>Tee (**) (*)</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>3 1/2 x 1/2</td><td>4 x 1/2</td><td>5 x 1/2</td><td>5 x 1/2</td><td>6 x 5/8</td></tr><tr><td>Notching</td><td>Material Thickness</td><td>3/8</td><td>3/8</td><td>1/2</td><td>1/2</td><td>1/2</td><td>1/2</td><td>5/8</td></tr><tr><td></td><td>Width – Rectangle</td><td>1 3/4</td><td>1 3/4</td><td>1 1/2</td><td>2</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td></tr><tr><td></td><td>Depth – Rectangle</td><td>3 1/2</td><td>3 1/2</td><td>3 1/2</td><td>4</td><td>4</td><td>4</td><td>4</td></tr><tr><td></td><td>Depth – Vee (*)</td><td>2 3/8</td><td>2 3/8</td><td>2 3/8</td><td>2 3/4</td><td>3 1/8</td><td>3 1/8</td><td>3 1/8</td></tr><tr><td></td><td>Angle Flange – Maximum Profile</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 3/8</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 x 1/2</td><td>4 3/8 x 9/16</td></tr><tr><td></td><td>Working Height</td><td>35</td><td>35</td><td>35</td><td>35</td><td>35 3/8</td><td>35 3/8</td><td>35 3/8</td></tr><tr><td>Corner Notch (*)</td><td>Maximum Capacity</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td><td>10 sq x 5/64</td></tr><tr><td>Tube Notch (*)</td><td>Maximum Outside Diameter</td><td>3 1/4</td><td>3 1/4</td><td>3 1/4</td><td>4 1/4</td><td>4 1/4</td><td>4 1/4</td><td>6 1/2</td></tr><tr><td>Bending (*)</td><td>Maximum Capacity (Bar Bend)</td><td>10 x 1/2</td><td>10 x 1/2</td><td>10 x 5/8</td><td>10 x 3/4</td><td>10 x 7/8</td><td>10 x 7/8</td><td>10 x 1</td></tr><tr><td></td><td>Maximum Capacity (Sheet Bend)</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>24 x 1/4</td><td>28 x 1/8</td><td>27 x 1/4</td></tr><tr><td>Punching at Notching Station</td><td>Throat Depth</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td><td>5</td></tr><tr><td></td><td>Maximum Capacity</td><td>1 1/2 x 1/4</td><td>1 1/2 x 5/16</td><td>1 1/2 x 5/16</td><td>1 1/2 x 3/8</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td><td>1 1/2 x 1/2</td></tr><tr><td>Technical Data</td><td>Motorpower (HP)</td><td>7,5</td><td>7,5</td><td>10</td><td>10</td><td>10</td><td>12,5</td><td>15</td></tr><tr><td></td><td>Net Weight – Standard Throat (lbs)</td><td>3,462</td><td>3,572</td><td>4,245</td><td>5,292</td><td>6,836</td><td>6,968</td><td>12,679</td></tr><tr><td></td><td>Gross Weight – Standard Throat (lbs)</td><td>3,737</td><td>3,837</td><td>4,619</td><td>5,821</td><td>7,431</td><td>7,563</td><td>13,164</td></tr><tr><td></td><td>Machine Dimensions (L x W x H) (“)</td><td>65 x 28 x 72</td><td>65 x 28 x 72</td><td>69 x 28 x 72</td><td>75 x 31 x 75</td><td>79 x 32 x 80</td><td>79 x 32 x 80</td><td>106 x 44 x 85</td></tr><tr><td></td><td>Packed Dimensions (L x W x H) (“)</td><td>69 x 34 x 79</td><td>69 x 34 x 79</td><td>75 x 34 x 79</td><td>81 x 37 x 82</td><td>79 x 32 x 80</td><td>85 x 38 x 87</td><td>112 x 50 x 95</td></tr></tbody></table>
