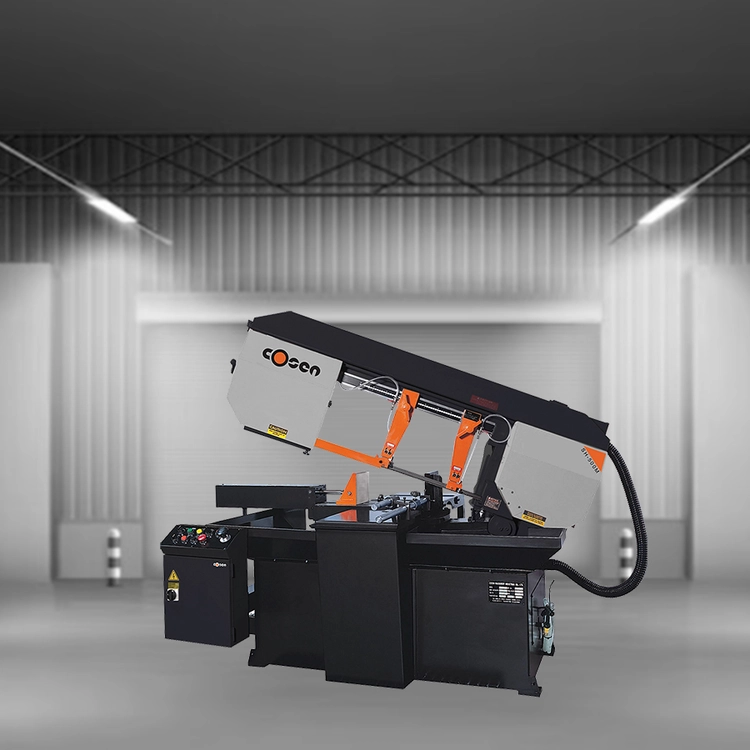

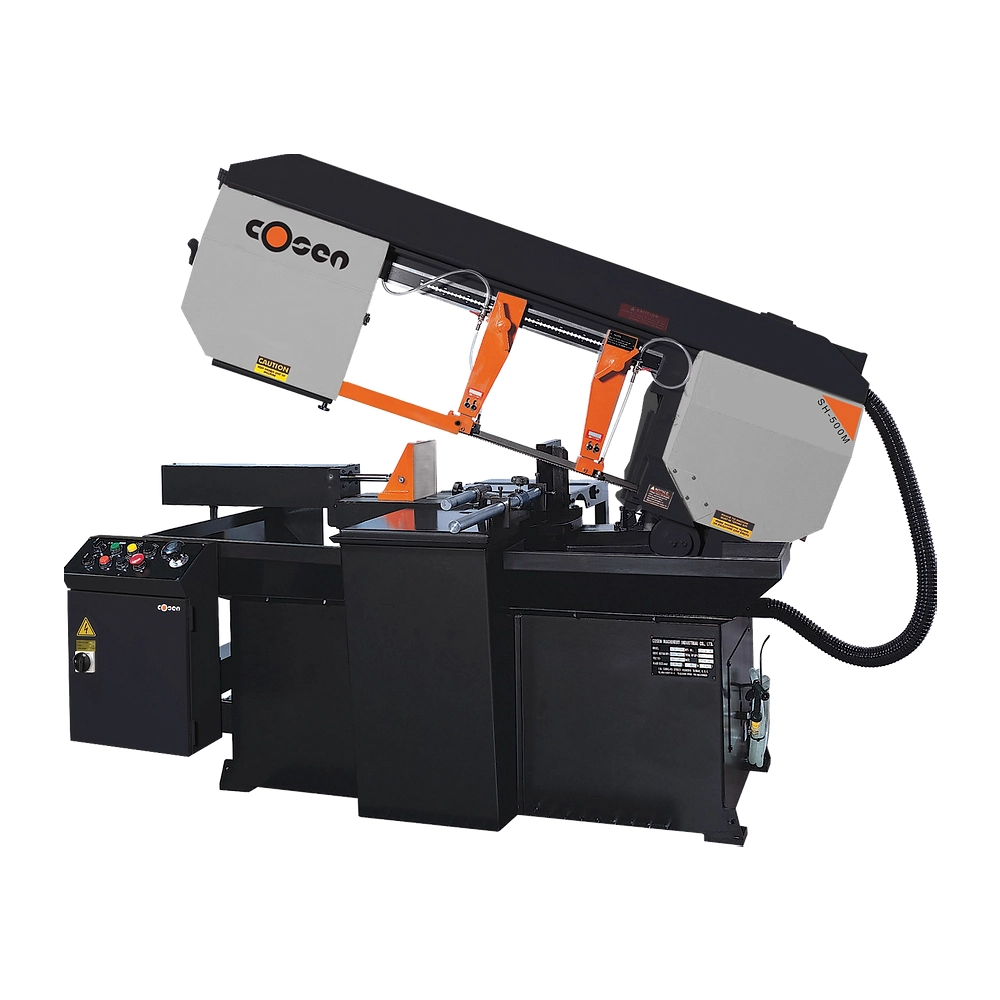

COSEN SH-500M Semi-Automatic Horizontal Bandsaw (Scissor-Style)
Have one to sell?
ConditionNew
New
FEATURES
• Swivel saw head allows miter cutting from 0 degrees to 60 degrees
• Hydraulic cylinder plus precision ground hinge support
• Hardened worm gear for durability
• Hard-stops at , 45, and 60 degrees for quick angle set up
• Blade drive equipped with variable pulley system
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Cast-iron hydraulic vise
• Adjustable down feed control
• Adjustable material stop
• Saw head automatically raises after each cut
Capacity Angle .............. 0° +45° +60°
Rectangular Capacity (HxW) .. 13″ 11.8″ 8.6″
Rectangular Capacity (HxW) .. 11″ x 19.7″ 11″ x 9.4″ 11″ x 8.6″
Blade Speed 60Hz: ........... 75, 114, 164, 246 FPM
Blade Size (LxWxT) .......... 13′ 7″ x 1″ x .035″
Blade Motor ................. 3 HP
Coolant Motor ............... 1/8 HP
Coolant Tank Capacity ....... 7.9 gal
Hydraulic Tank Capacity ..... 2.08 gal
Work-bed Height ............. 32.6″
Weight ...................... 1,980 lbs
Floorspace (LxWxH) .......... 80.5″ x 41.6″ x 57.8″
