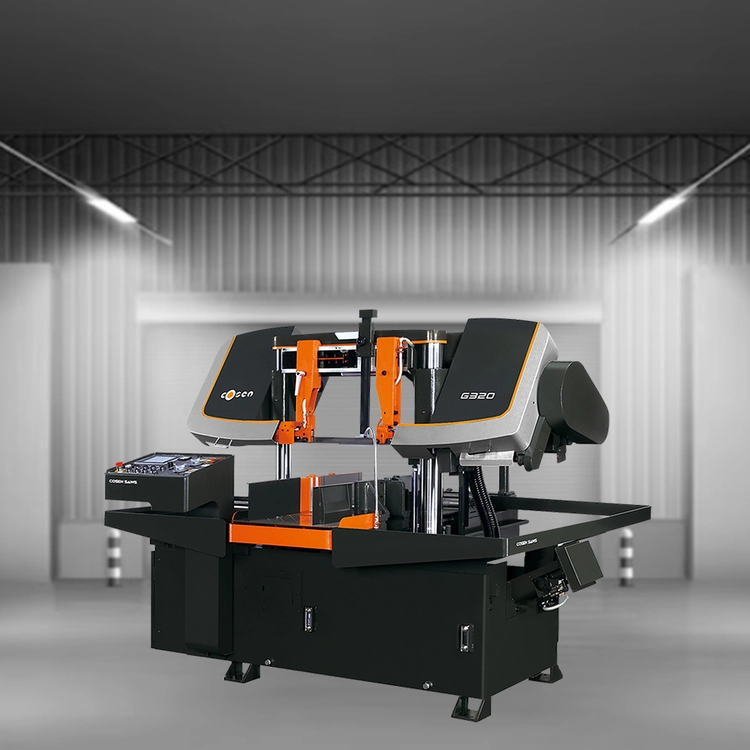

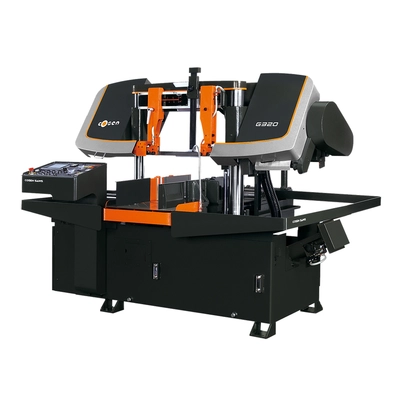

COSEN G-320 Automatic Horizontal Bandsaw (Dual-Column)
Have one to sell?
ConditionNew
New
FEATURES
• Hydraulic dual column design
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Automatic hydraulic blade tensioning device
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Save-A-Blade feature
• Precision feed pressure and feed rate dual valve system for optimal cutting performance
• Computer controlled multiple indexing up to 999” max length
Round Capacity .............. 12.8″
Rectangular Capacity (HxW) .. 12.8″ x 15″
Blade Speed ................. 50 – 328 FPM
Blade Size (LxWxT) .......... 13′ 10.9″ x 1.25″ x .042″
Blade Motor ................. 5 HP
Coolant Motor ............... 1/8 HP
Coolant Tank Capacity ....... 19.5 gal
Hydraulic Tank Capacity ..... 9.1 gal
Workbed Height .............. 31″
Weight ...................... 4,290 lbs
Floorspace (LxWxH) .......... 94.37″ x 88″ x 66.34″
