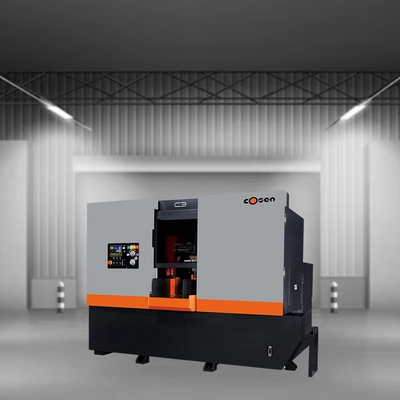

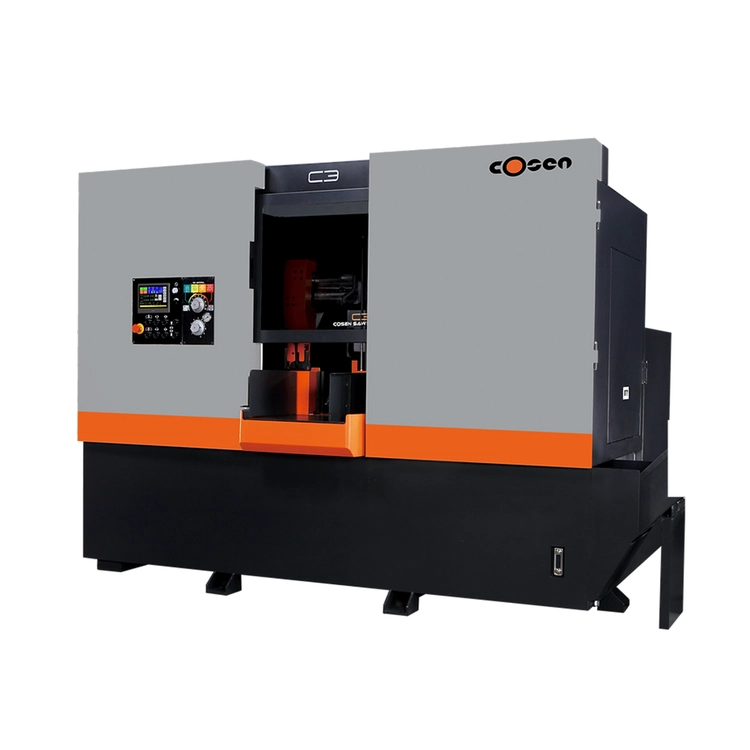

COSEN C-TECH C3 Automatic Horizontal Bandsaw (Dual-Column)
Have one to sell?
ConditionNew
New
FEATURES
• High precision linear guide way design (Hydraulic)
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Automatic hydraulic blade tensioning device
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Vibration damper
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Computer controlled multiple indexing up to 999” max length
Round Capacity .............. 14.2″
Rectangular Capacity (HxW) .. 14.2″ x 15.7″
Blade Speed ................. 66 – 328 FPM
Blade Size (LxWxT) .......... 16′ x 1.5″ x .050″
Blade Motor ................. 7.5 HP
Coolant Motor ............... 1/8 HP
Coolant Tank Capacity ....... 23.8 gal
Hydraulic Tank Capacity ..... 13.2 gal
Workbed Height .............. 32.9″
Weight ...................... 6,613 lbs
Floorspace (LxWxH) .......... 143″ x 91″ x 79.3″
