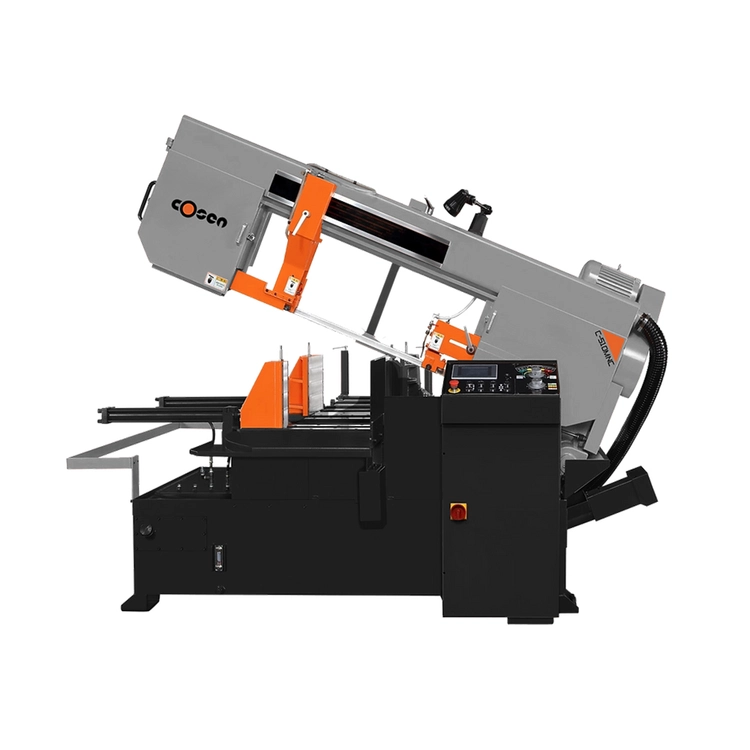

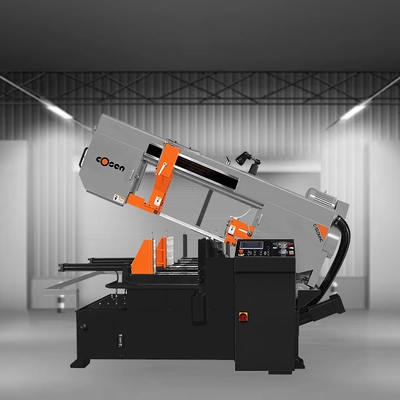

COSEN C-320NC Automatic Horizontal Bandsaw (Dual-Column)
Have one to sell?
ConditionNew
New
FEATURES
• Allows for straight cutting and miter cutting from 0 to 60 degrees
• Hydraulic cylinder supports the saw head with ball joint
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearings provides additional blade support
• Rigid cast-iron guide arms
• Automatic hydraulic blade tensioning device
• Cast-iron hydraulic vise
• Save-A-Blade feature
• Precision feed pressure and feed rate dual valve system for optimal cutting performance
• Computer controlled multiple indexing up to 999” max length
Capacity Angle .............. 0° +45° +60°
Rectangular Capacity (HxW) .. 14″ 13″ 7.9″
Rectangular Capacity (HxW) .. 13″ x 20″ 13″ x 13.7″ 12.5″ x 9″
Blade Speed ................. 50-328 FPM
Blade Size (LxWxT) .......... 16′ 1″ x 1.25″ x .042″
Blade Motor ................. 5 HP
Coolant Motor ............... 1/8 HP
Coolant Tank Capacity ....... 16.1 gal
Hydraulic Tank Capacity ..... 9.5 gal
Work-bed Height ............. 31.4″
Weight ...................... 4,707 lbs
Floorspace (LxWxH) .......... 100.8″ x 107.8″ x 75″
